Dec 15, 2013 - Wingtip Ribs Continued

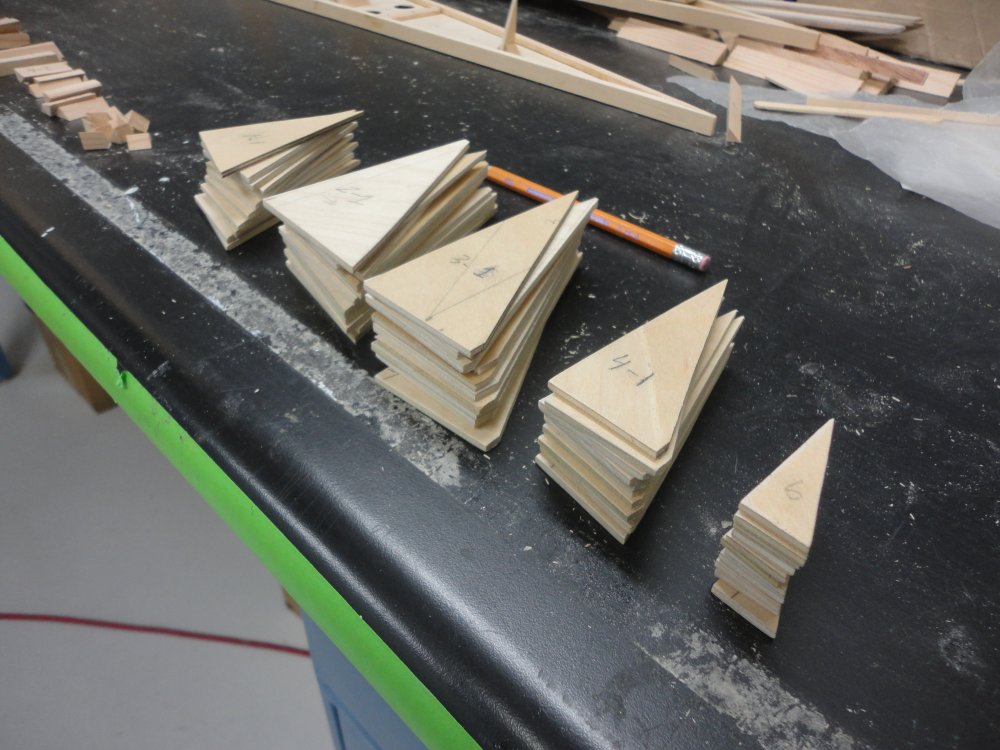

These triangular supports are required to support the horizontal piece on the vertical wingtip rib.  Yes, I too was surprised at how many I had to make.

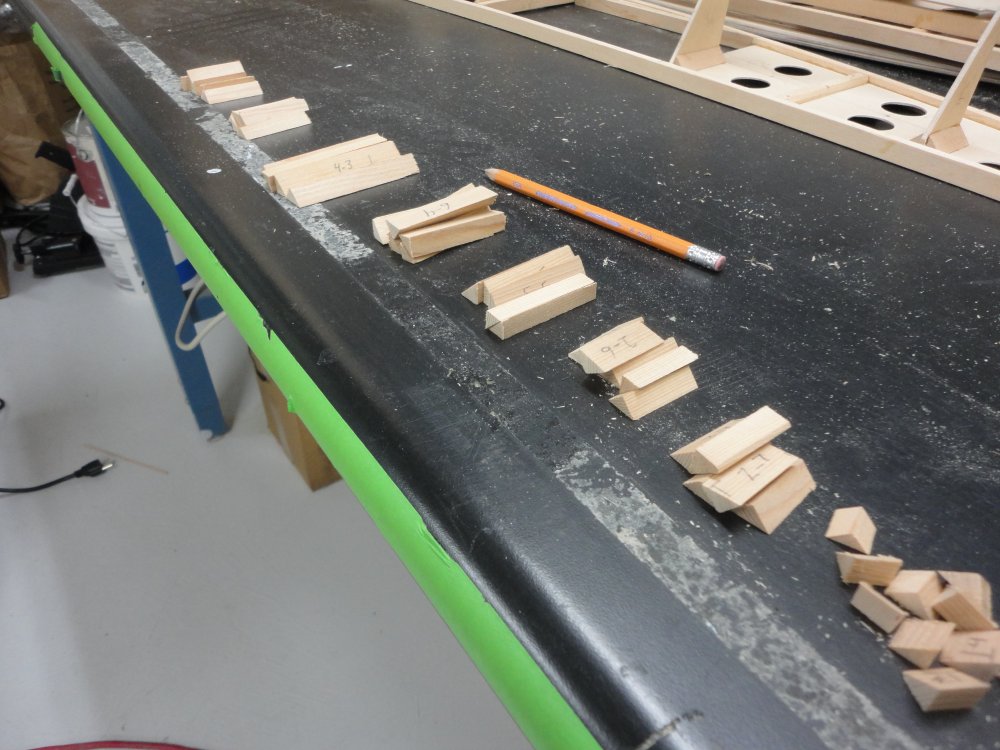

These little triangular gussets are also required.

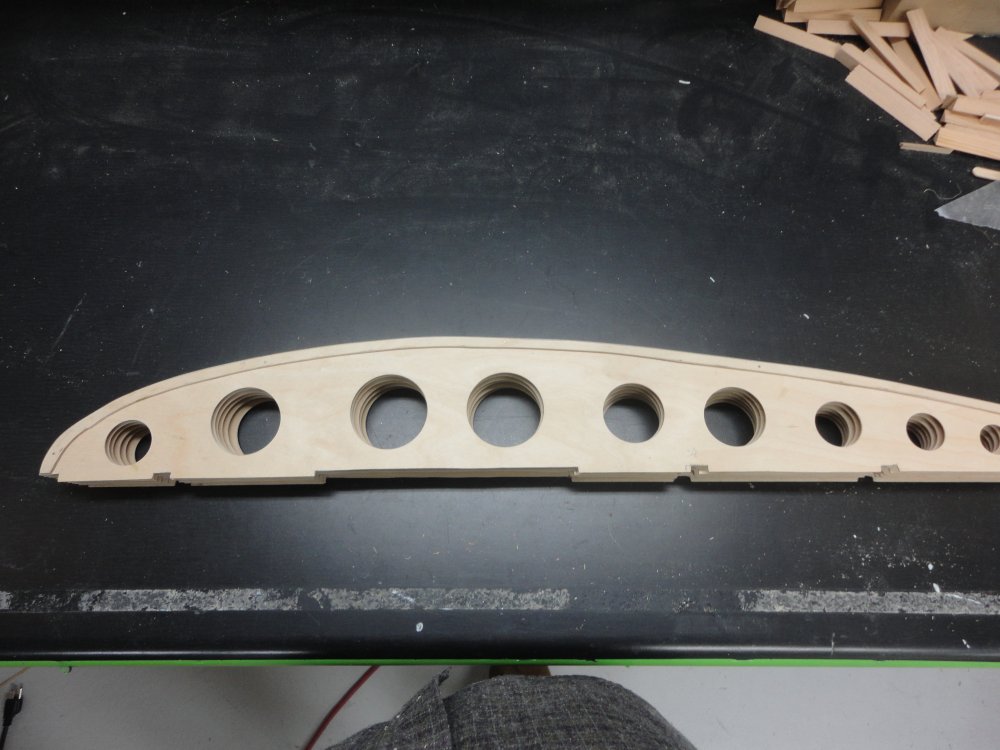

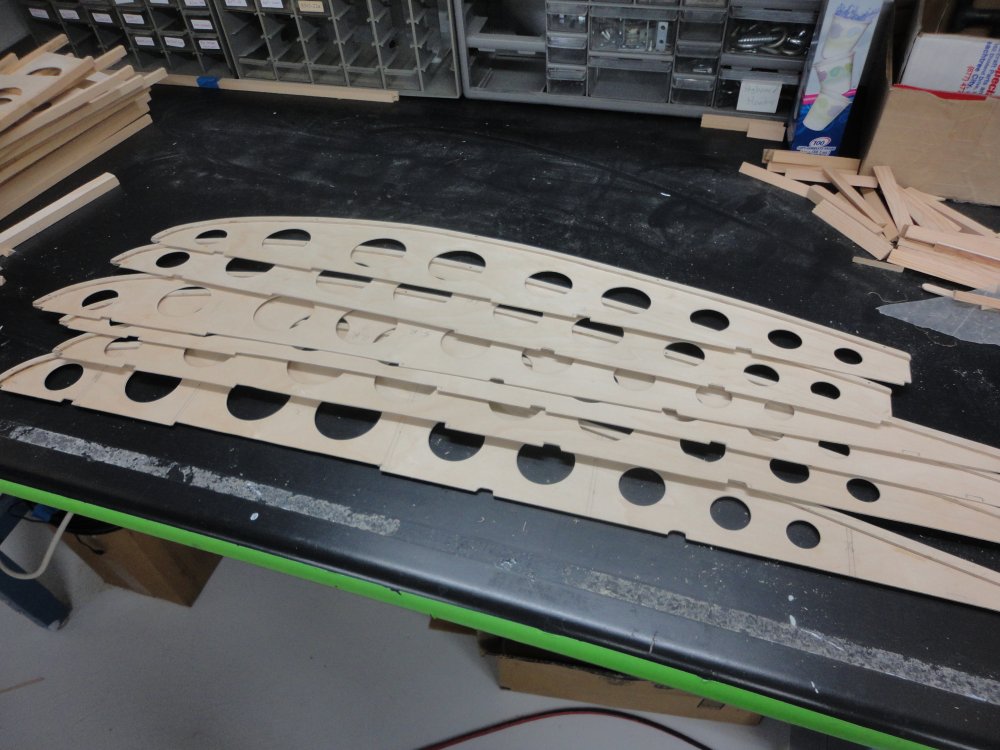

The horizontal pieces required notches in the bottom to fit on the vertical wingtip ribs.

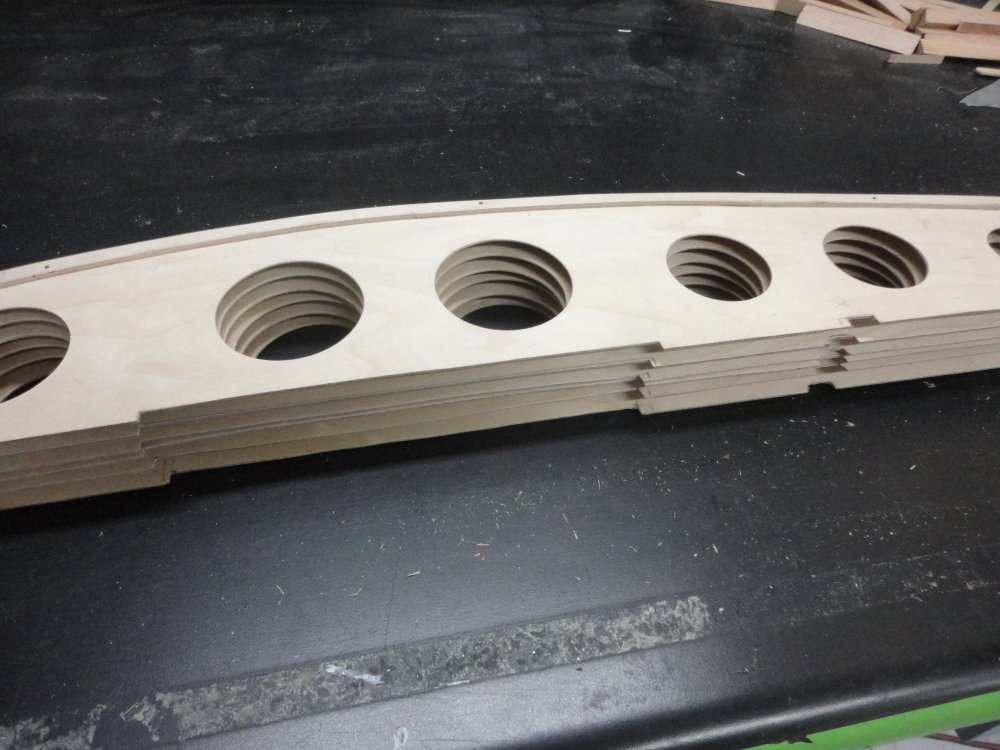

A better look at the notches.

An even closer look.


The horizontal piece curves to follow the vertical rib curvature.   But how do I fix it in place to glue it?   The plans provide no guidance.  Time to get creative.

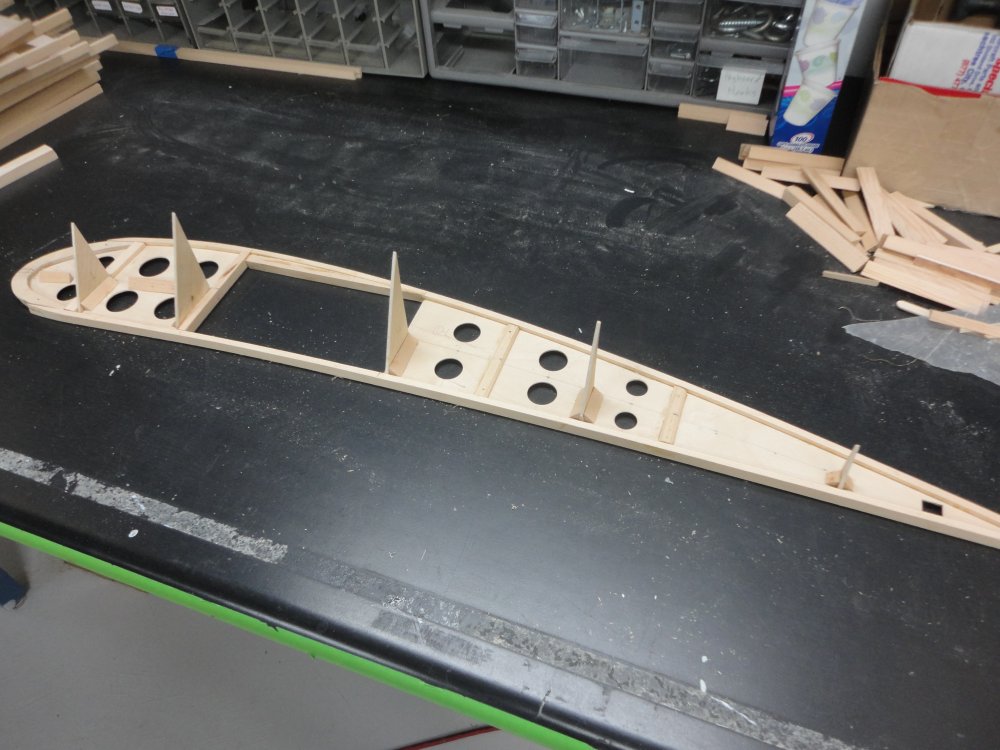

I decided I would try gluing the bottom triangular gussets in place first.  Hopefully that will provide a base to fix the horizontal piece to.

Looking straight down.

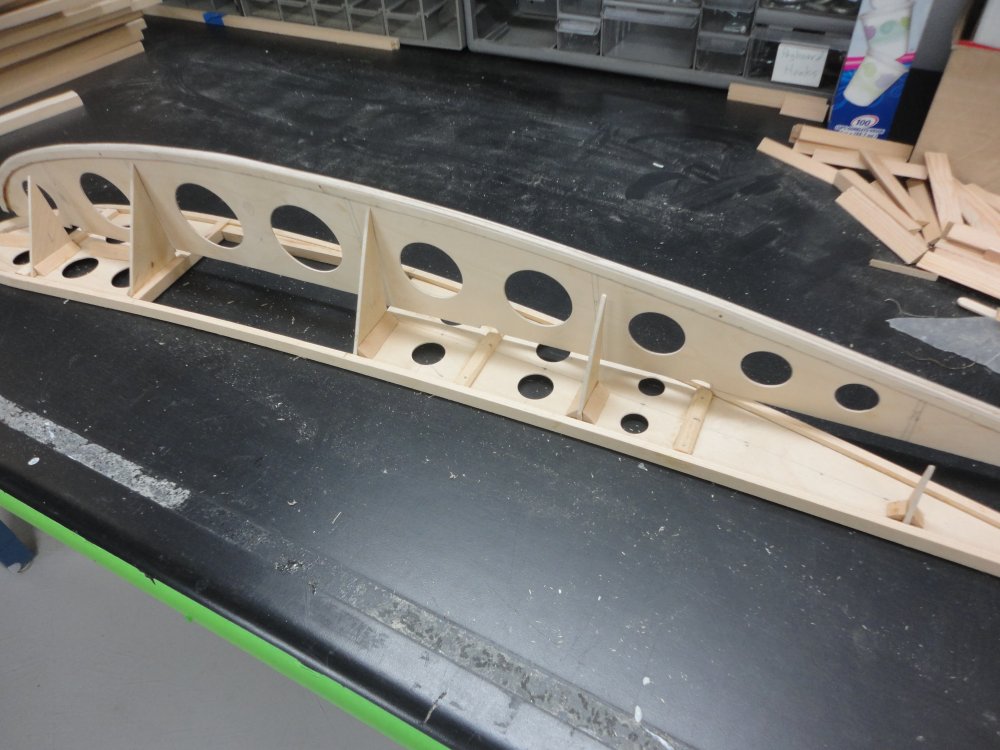

Trial-fitting the horizontal piece to the vertical rib.  Some trimming was required to get a good fit.

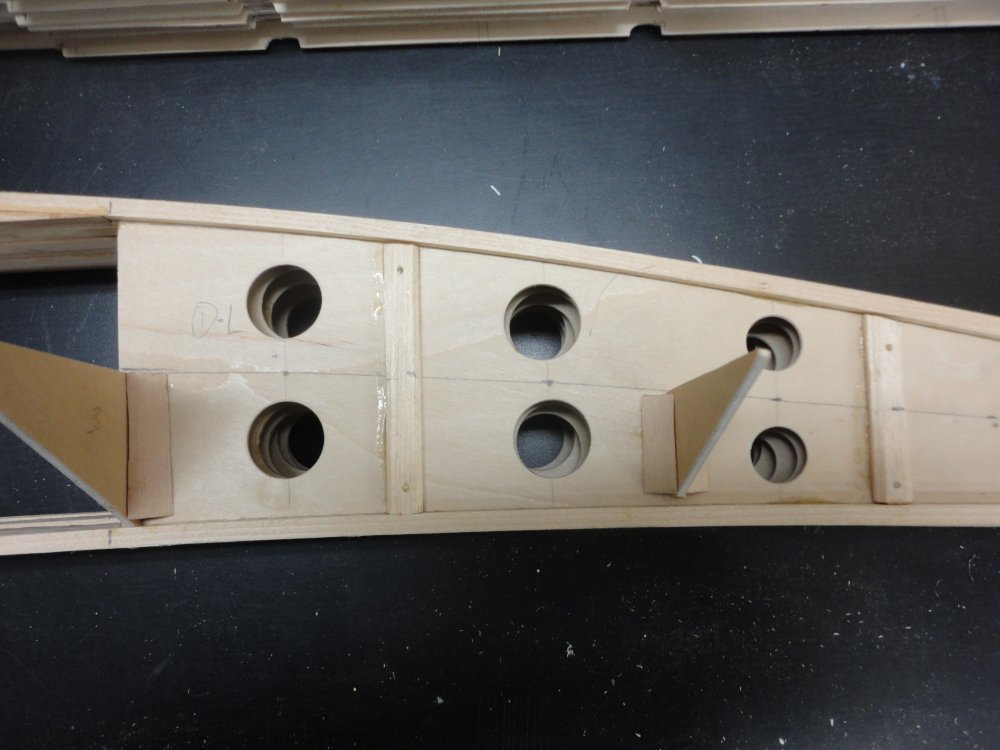

I glued two triangular wedges running near the front so that the horizontal piece front fits snugly into a slot.

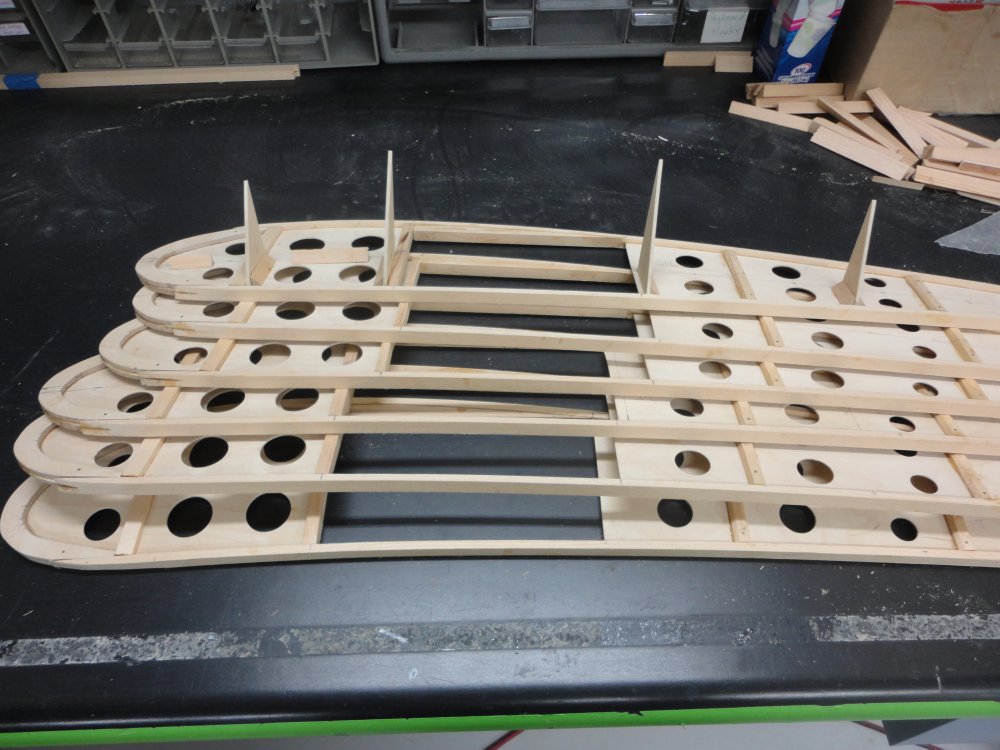

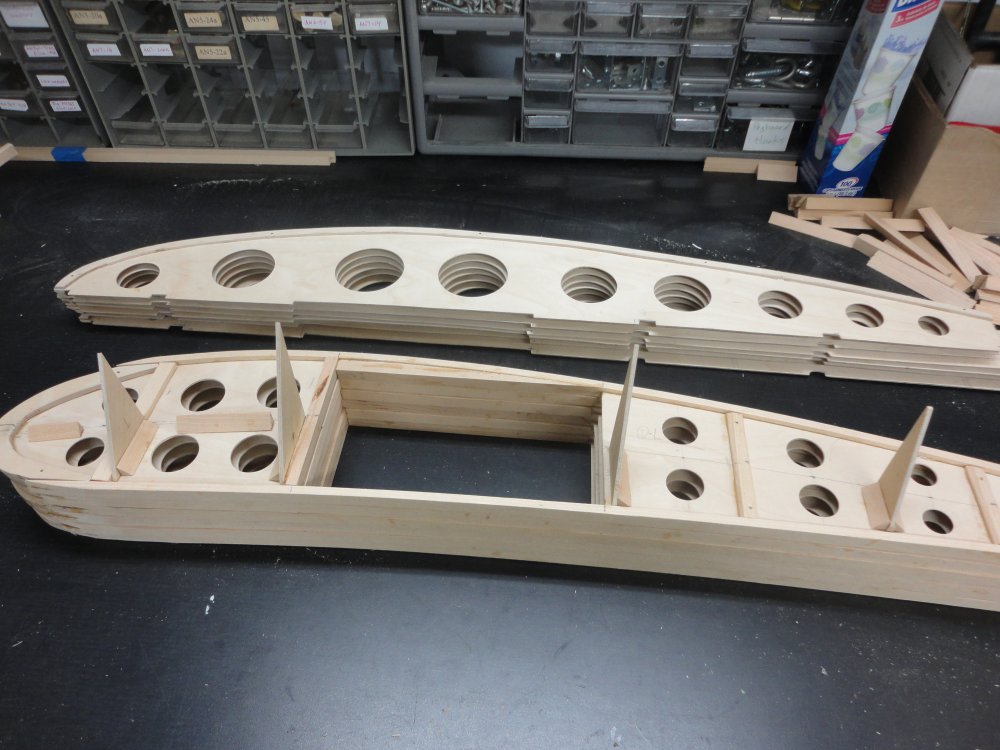

All six vertical ribs.  The first one is ready for gluing the horizontal piece.
