September 22, 2008 - Firewall Forward sensor wires |
||||||

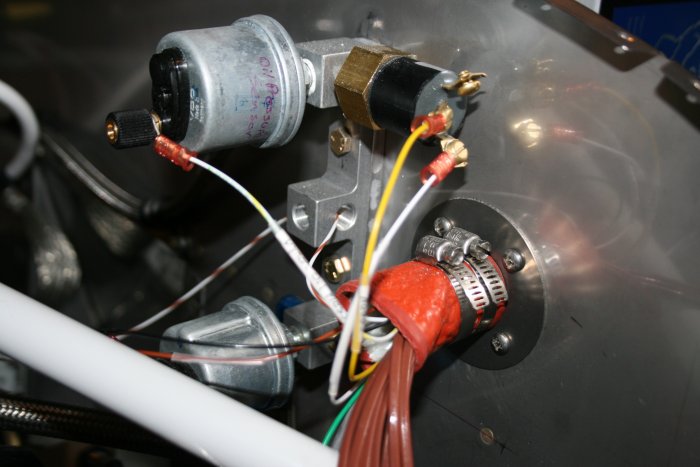

| I connected the sensor wires out of the Dynon to the oil pressure, oil temp, and fuel pressure. I ran the sensor wires through the firewall pass-through on the left side. | ||||||
|
|
||||||
|

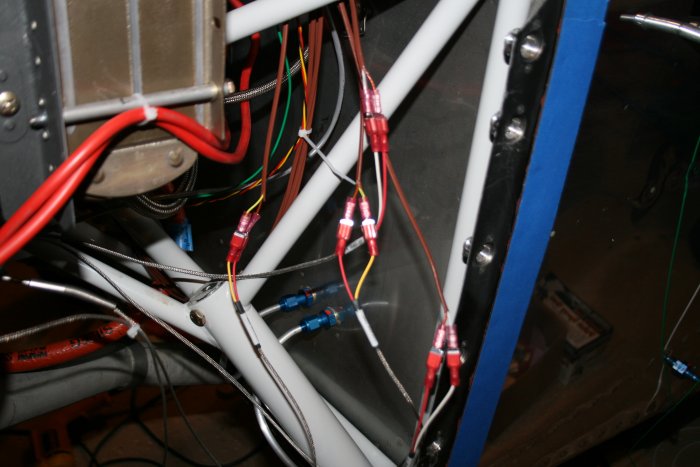

I hooked up the Dynon brown EGT/CHT
sensor wires to the metal wires coming out of the probes. I have to
figure out how I'm going to secure
them.
|
||||||
|
|
||||||
