September 20, 2008 - Alternator Circuit |
||||||

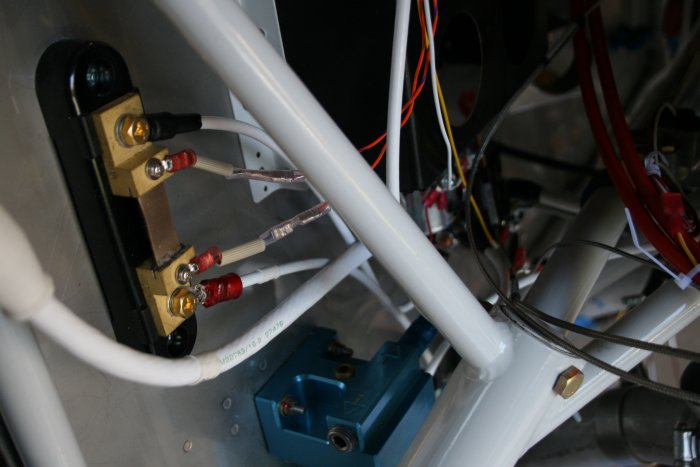

| I had on hold with the alternator circuit for lack of terminal ends. I ordered what I needed from B&C Specialty Products so I went ahead and finished it up today. The long wire runs from the alternator to AN Limiter. I made a short wire that runs from AN Limiter to AN Shunt. Then another short wire from AN Shunt to the copper bus between Battery and Starter contactors. So, the alternator circuit is done. | ||||||
|
||||||
|

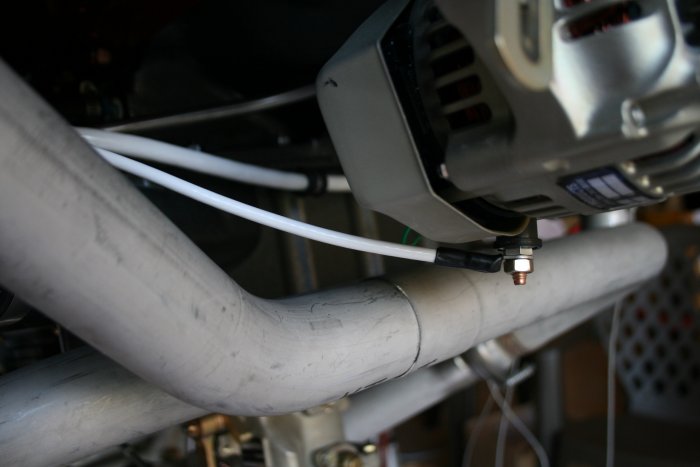

Here's the long wire coming off the
alternator.
|
||||||
|
||||||
|

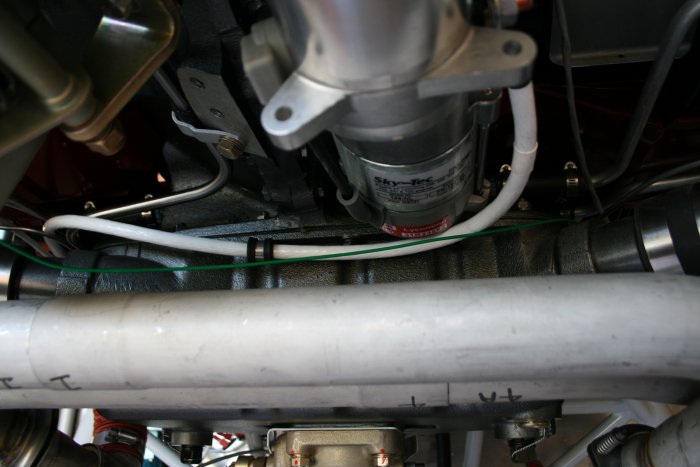

I secured the main starter wire it to
the engine with an Adel clamp. The green wire runs from the
Alternator to the Voltage regulator.
|
||||||
|
||||||
|
|
||||||
