March 21, 2004 - Rudder

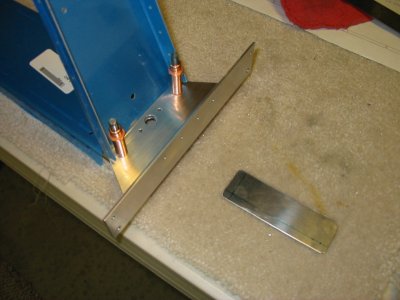

Now I'm working on the Rudder spar. This is the rudder horn clecoed to the bottom of the rudder spar and bottom rib. The rectangular piece of aluminum is a shim I had to cut and finish from the plans.

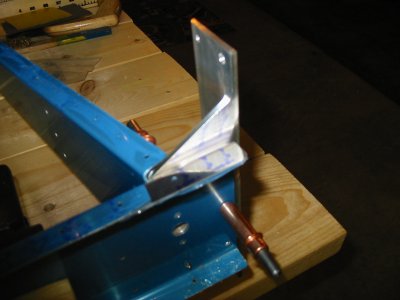

Here is another view of the rudder spar and rudder horn, looking from front to back.
Next step is to cleco and final drill the ribs to the top of the rudder spar.
