Notice the holes at the top of the left subpanel. They are mounting holes for the B&C Specialty Products Model LP-3 Alternator Controller. I was going to put it on the aft side, above the Main bus. But then I realized it would interfere with the canopy frame. So I'm going to put it on the forward side. However, I did drill more holes than I needed to.

September 26, 2007 - Wiring

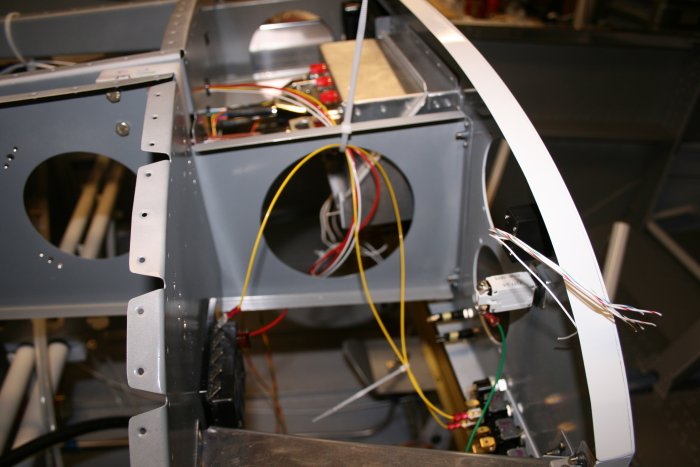

More wires. I'm trying to leave slack in the wires to the panel so I'll be able to pull the panel out a foot if need be.

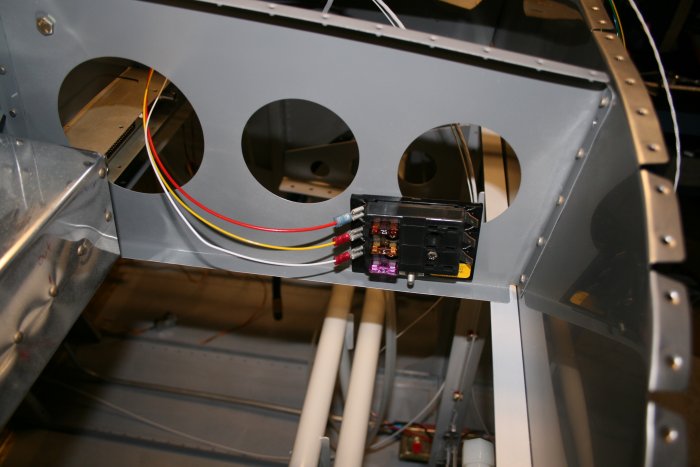

Running wires to the Battery Bus.

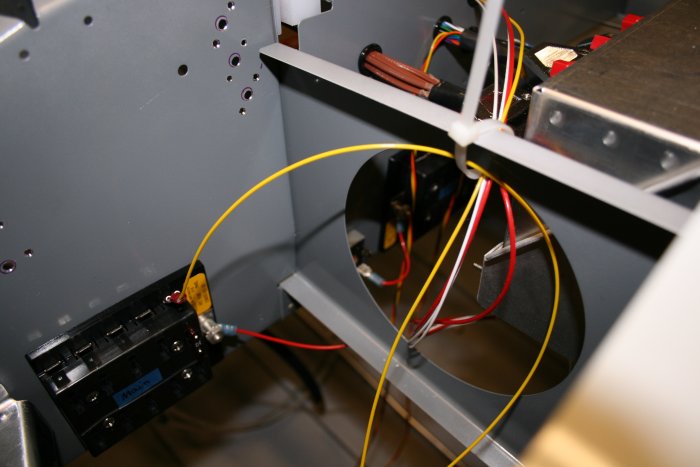

Wiring from another angle. Notice the holes at the top of the left subpanel. They are mounting holes for the B&C Specialty Products Model LP-3 Alternator Controller. I was going to put it on the aft side, above the Main bus. But then I realized it would interfere with the canopy frame. So I'm going to put it on the forward side. However, I did drill more holes than I needed to.
