September 25, 2007 - Wiring

I drilled the panel side bracket holes and riveted the nutplates on.

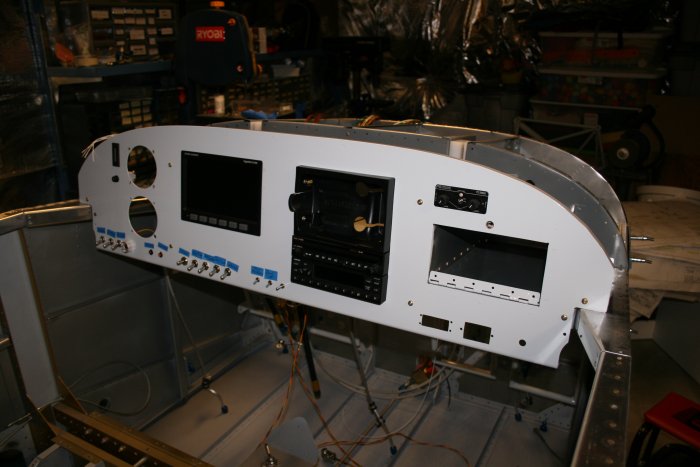

And the panel is on for good!



The first think I did was attach the three Dynon wiring harnesses and run the wires through the three 5/8" snap-bushings in the center subpanel.  I think it's going to work out well.

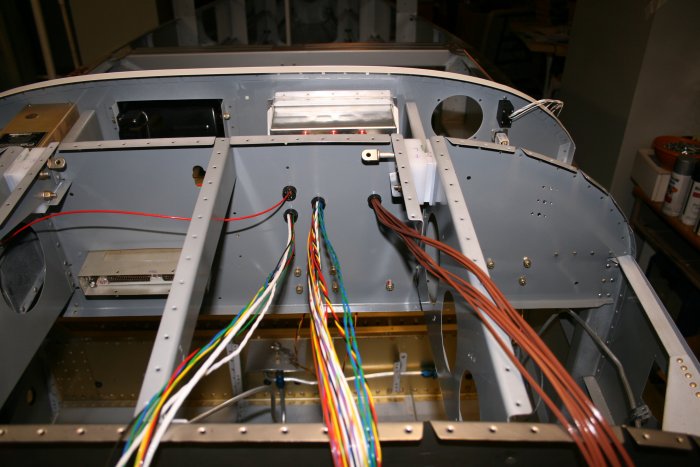

You can really see it in this image.

I can use the extra hole -- the top one -- to run non-Dynon wires from the switches to the battery bus or firewall.


Running some more wires.
