July 10, 2007 - SubPanel work |
||||||
| My order from B & C Specialty Products arrived. First the switches. I'm onforming to the AeroConnection Z-11 diagram. | ||||||
 |
||||||
|

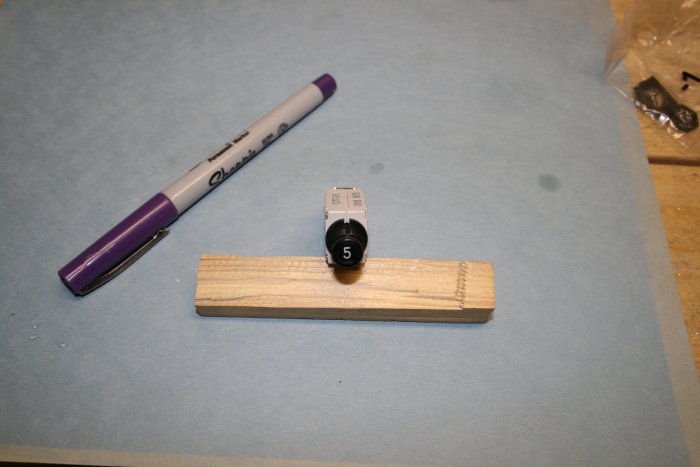

The only circuit breaker on my panel. It's for the Alternator
Field.
|
||||||
 |
||||||

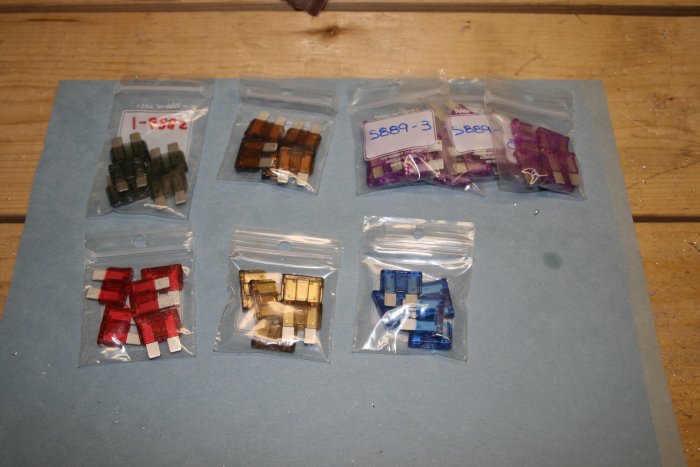

| All the fuses for my bus blocks. | ||||||
 |
||||||
|

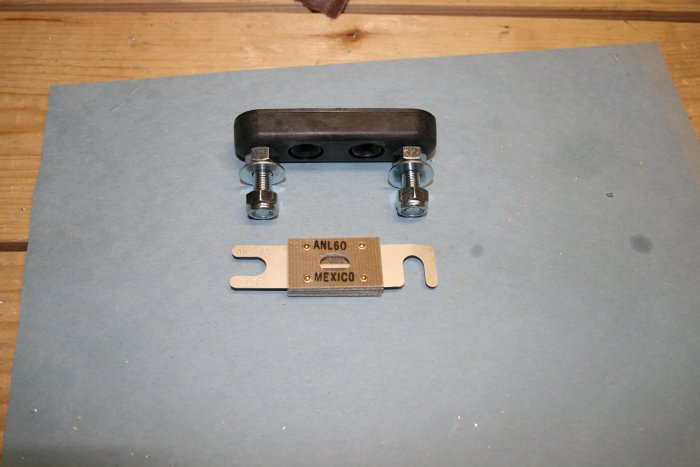

The 60A Current Limiter. Bolts to the firewall.
|
||||||
 |
||||||

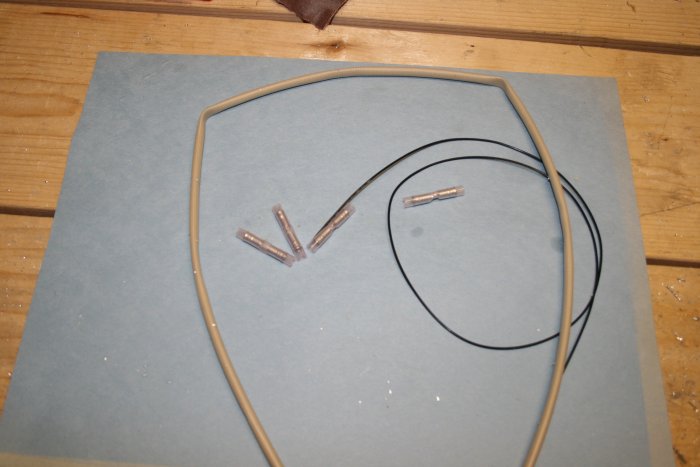

| Materials to make a Fuse Link. | ||||||
 |
||||||

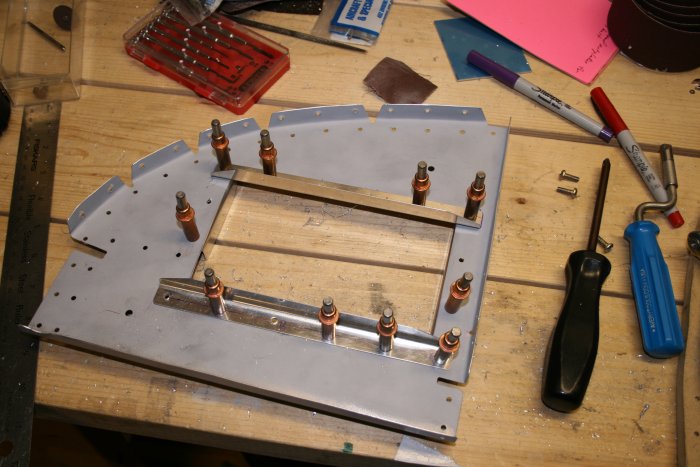

| Now back to work. More support brackets on the subpanel for the mapbox. | ||||||
 |
||||||

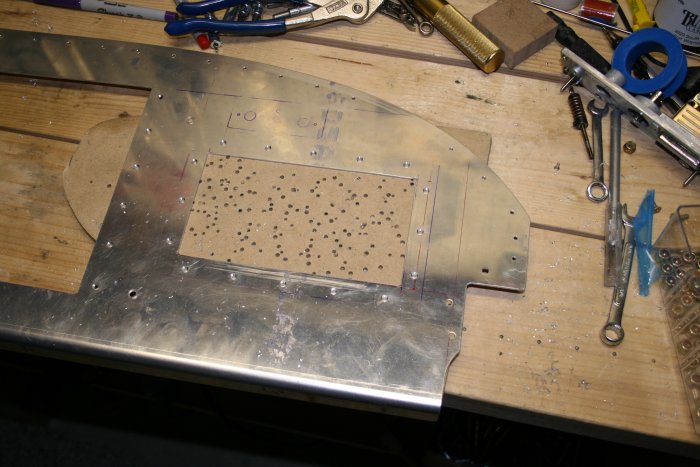

| Countersinking the mapbox holes. | ||||||
 |
||||||
|

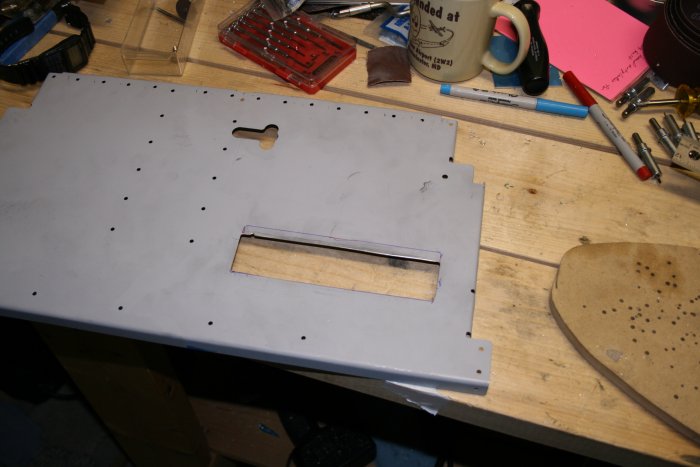

I didn't make the cutout in the center subpanel big enough so I had to
widen it a bit.
|
||||||
 |
||||||
