October 27, 2008 -  Oil Filler Door, Cowl

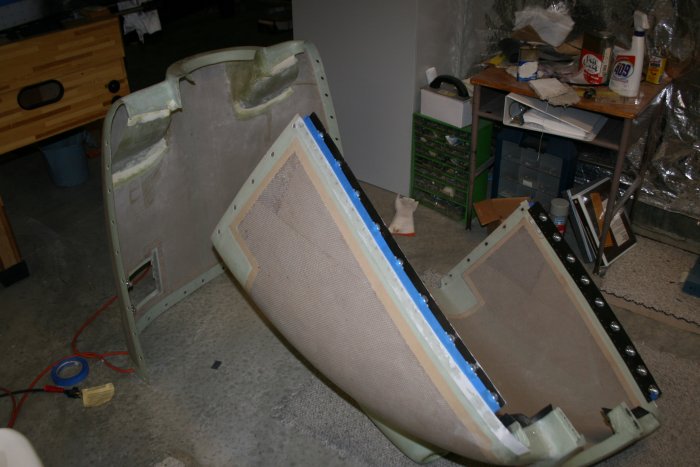

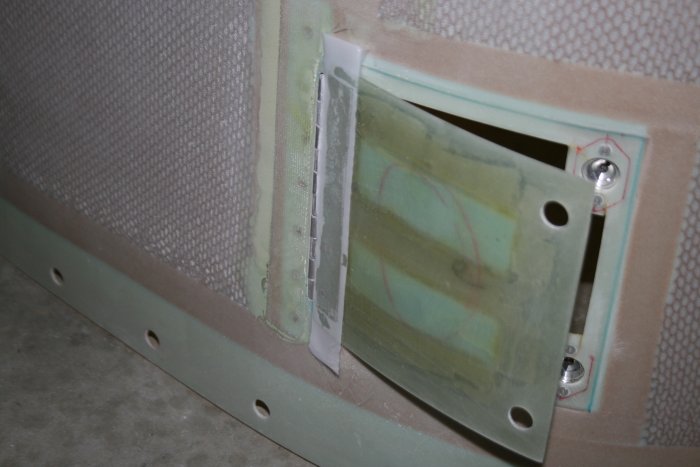

I riveted the oil filler door to the hinge, again using the Main Squeeze.  You can see where I applied and sanded Rage Gold to feather in the fiberglass strip over the hinge/cowl rivets.

Next I epoxied glass over the door rivets, then covered with peel ply.

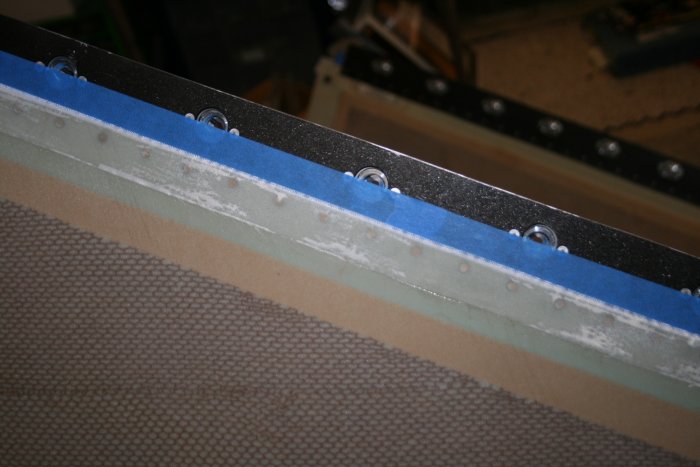

I expoxied fiberglass strips to the rivet lines on the lower cowl.

Close-up shot.

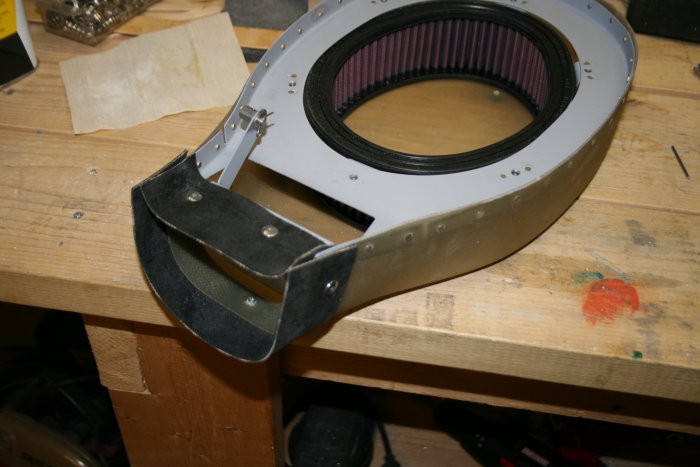

I finally riveted the rubber strips to the airbox inlet per the instructions.
