October 28, 2008 - Spinner Filler covers

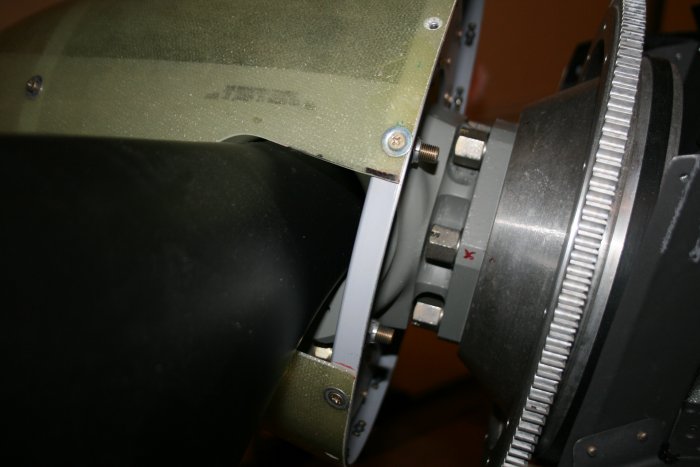

I wanted to make sure the prop cutouts in the spinner were sufficiently big for the prop's entire range of movement.

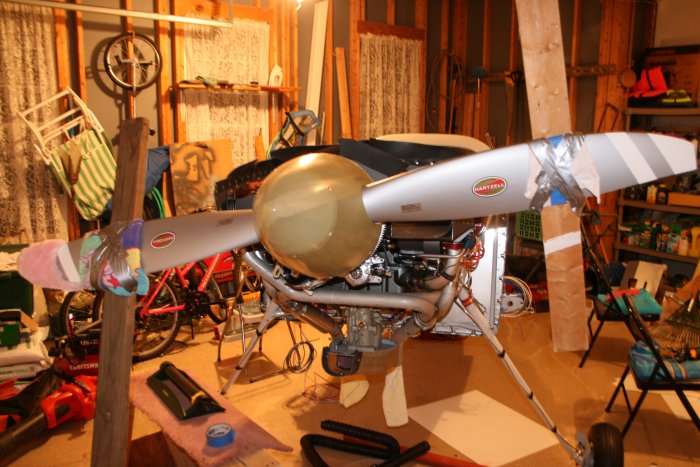

I secured some two by fours to the prop as shown, and then Lynnette and I twisted the prop.  Clearance was fine.


Next item on the agenda was to make the spinner covers that close the gap aft of the prop blade.

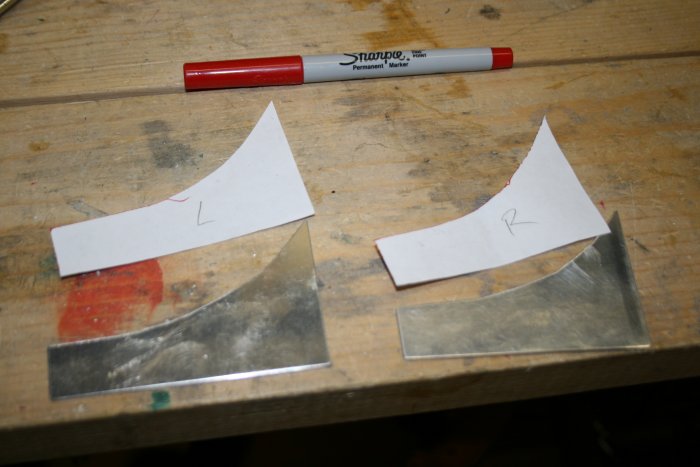

First I made paper templates.  I used them to cut out the real thing from aluminum sheet.

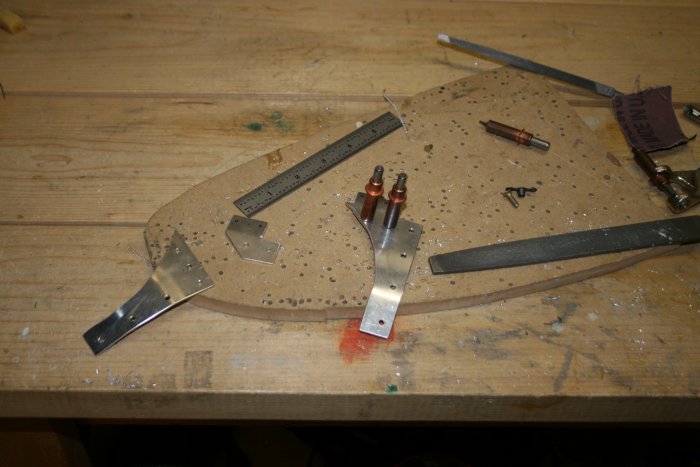

After a lot of trimming, drilling and bending, I had fashioned the covers as shown.  I also fashioned the little butt plates that help secure the forward part of the cover to the spinner itself.
