July 27, 2008 -  Magneto Ignition Wire

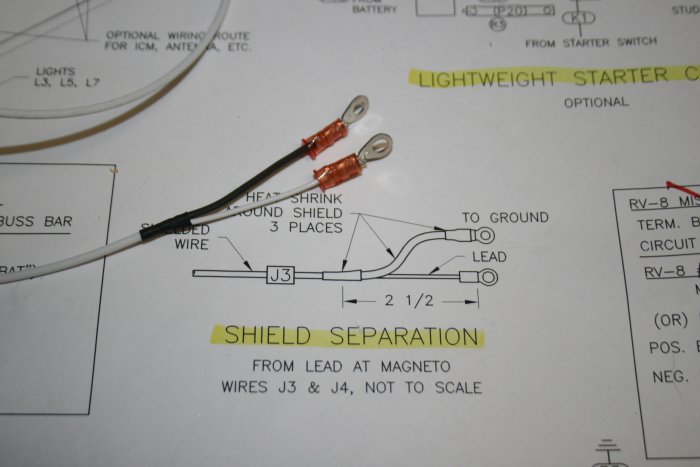

Worked on the Ignition wire for my single Magneto.  No big deal -- the drawings show you how to do it.  The reason the ground lead is covered with heat shrink is because it is the shield part of the wire.

The next step is to attach the end shown below to the Magneto, then run the wire through the firewall to one of the ignition switches on the panel.
