January 31, 2008 - #4 Cylinder Baffle |
||||||

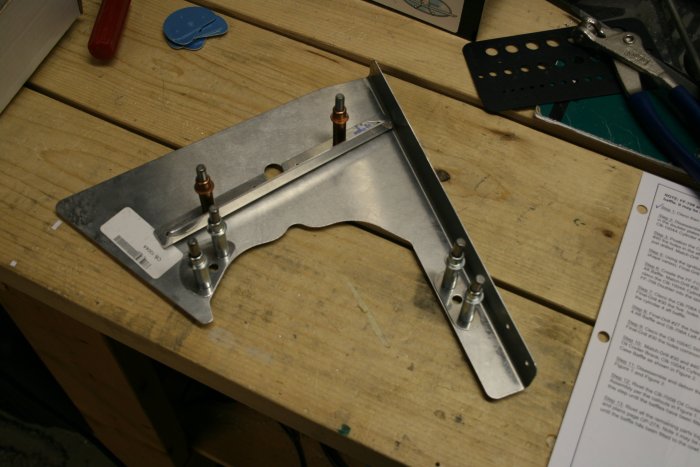

| I started working on the #4 cyclinder baffle components, match-drilling an angle and some little reinforcer plates to the side baffle. | ||||||
|
||||||
|

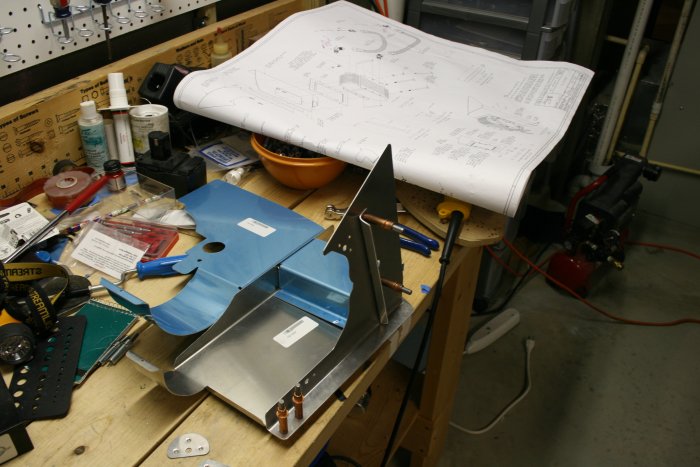

Then I clecoed the entire mess
together. This section of the baffles holds the oil cooler so there
are more
components.
|
||||||
|
||||||
|

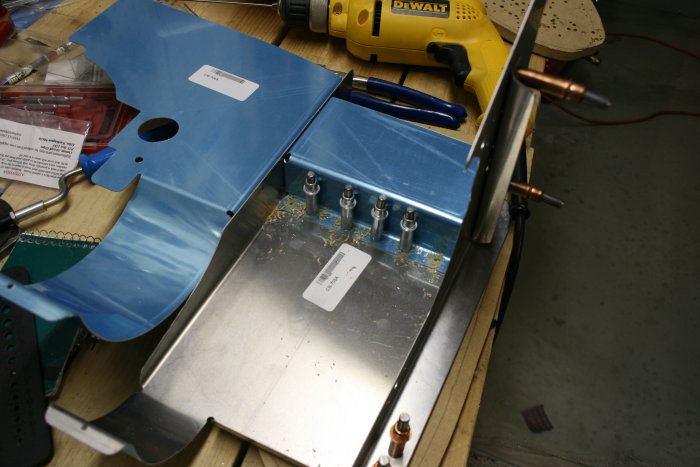

Match-drilling a reinforcement
bracket to the baffle assembly. This bracket strengths the structure
so it can bear the weight of the oil
cooler.
|
||||||
|
||||||

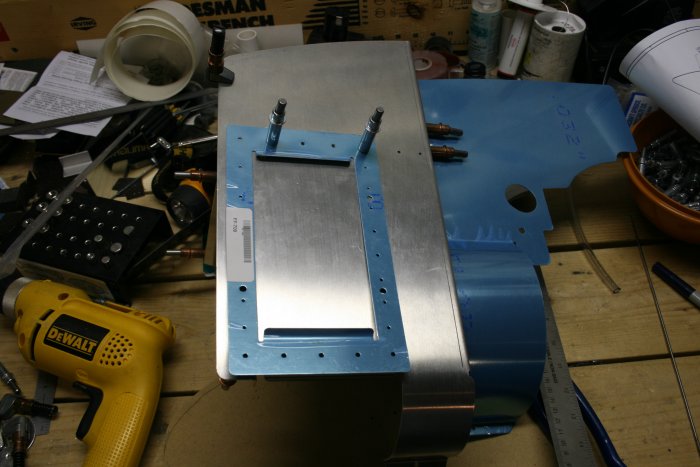

| Match-drilling the oil cooler reinforcement plate to the aft baffle. | ||||||
|
||||||

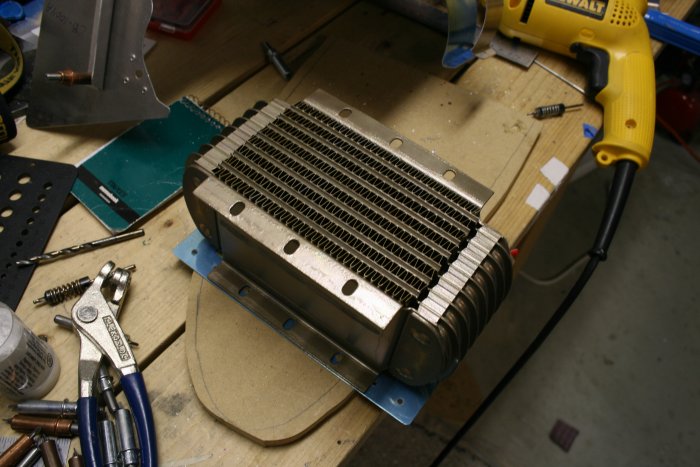

| I broke out the oil cooler for the first time and trial-fit it to the bracket. Fits just right. | ||||||
|
||||||
| I put in over 90 hours in January working on the RV. Good month! | ||||||
