April 4, 2006 - Rudder Cables

April 4, 2006 - Rudder Cables

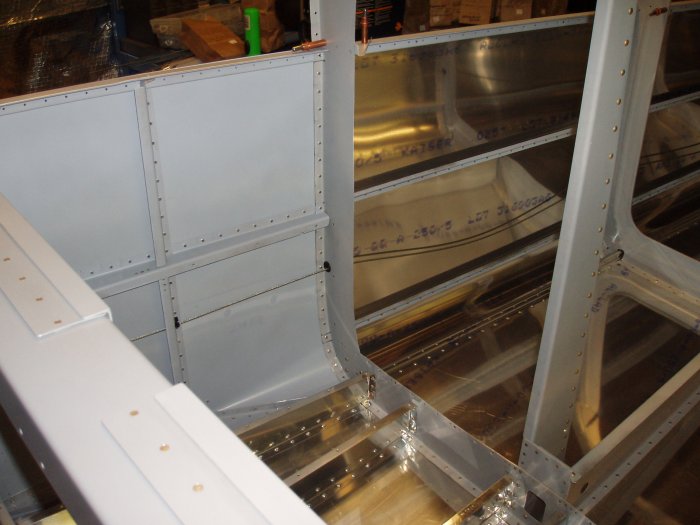

Thanks to Dan Checkoway's web site, I knew I had to run the rudder cables prior to riveting the baggage area side panels. The only tricky thing about the rudder cables was remembering to put the snap bushings on the rudder cable after feeding it through a bulkhead. At first it was hard to get the snap bushing over the end of the rudder cable but I soon got the hang of it and after that it was easy.

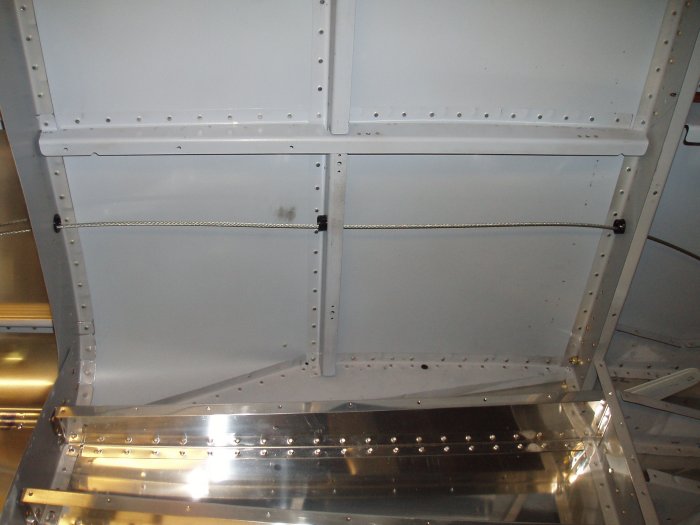

The drawings didn't show a 5/8" snap bushing hole in the middle baggage area side bulkhead so I didn't drill one. But there was a pre-drilled starter hole in the side bulkhead. And it was pretty obvious that the rudder cable needed to run through the side bulkhead and not around the inside. So I drilled a 5/8" hole with the unibit and installed a snap bushing. Hope I did the right thing...
