June 28, 2005 - F704 Bulkhead
You can some of the flange nutplates at the top of the image.
June 28, 2005 - F704 Bulkhead |
||||||

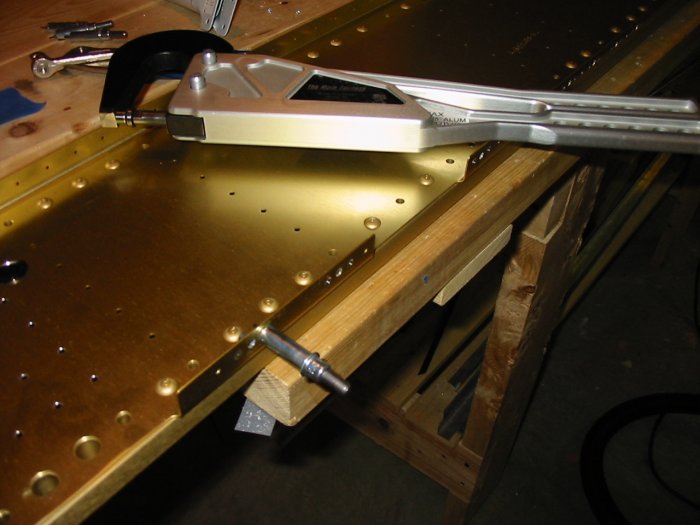

| About 18 nutplates go on the F-704 bulkhead flanges. But it was an easy job. The nutplates riveted on nicely with the hand squeezer. | ||||||
|
|
||||||

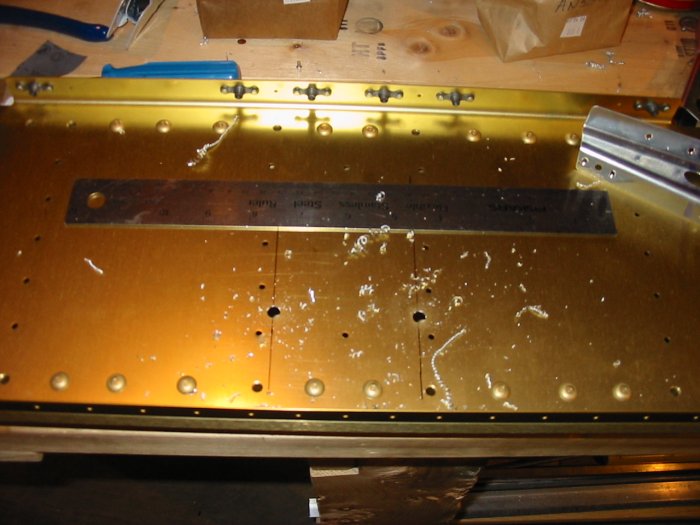

| Next, I had to drill a couple of
large holes in the center of the bulkheads for snap bushings. Wires,
cables or something like that go through these holes. There was no
starter hole pre-drilled for some reason.
You can some of the flange nutplates at the top of the image. |
||||||
|
|
||||||

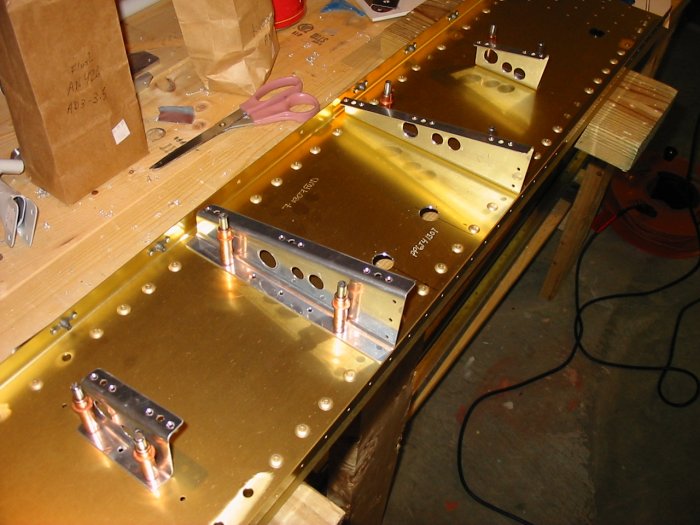

| Here is a shot of the forward bulkhead with the cover support brackets clecoed on. The cover support required some preparation work: drilling snap bushing holes, countersinking for nutplates, match-drilling to the bulkhead. I had to study the plans quite a bit; the instructions aren't very detailed anymore. | ||||||
|
|
||||||
