February 15, 2006 - Forward Canopy Deck

With the F-757 gusset and aft canopy deck drilled, it is time to work on the forward canopy deck.  There wasn't much to it.  Just drill it to the main longeron, using the forward canopy deck as a template.

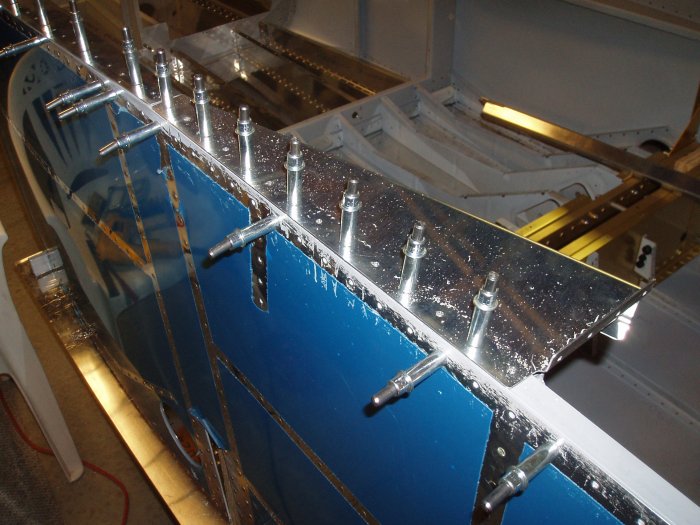

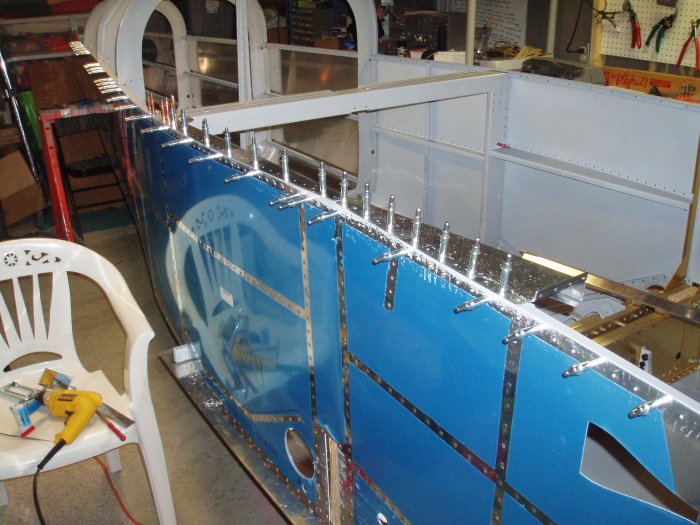

Here you can see forward canopy deck, aft canopy deck and F-757 gusset, all clecoed to the main longeron.

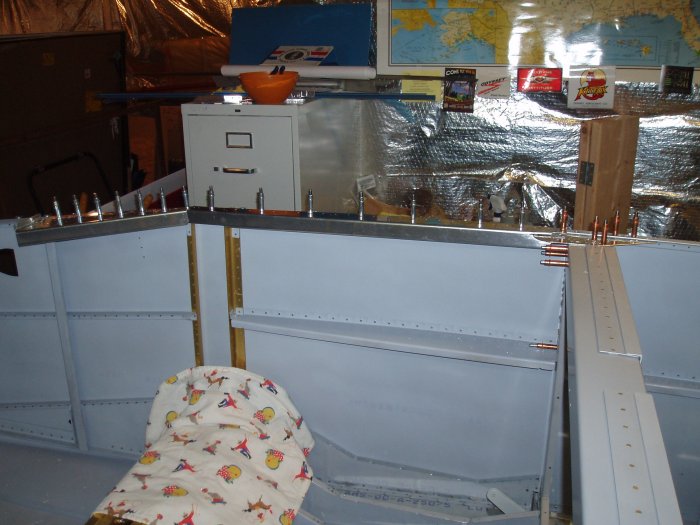

Looking at the canopy decks from the other side.  I had to dimple both canopy decks and countersink the main longerons, since flush rivets are used to fasten them together.

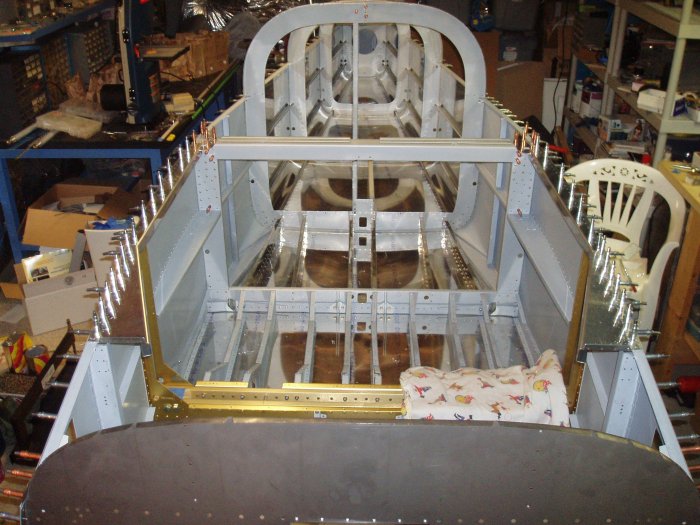

A nice shot of the entire fuselage with the canopy decks clecoed on each side.
