February 14, 2006 - F-757 Gusset

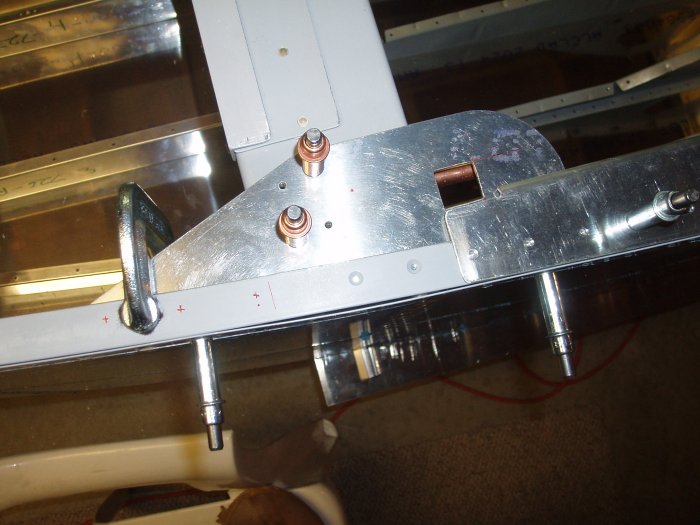

Next I cleco the F-757 gusset in place and match-drilled it to the main
longeron and F-705 bulkhead top.
February 14, 2006 - F-757 Gusset |
||||||

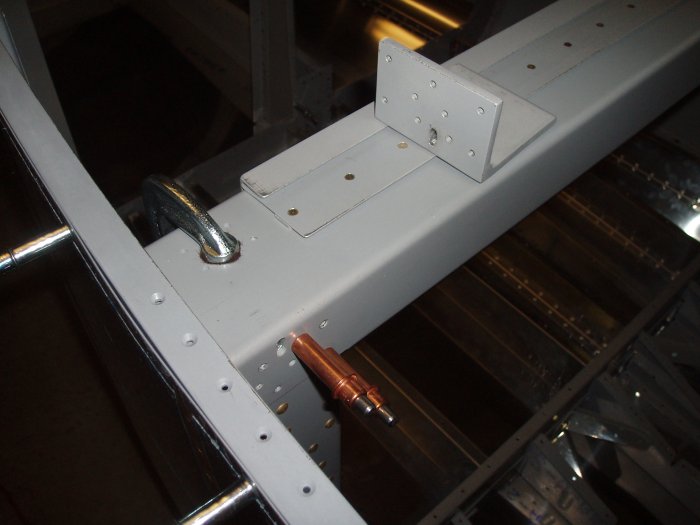

| I had fashioned and drilled the F-705 brackets long ago but not riveted them per the instructions. Despite the fact that the bracket already looks like swiss cheese, it gets drilled to the main longeron and F-757 gusset. Although you can't see it, the bracket is clamped and clecoed to the F-705 bulkhead and is ready for drilling, using the F-705 bulkhead top as a template. | ||||||
|
|
||||||
|
Next I cleco the F-757 gusset in place and match-drilled it to the main
longeron and F-705 bulkhead top.
|
||||||
|
|
||||||

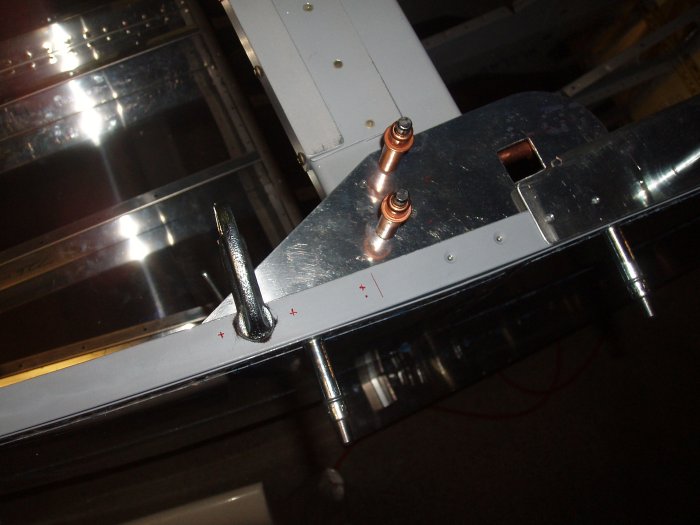

| The red +s mark where I have to drilled the main longeron (and F-757 gusset). | ||||||
|
|
||||||
|
|
||||||
