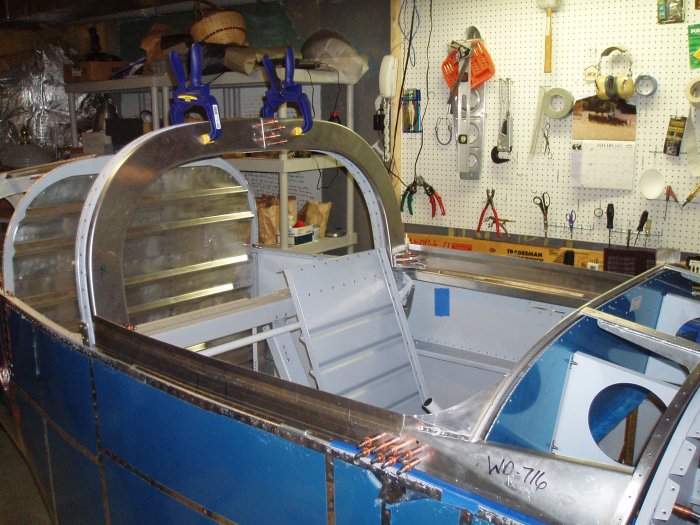

December 2, 2006 - Canopy Frame

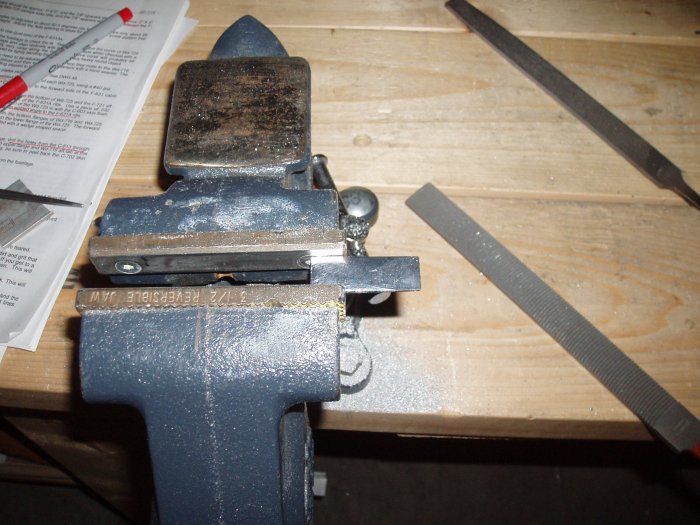

Back to work. I fashioned some little shims to go under the
splice-plate between the forward canopy frame and side weldment.
It wasn't hard, just took some elbow grease with the Vixen file.
The drawings include dimension for the shim but I ended up just using
some scrap.

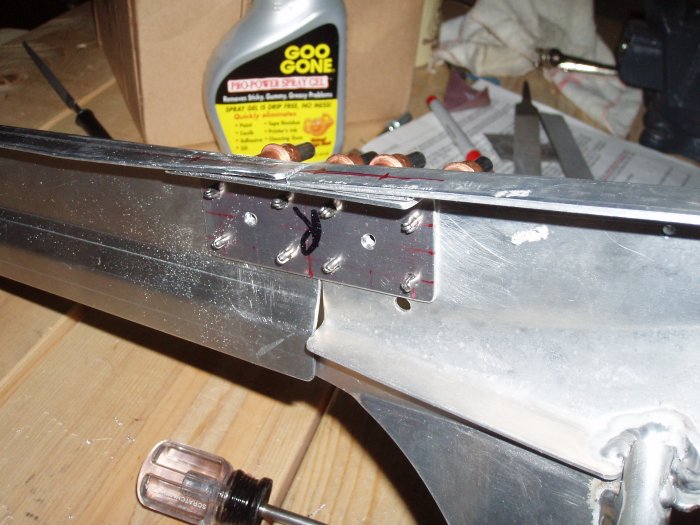

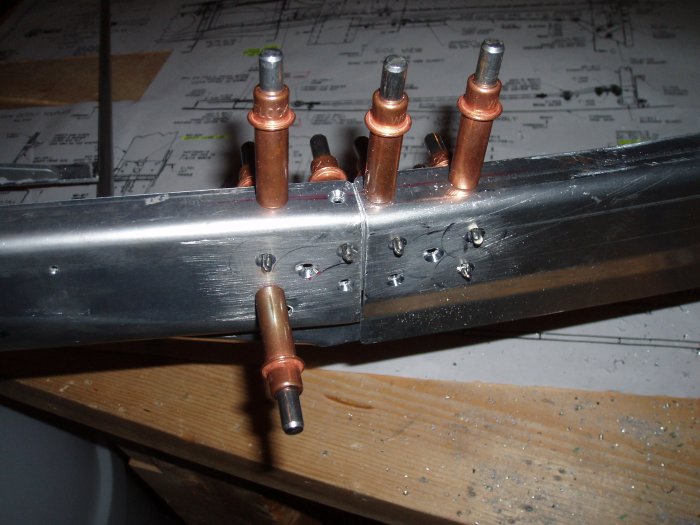

I inserted the shims and drilled the bottom flange of the forward canopy
frame, side weldment, shim and splice-plate. You can the shim if
you look carefully.
