April 24, 2005 - Emp Tips
|
|
In a week moment, I bought this set of tools from the Rodman Tool Company
booth at Sun 'N Fun for $125. You know, one of those booths, where
the guy shows you how it slices and dices and cuts through titanium, yada,
yada, yada. I bought it mainly because the hacksaw and drill bits
supposedly go through steel like butter. I hope it works, I have
spent hours hacksawing through steel. |
|
 |
|
|

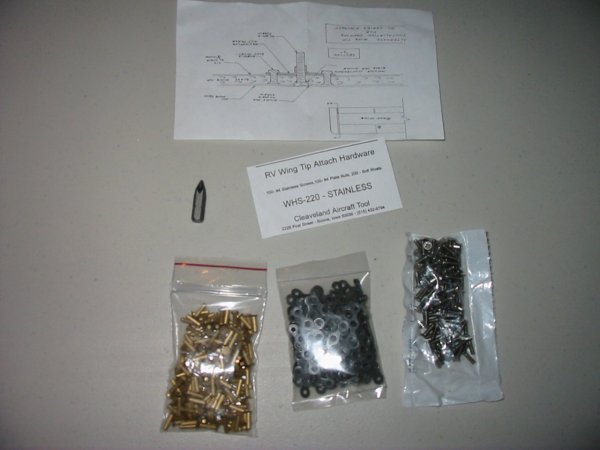

I also bought this wingtip nutplate kit from Cleaveland Tools at their
booth -- van, actually -- at Sun 'N Fun. It includes the
nutplates, #4 stainless steel screws, rivets and a bit. The
only problem with the #4 screws is that I had to later order a #4 dimple
die set and a #4 countersink bit.
|
|
 |
|
|

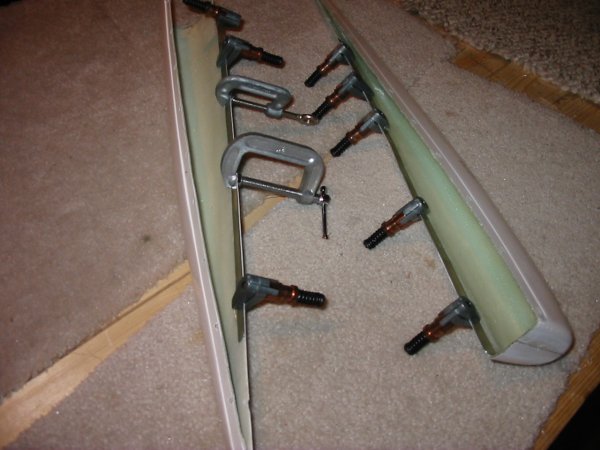

Epoxying aluminum strips on the inside of the tip edges. Van's
doesn't tell you to do it, but I didn't think the glass would hold the
pop-rivets and went ahead and did it. |
|
 |
|
|

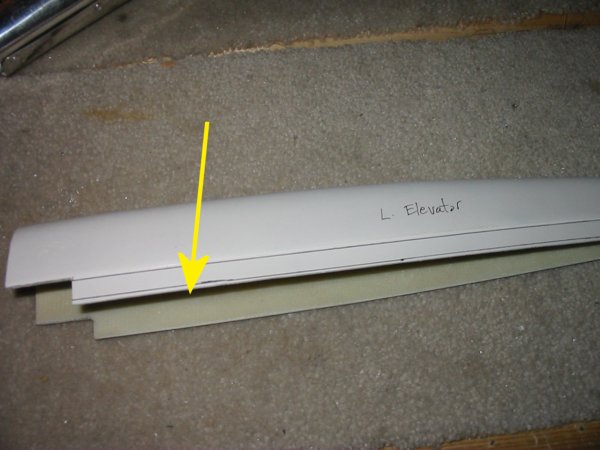

The elevator tip edges were running into the elevator rib flange,
preventing a nice clean fit. So I trimmed some of the edge off
--along the line indicated by the yellow arrow. The dremel tool
and 1" cutting wheel works great for trimming the fiberglass.
|
|
 |
|

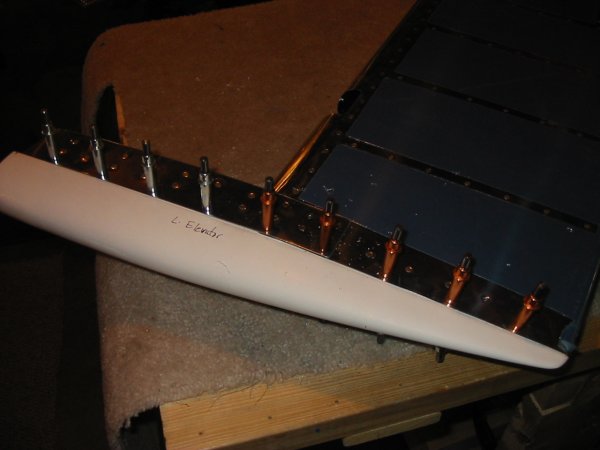

| First you drill using a #40 bit. |
|
 |
|

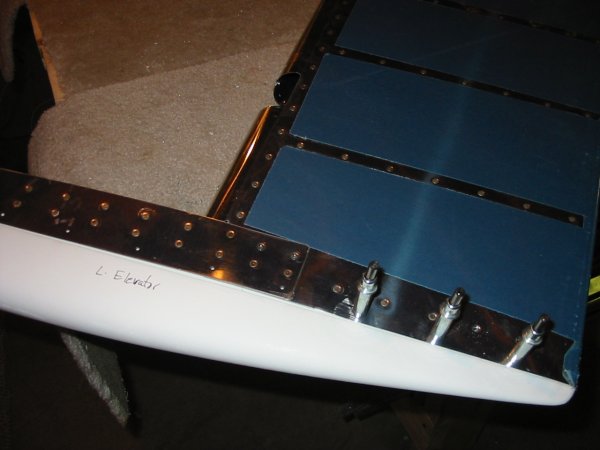

| Then drill using #30. |
|
 |
|

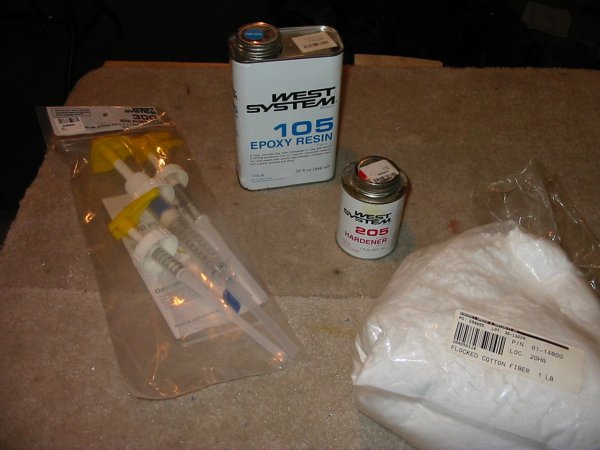

| I used West System epoxy to fasten
the aluminum strips to the fiberglass. I just bought the pumps; they
rock! I mix cotton flox in the epoxy to thicken it; makes it easier to
work with. |
|
 |
|
|
|
|
|
|
|
|
