June 6, 2004 - Elevator Trim Tab

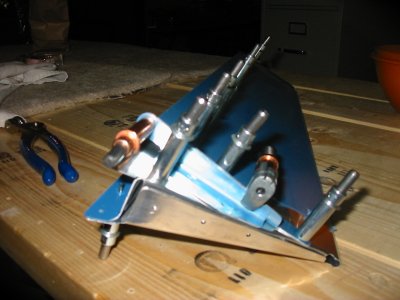

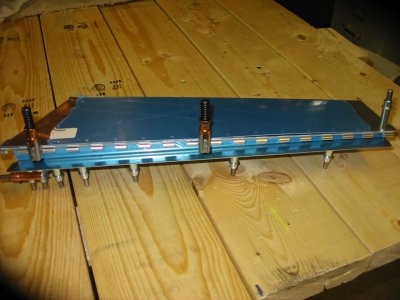

Here is the elevator trim tab skin with the spar clecoed to the top. Really not much to the trim tab.

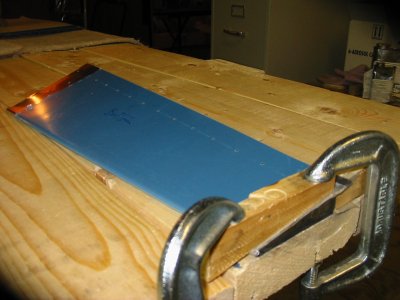

First step was to bend the skin to the proper angle. I
used the wood 2by8 brake followed by the 1/8 dowell and hand seamer.

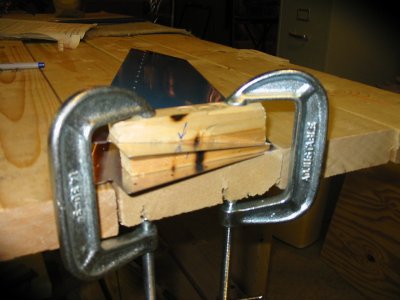

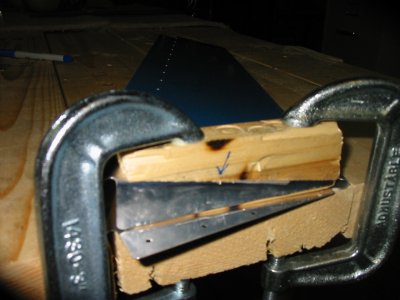

Next step was to bend the tabs on each end. The trim tab is clamped upside down with wooden wedges, double edged tape and the C-cleamps. First, bend the bottom tab down, then the top tab up. I followed the instructions exactly, and used wood to do the initial bending. With this, I got the metal close. Then I used the rivet gun with a flush head at low pressure (approx 25psi). This worked really well in getting the tab to a good 90 degree bend. There's no way you can get it there by manually pushing it with wood.

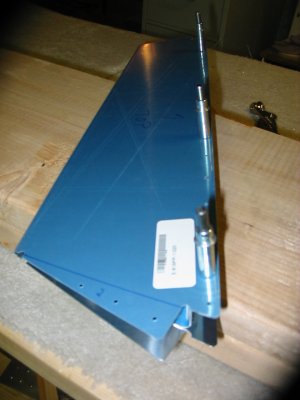

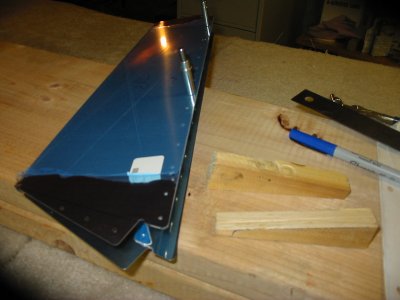

This picture shows the tabs before bending.
