December 15, 2007 - Miscellaneous Wiring

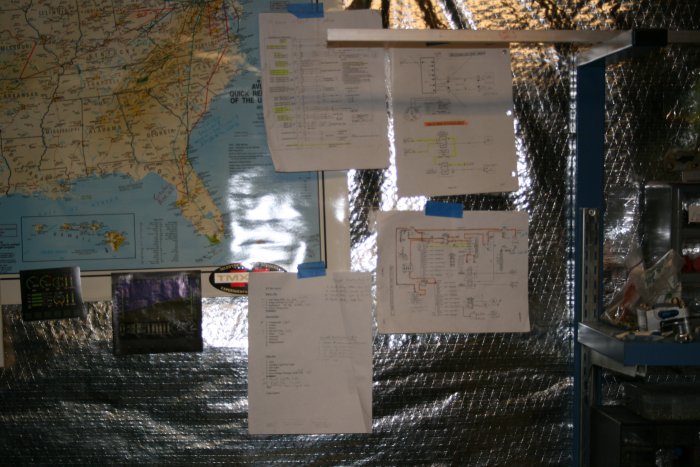

I finally got tired of wasting time searching for the electrical system key documents, and taped them to the wall.  Do yourself a favor -- do this from the start!

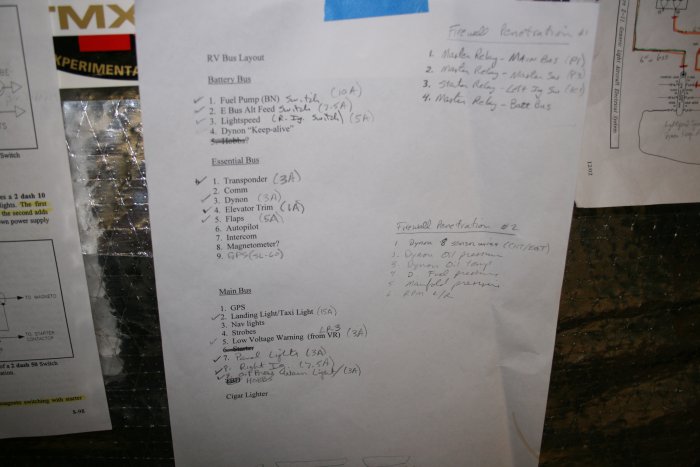

This key document lists what system is on what bus.  And what size fuse.

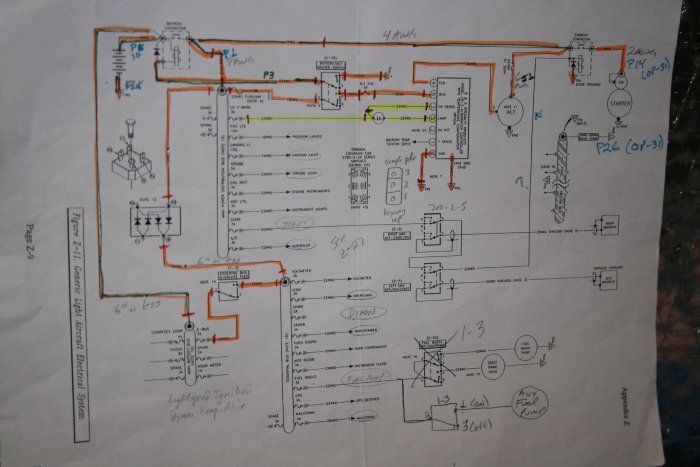

 The mother of all Key documents.  Bob Nuckoll's famous Z-11 electrical system schematic which I followed closely.  I know the essential bus is probably overkill for the VFR-bird I'm building but I still wanted it.  I really like the fuse concept, instead of circuit breakers, and the single ground bus as well.

I had to get in the airplane to finish up some of the intercom wiring.

Hard at work.


The stripper and crimper got a lot of use.
