April 30, 2008 - Forward Floor Baffles

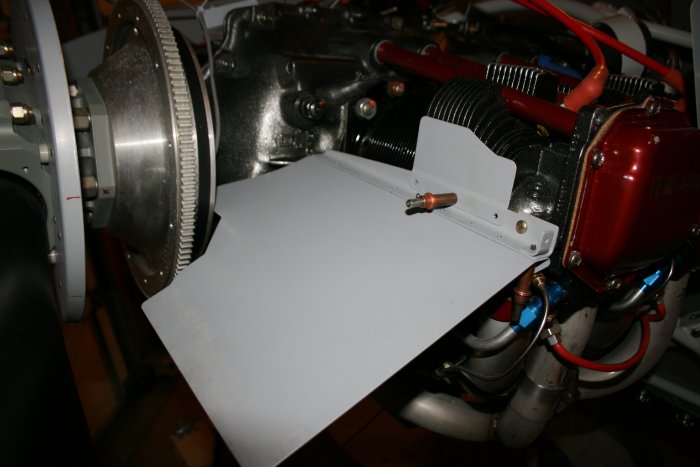

 I worked on the left baffle floor, trying to fit it to the engine.  On the right, you can see how it screws to the engine.  But I had to do a lot of trimming on the inside edge, to get it to fit.

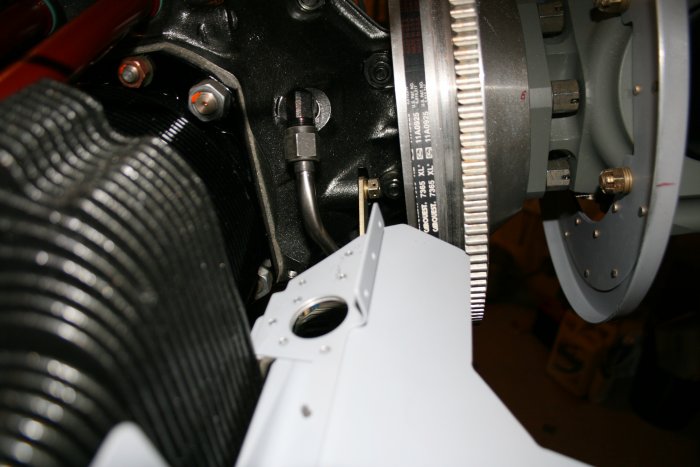

Trying to fit the right baffle floor.  You can see the prop governor oil line that has to go through the 1" hole.  I wasn't having too much luck.  I finally had to remove the entire oil line to be able to fit the baffle floor.

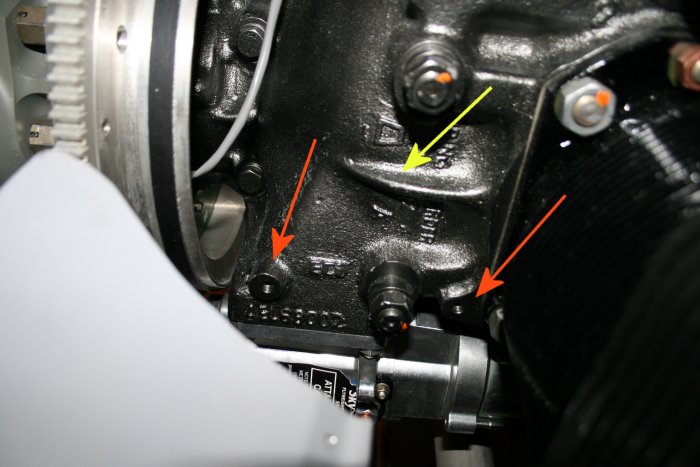

Back to the left side.  The red arrows point to screw holes where the left baffle floor will eventually be secured to.  The yellow  arrow points to an engine protrusion that made fitting the floor difficult.
