January 29, 2005 - Right Aileron |
||||||

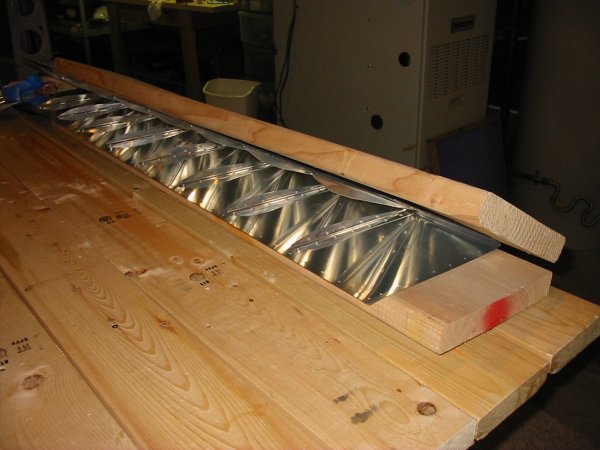

| Bending the trailing edge skin with my homemade brake. | ||||||
|
|
||||||
|

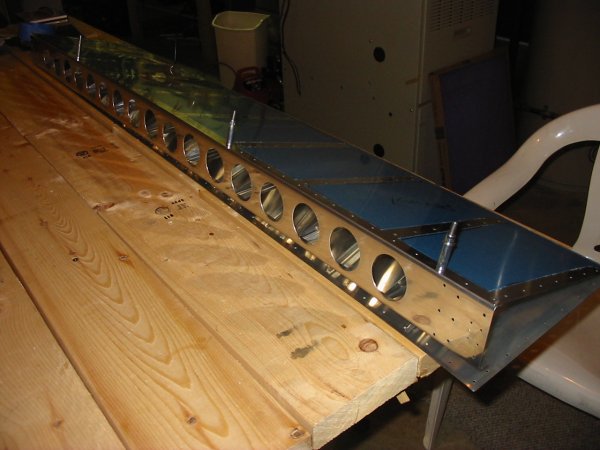

The trailing edge skin is supposed to end up about the same distance as
the spar height. This is pretty good.
|
||||||
|
|
||||||

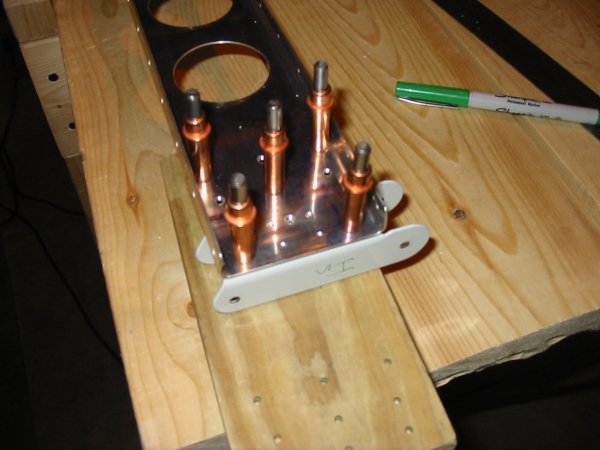

| Now match-drill the reinforcers and hinge brackets to the spar. | ||||||
|
|
||||||
|

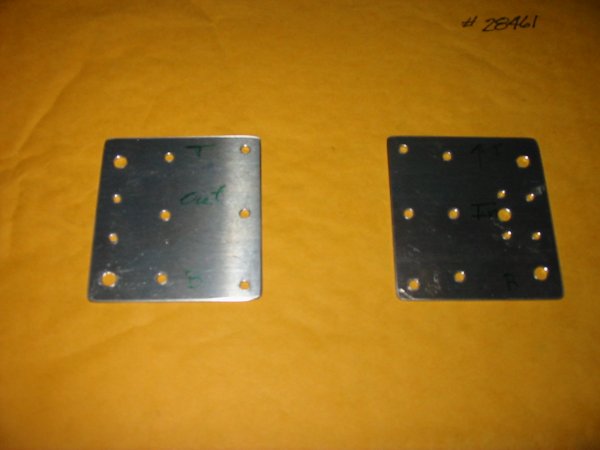

Spar reinforcers complete.
|
||||||
|
|
||||||

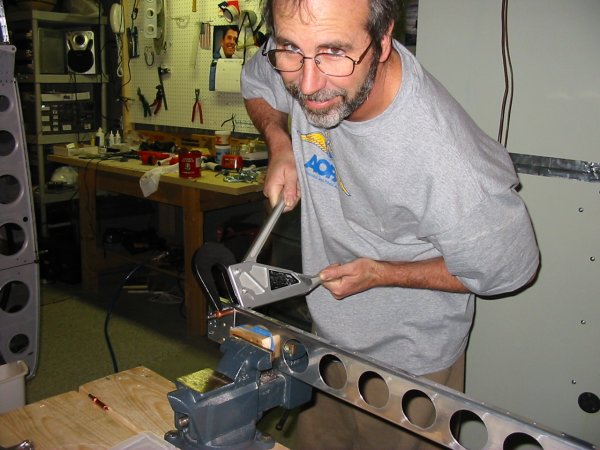

| Dimpling the spar. | ||||||
|
|
||||||
| Riveting the reinforcers to the spar. | ||||||
|
|
||||||
