January 30, 2005 - Right Aileron
Match drilling the nose rib to the spar.
Match-drilling the end rib to the spar.
January 30, 2005 - Right Aileron |
||||||
|

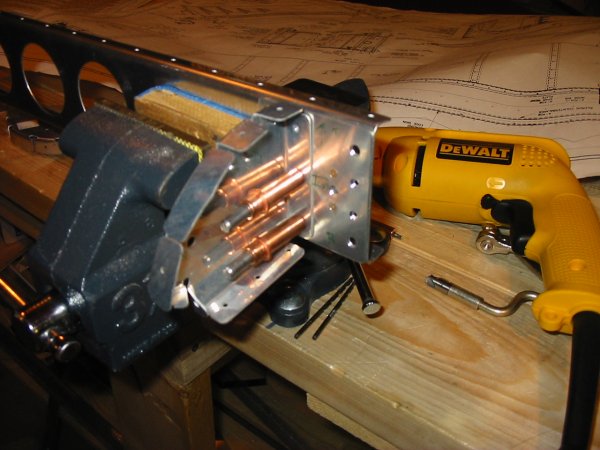

Match drilling the nose rib to the spar. |
||||||
|
|
||||||
|

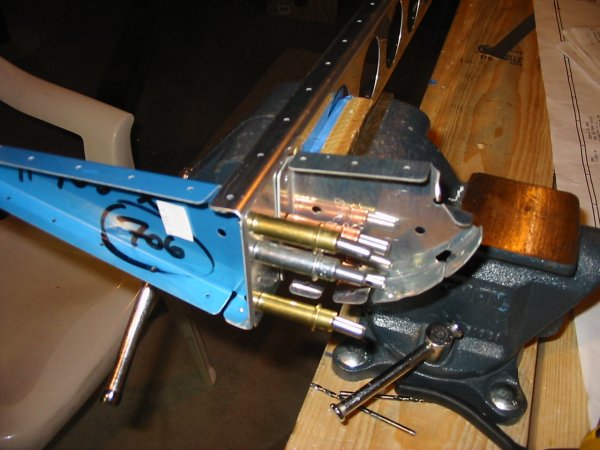

Match-drilling the end rib to the spar.
|
||||||
|
|
||||||
| Cleco the end ribs to the aileron. | ||||||
|
|
||||||

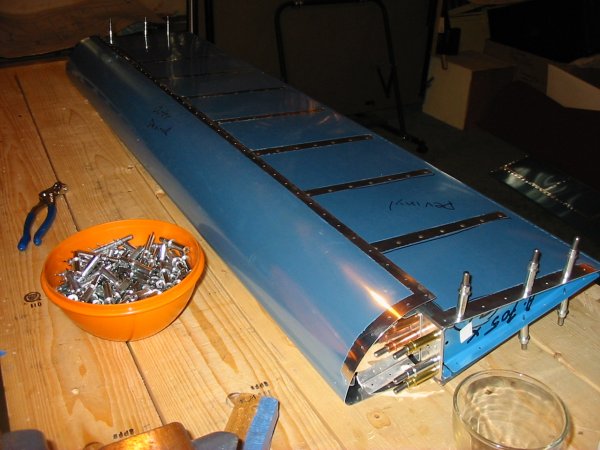

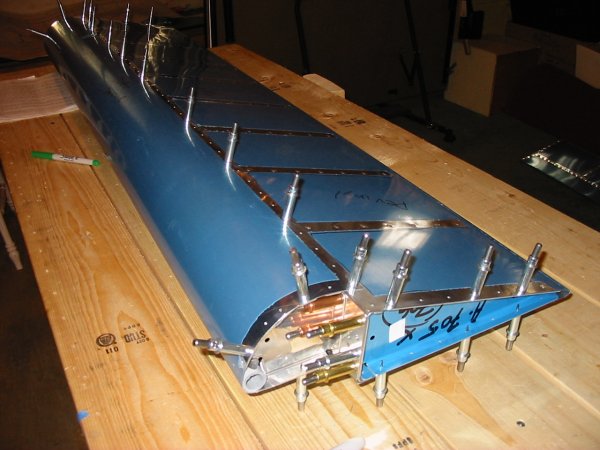

| Now cleco on the leading edge and trailig edge skins. | ||||||
|
|
||||||
| Match-drilling the skins. The aileron is a little different in that the bottom skin to spar holes are #30 instead of the usual #40. That's because they get pop-riveted with LS-4s. | ||||||
|
|
||||||
