October 9, 2007 - Flap Switch

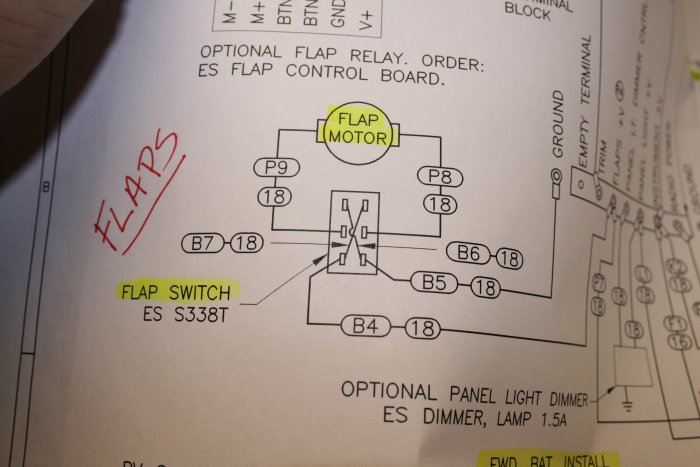

 I decided to wire the Flap switch.  I soon realized I didn't know how to wire it up.  All my other switches were from B&C Specialty and are addressed in the AeroConnection book.  After awhile it occured to me to look on the Vans drawings and sure enough, they had a nice switch layout, seen below.

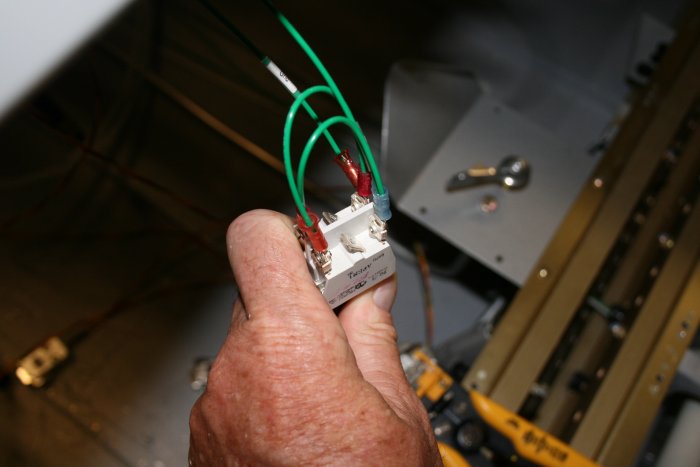

Some time later, there it is.  The two middle terminals connect directly to the flap motor wires.  I wasn't sure which was up and which was down, so I'll wait until I get the power going and see what does what.  The terminals screw onto the switch and it's a pain to do it.

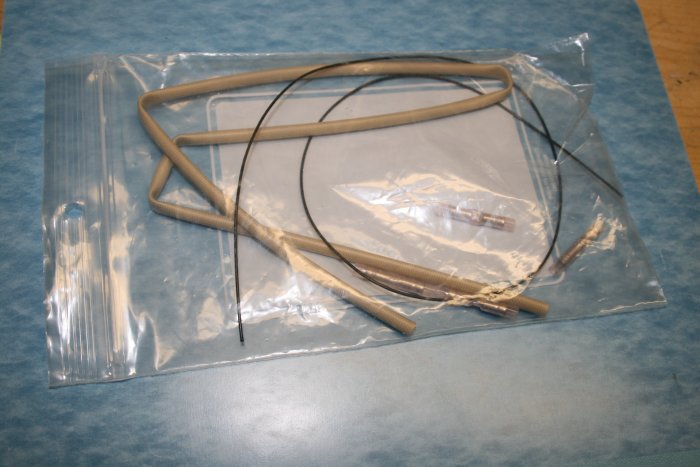

I had bought this fuse link kit from B&C for the Master switch to Main Bus wire.
