October 2, 2007 - Wiring |
||||||

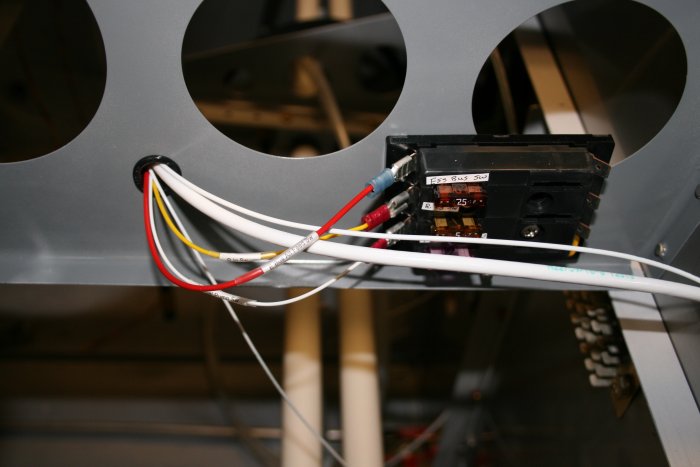

| The wire bundle near the Battery Bus is growing. | ||||||
|
||||||
|

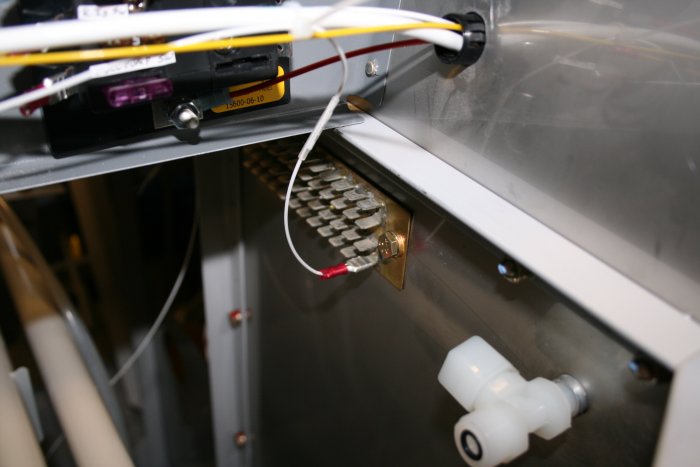

The first wire to the Ground
Bus. I forget what it is for. But check out the
shrink-wrap covered label on the wire. I have started labeling my
wires the way Dan Checkoway
did.
|
||||||
|
||||||
|

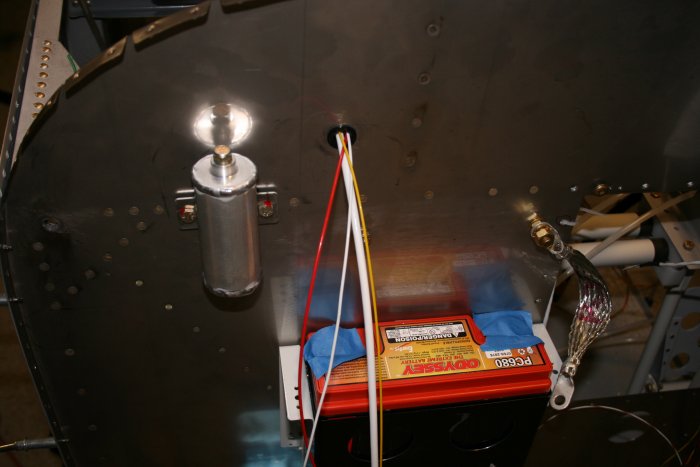

These wires will go to the battery,
master and starter
relays.
|
||||||
|
||||||
| More wires off the LP-3. | ||||||
|
||||||

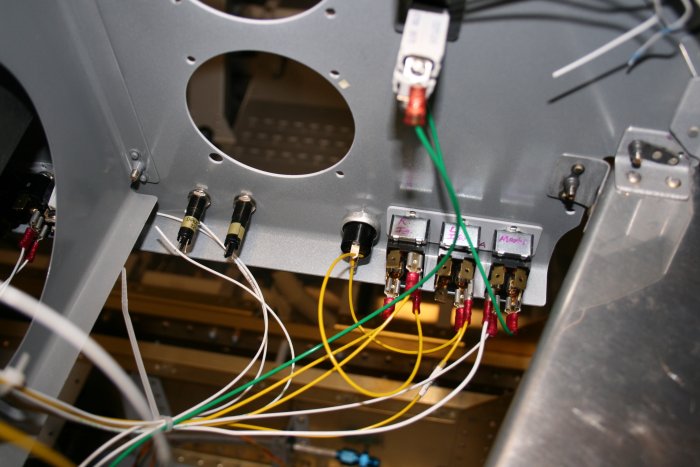

| The three switches on the right are the Master, Left and Right Ignition. The 5AM circuit breaker above is for the alternator field. The Starter button is to the left of the three switches. | ||||||
|
||||||
