March 23, 2005 - Right Wing
The Flap Brace clecoed to the rear spar.  I had to use the gun to rivet it, but it was a fairly easy rivet job.

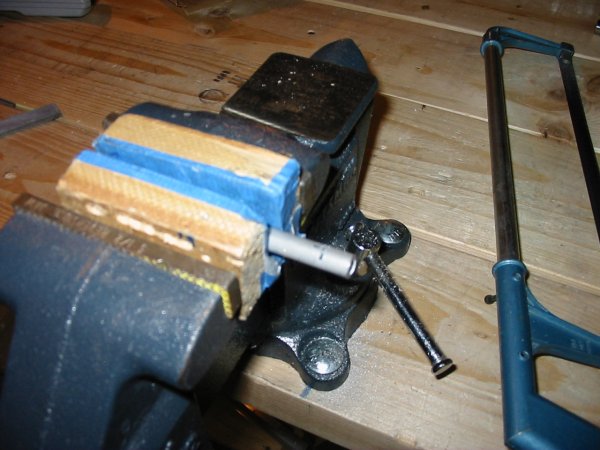

Cutting one of the aluminum spacers for the wing bellcrank.

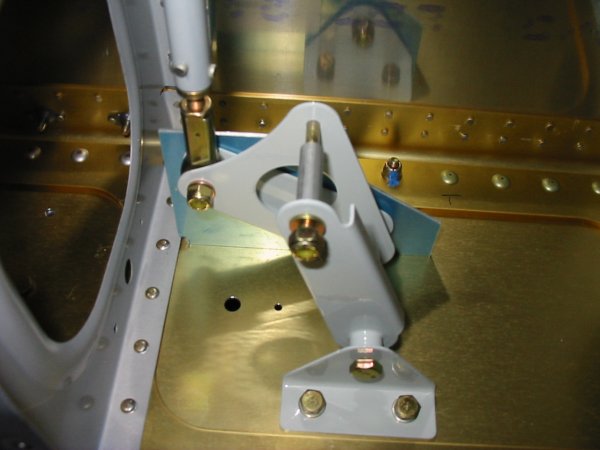

The bellcrank bolted to the wing spar.  The blue piece of aluminum is a jig to help align the aileron.  I havn't permanently bolted the bellcrank yet because I want to install a wing-leveler autopilot but I don't want to buy it until the last possible moment;  the technology changes rapidly.

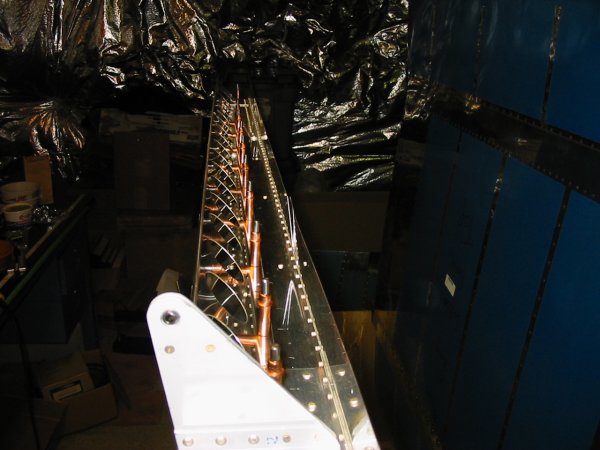

The Aileron bolted to the right wing aileron hinge brackets.
