February 6, 2015 - Drill Bolt Holes in Spar Ladders

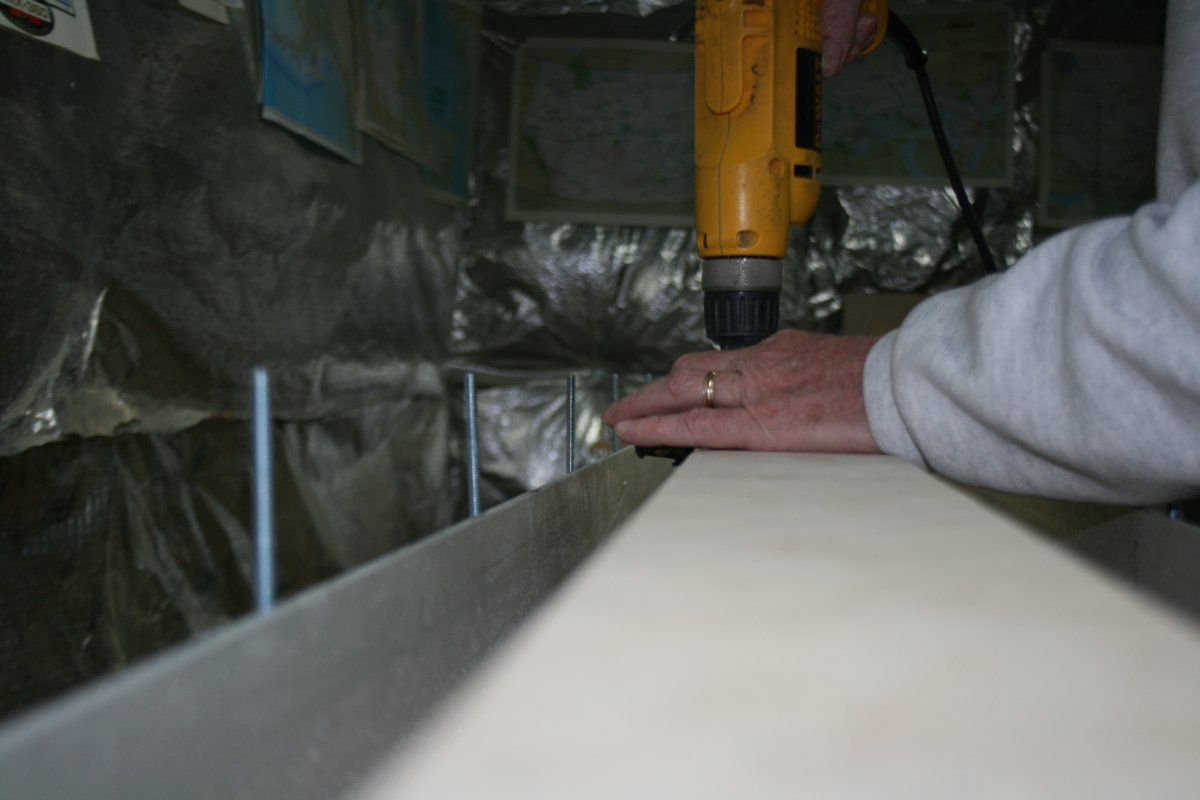

The drill fixture ensures the drill is perpendicular to the work.
February 6, 2015 - Drill Bolt Holes in Spar Ladders |
||||||

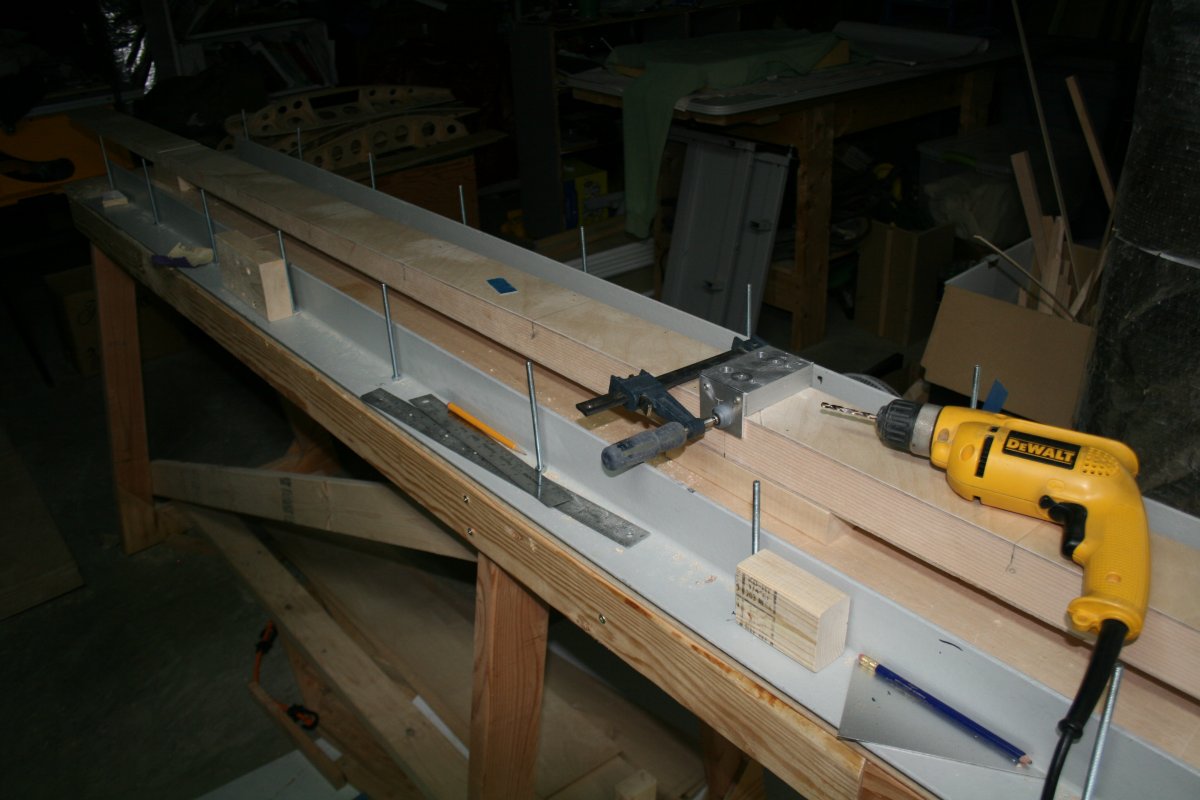

| Now it is time to drill the actual bolt holes through the maple plugs. Again, I use the drilling fixture, clamped to the spar ladder. I use the 1/4" bit for the inboard cabane strut bolt holes, and the #12 bit for the outboard interplane strut and wingtip skid holes. | ||||||
|
||||||
|

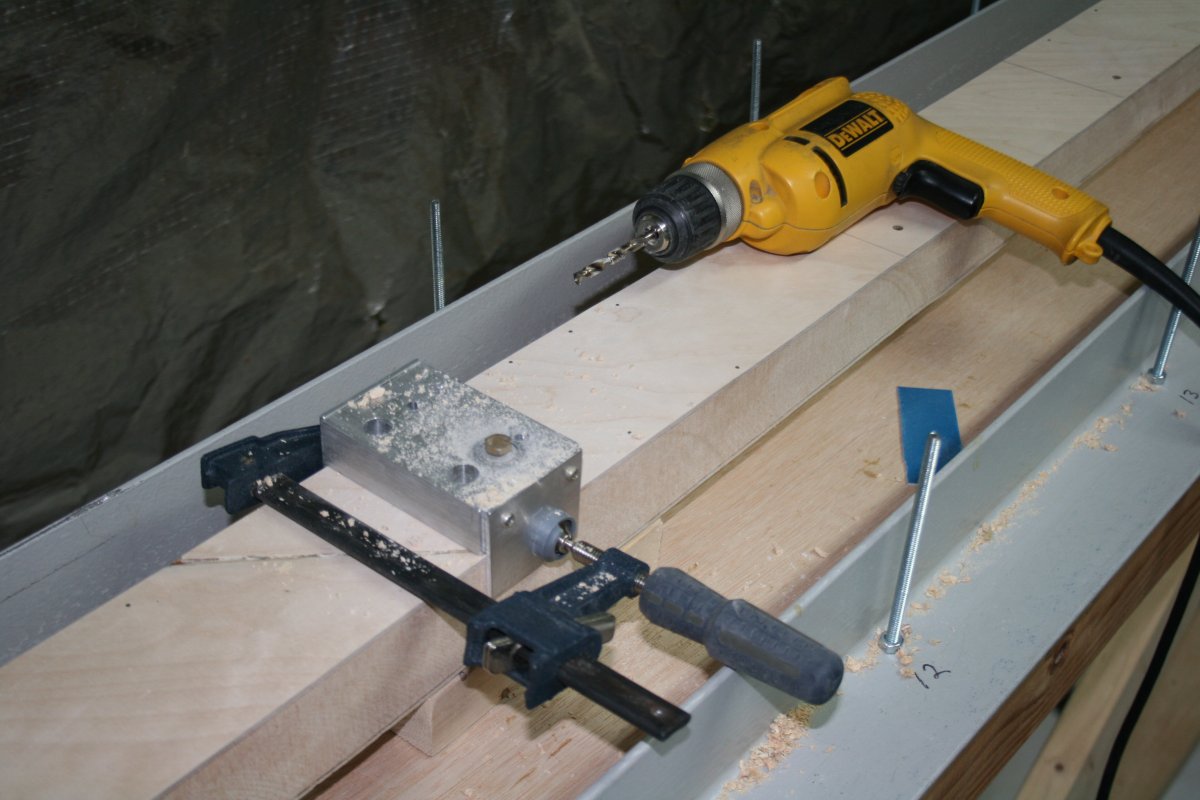

The drill fixture ensures the drill is perpendicular to the work.
|
||||||
|
||||||

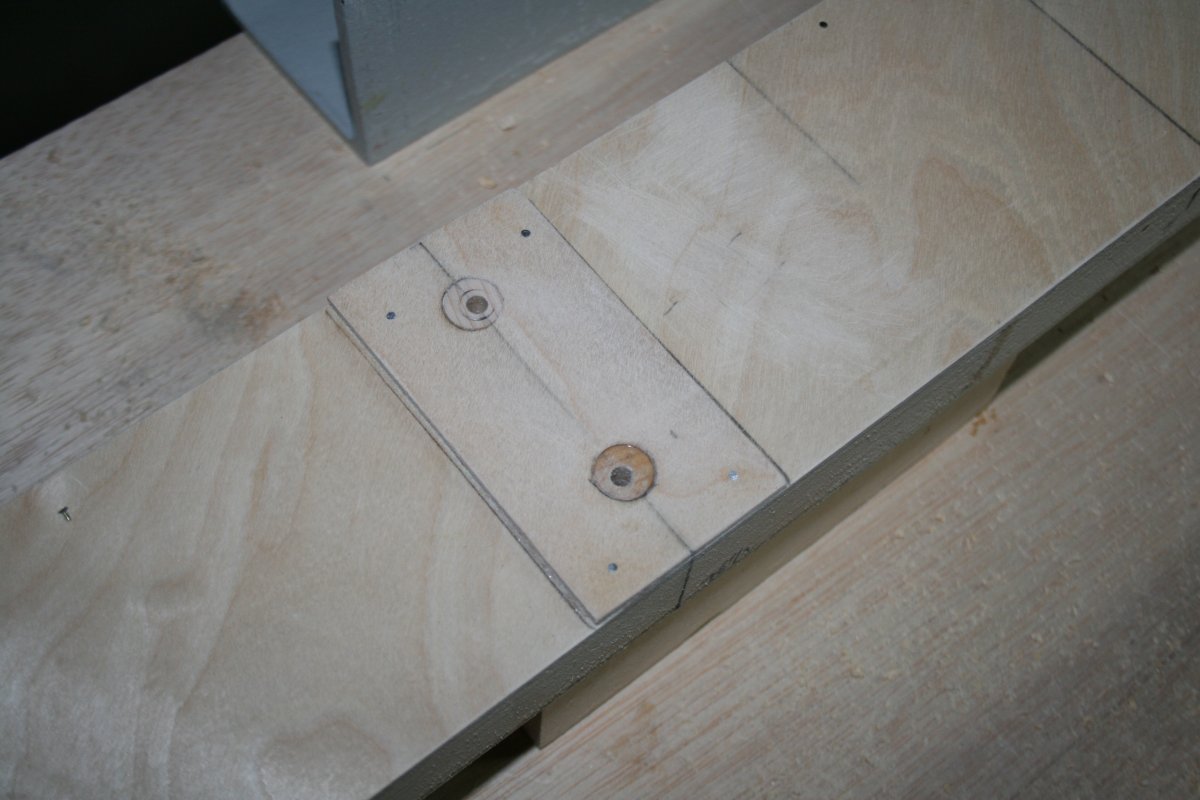

| The drill fixture also ensures the spar bolt holes are directly centered in the maple plug. These are the inboard 1/4" holes for the cabane struts. | ||||||
|
||||||
|
|
||||||
|
||||||
| And these are the outboard #12 (or 3/16") holes for the interplane struts. | ||||||
|
||||||
