April 23, 2004 - Rudder

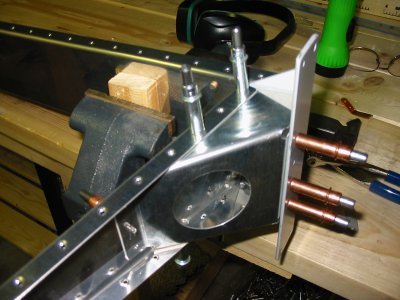

Here I have the Rudder spar, bottom rib and control horn in the vise, ready for riveting.

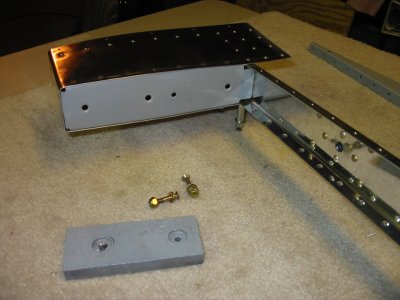

Here is the top of the Rudder spar with the counterbalance rib and skin clecoed on. The counterbalance weight is laying on the carpet.

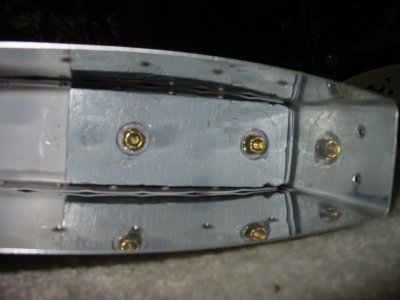

Now the counterbalance rib is safely nestled in the counterbalance rib, and bolted in.
