June 28, 2004 - RV-7 Wing Spar Nutplates
Now I had to install two nutplates on the inboard part of each spar web. Not much too it; just countersink four rivet holes, then squeeze the rivets.

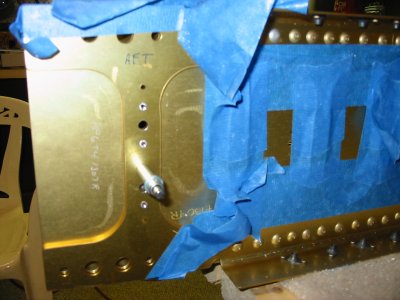

You can see the nutplate.
