September 8, 2007 - Panel & Wiring

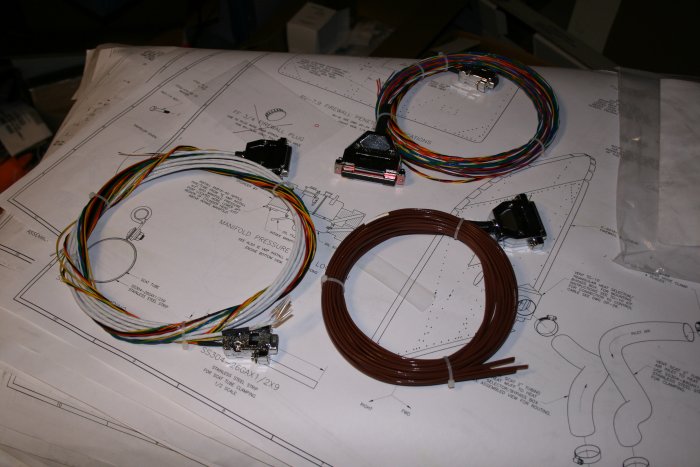

The three Dynon wiring harnesses.

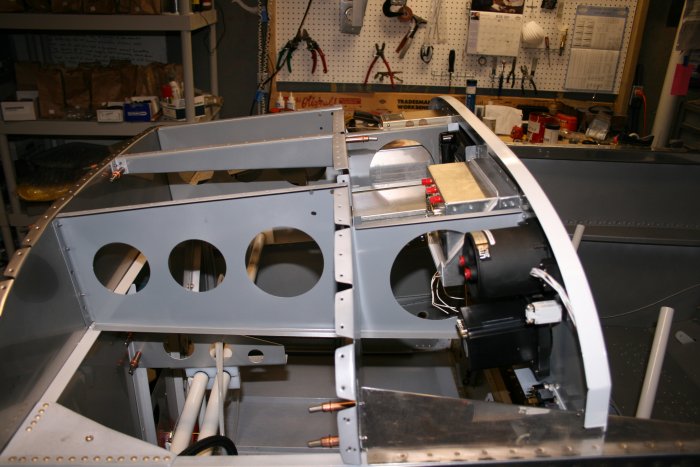

I screwed the panel to the top ribs.  Not for good, though.  There's a bunch of stuff I have to do or determine:  wiring holes through the subpanels, main and essential bus placement, etc.  And, of course, the upper ribs and subpanels still need riveting.

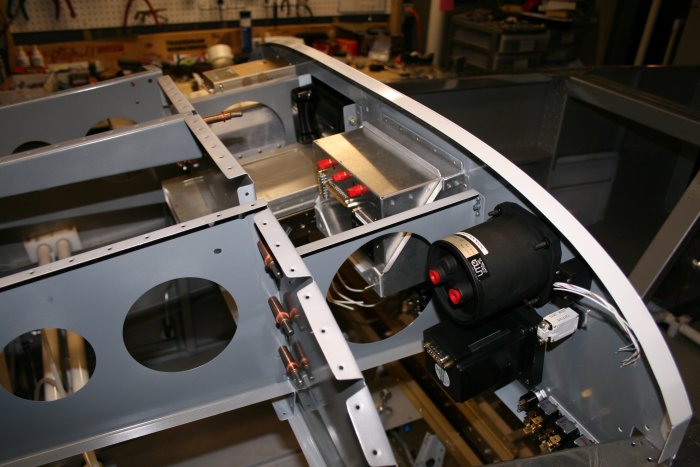

From a different angle.

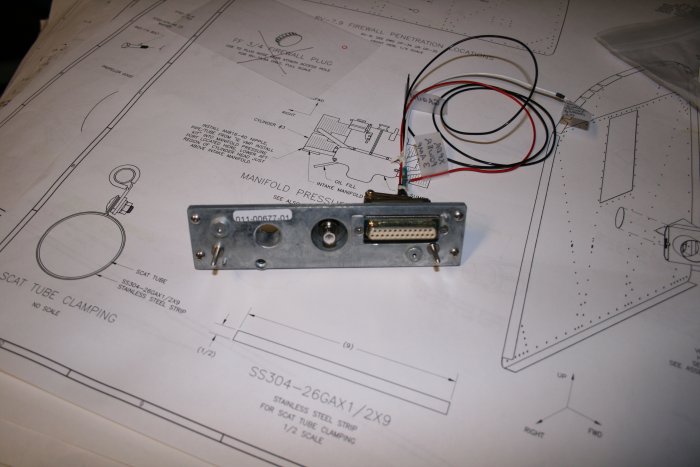

Wiring harness to the transponder.  Not much to it.

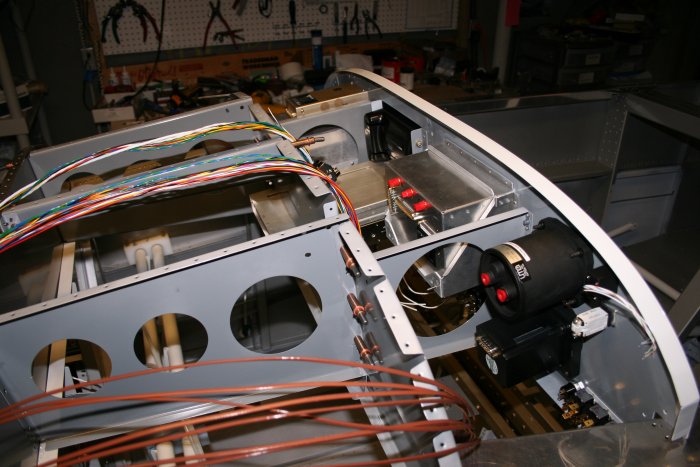

Here I'm trying to figure out how to route the Dynon wiring.
