September 7, 2007 - Heat Valve, Panel
First I taped it
on.
Then I matched-drilled it. No
big
deal.
September 7, 2007 - Heat Valve, Panel |
||||||

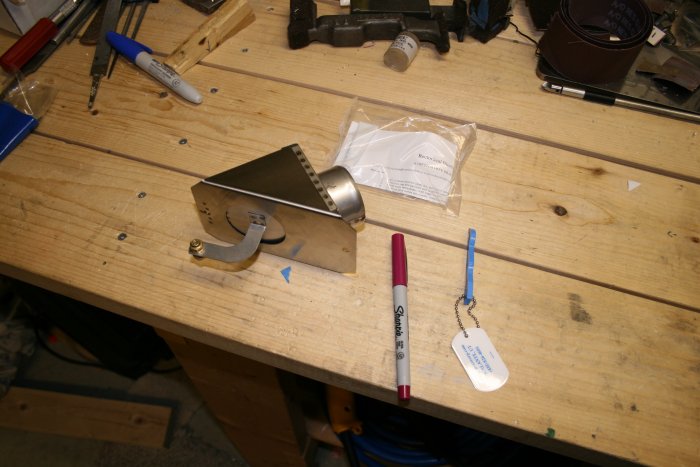

| Having cut the 2" cabin heat hole in the firewall, it's now time to mount the stainless steel heat valve. | ||||||
|
|
||||||
|

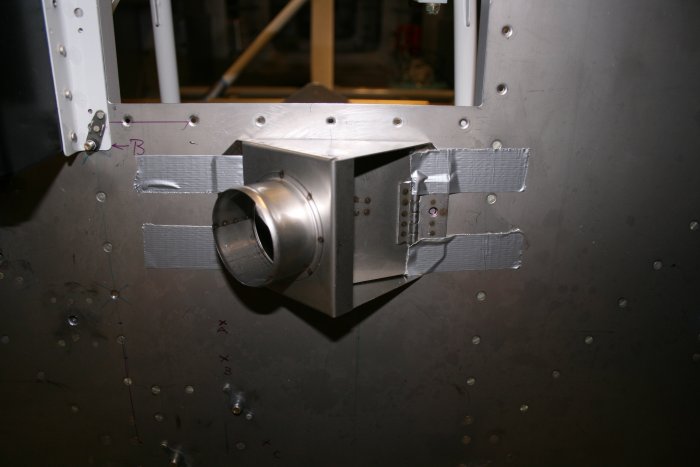

First I taped it
on.
|
||||||
|
|
||||||
|

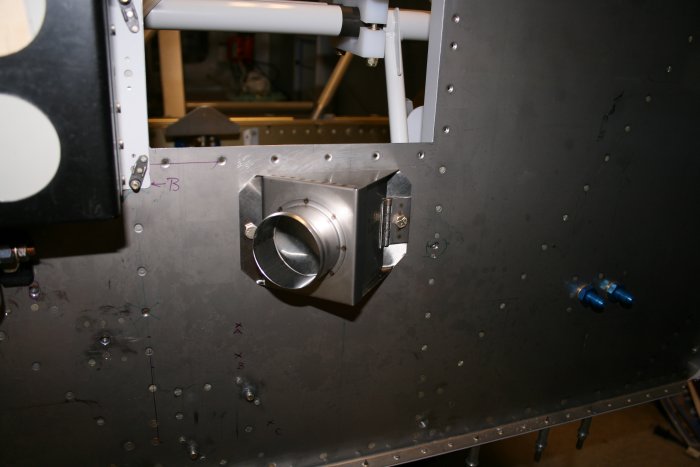

Then I matched-drilled it. No
big
deal.
|
||||||
|
|
||||||

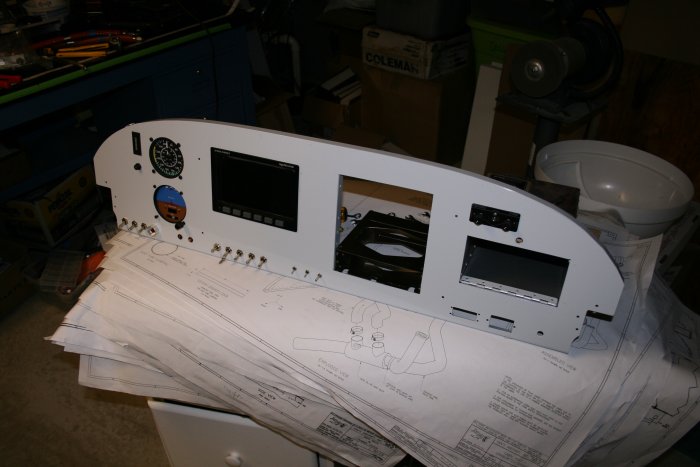

| Putting the avionics and instruments in the panel. The Dynon was a little trouble getting into the tray. I think riveting the try to the panel must have tightened it somehow. | ||||||
|
|
||||||

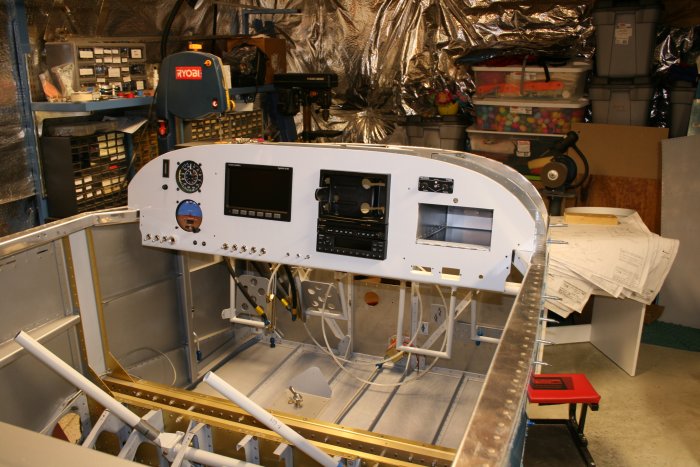

| Looking good! I'm pleased with how my panel looks. I think it looks good. I tried to space things symmetrically so that it looks organized | ||||||
|
|
||||||
