November 3, 2008 - Fuel Selector Valve

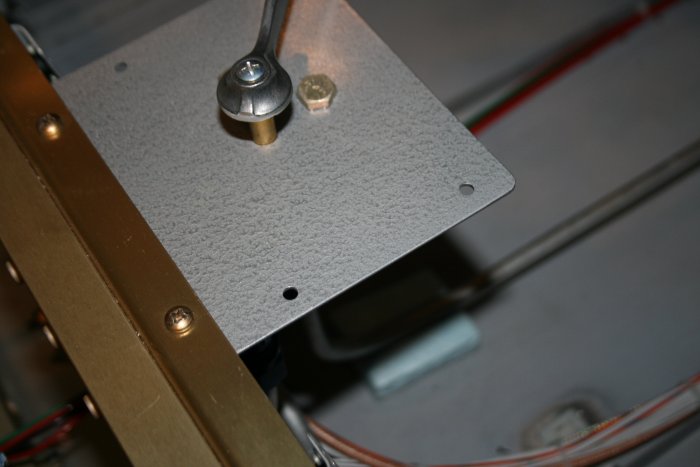

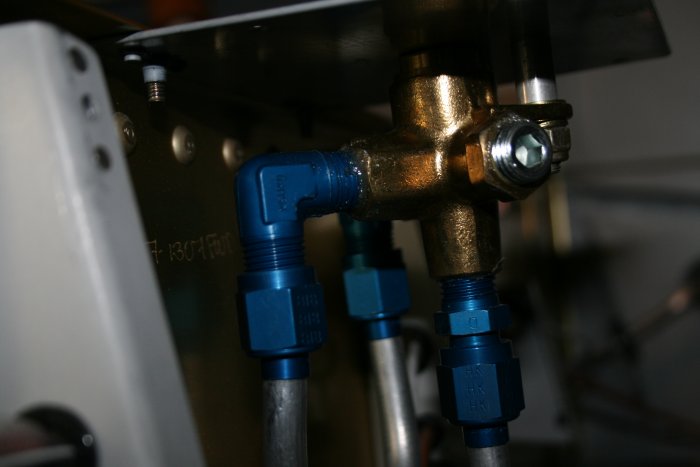

I had never finished making the right fuel line so today was the day.  First I installed the fuel selector valve and hooked up the left and center lines.

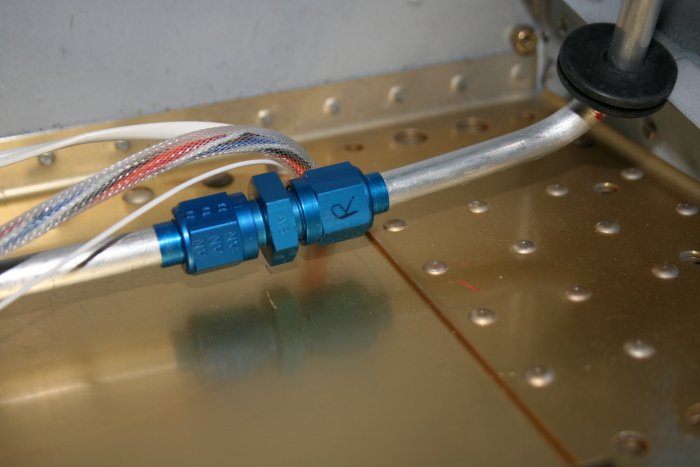

Then I made the right line that runs from the fuel selector valve to the line that runs through the right side of the fuse.  A tip from the forums was a big help.  I also used a spring tube bender instead of my tube bending tool.  It was much easier and seemed to do a better job.

The critical task is always that last flare.  The Parker flaring tool makes it a non-event.  Perfect flare each and every time.
