May 9, 2008 - Floor Baffle Bracket |
||||||

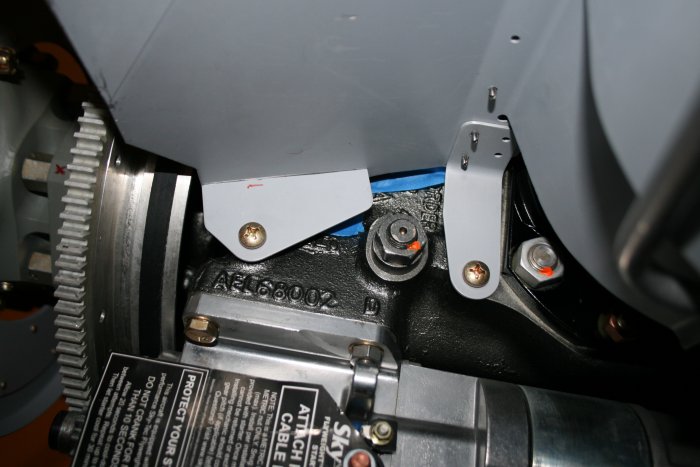

| Tonight I worked on the bracket assembly that holds up the left floor baffle. I trimmed the top of the Van's supplied piece so that it supports the floor baffle properly when screwed to the side of the engine. | ||||||
|
||||||
|

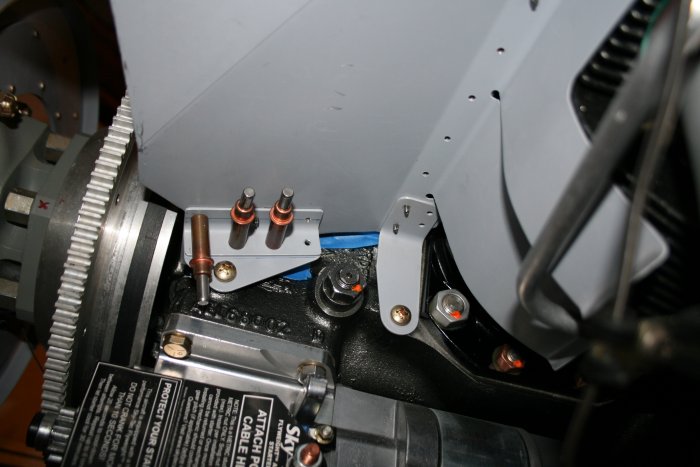

Then I match-drilled the supplied
angle piece to the bracket piece, using the pre-drilled angle holes as a
template.
|
||||||
|
||||||
|

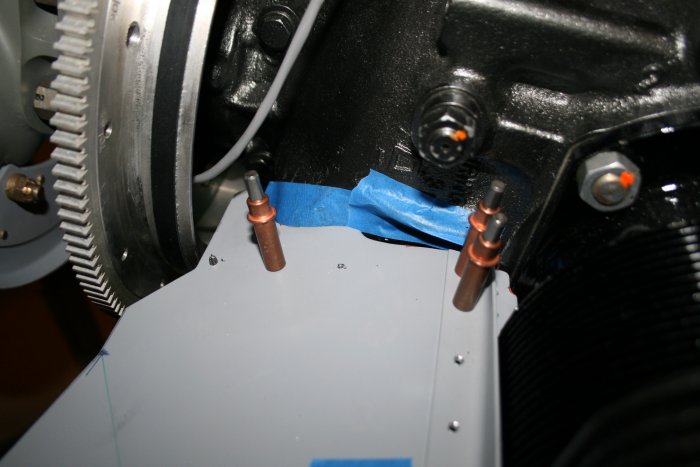

Then match-drilled the floor baffle,
again using the angle bracket as a
template.
|
||||||
|
||||||

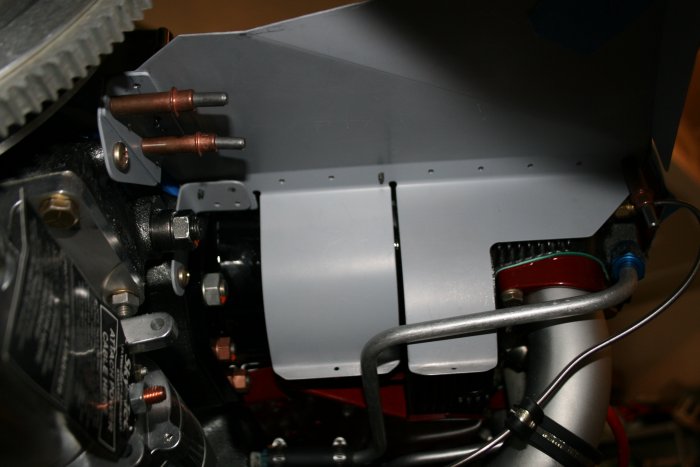

| A good shot of the left floor baffle underside. | ||||||
|
||||||

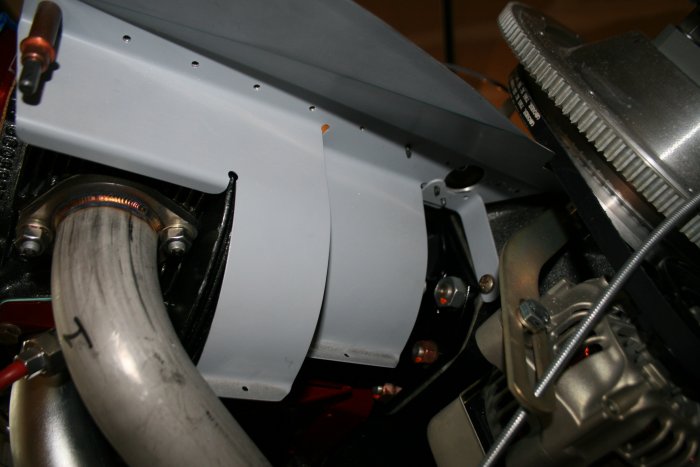

| While I'm at it, here's a shot of the right floor baffle underside. | ||||||
|
||||||
