May 26, 2008 - Air Ducts, Air Seals, Oil Filler Door

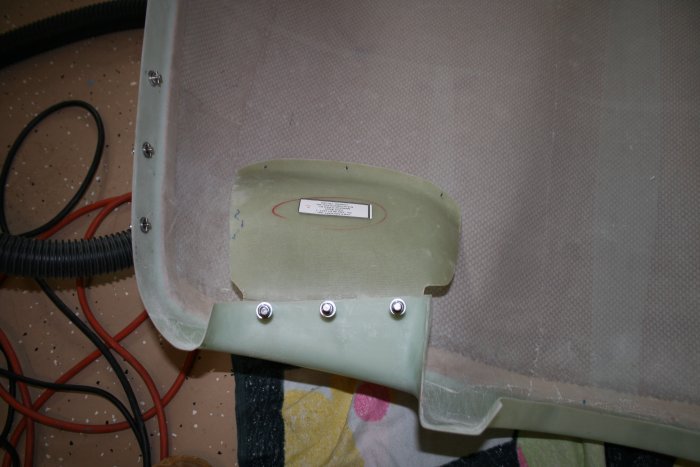

The reason the top cowl didn't fit -- well, one of the reasons -- was that the outboard edge of the air ducts was running into the baffles.  I marked as best I could where the air duct needed trimming.

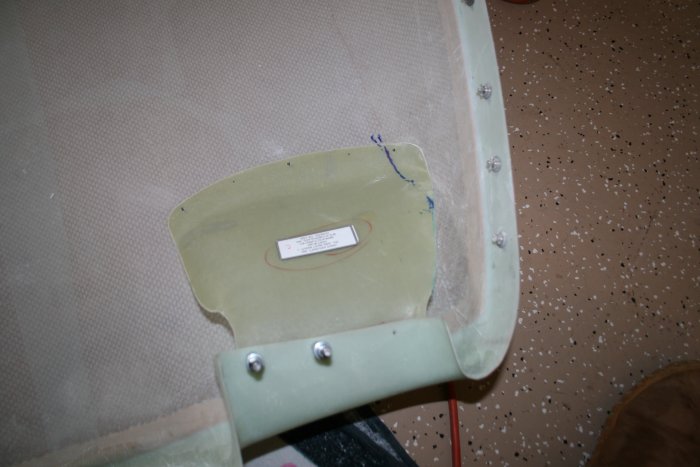

The left air duct after trimming.

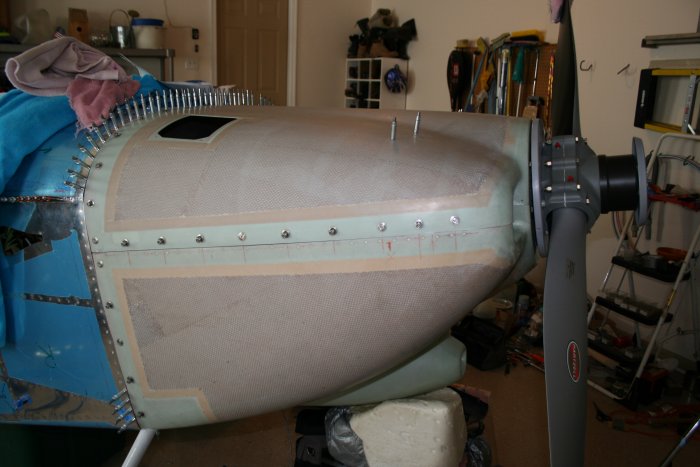

Then the top cowl fit nicely.

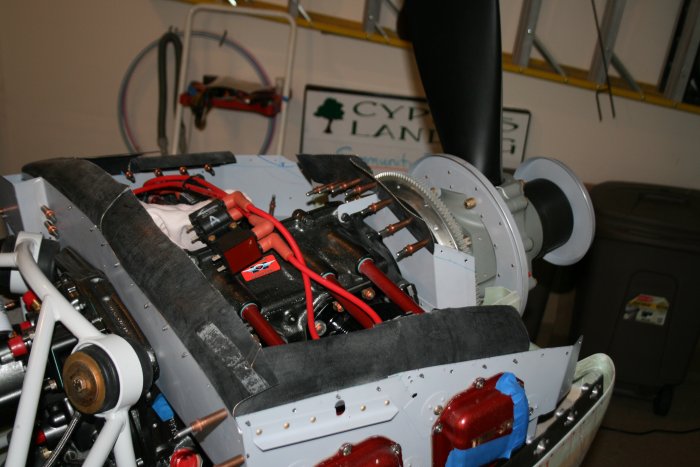

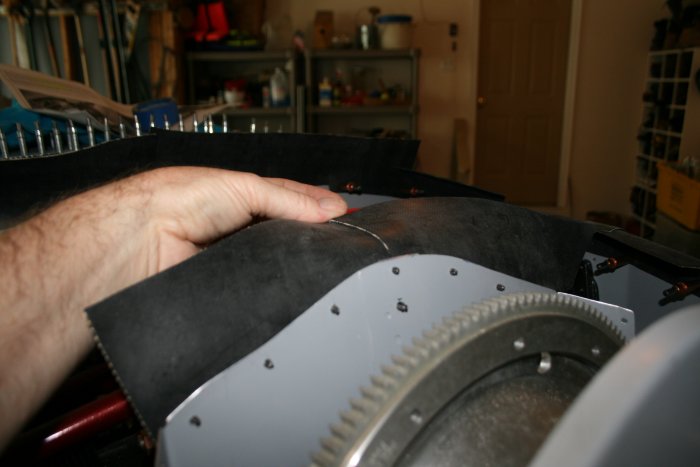

Peering inside the cowl through the nostrils, I could see where the air seals needed adjustments.  I found I had to cut the air seals where the baffle bends were.

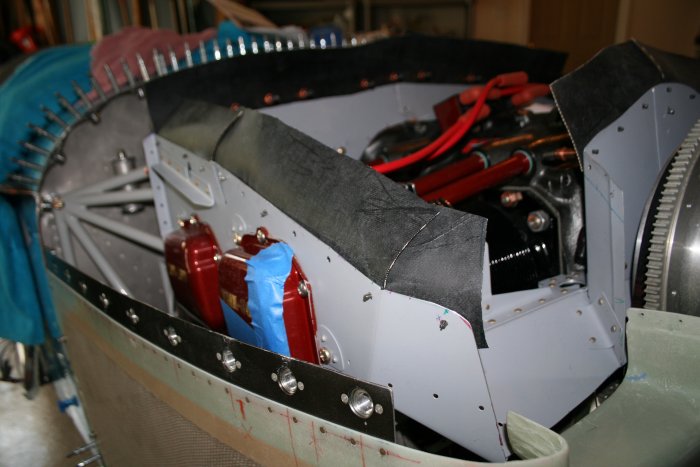

One the front center baffles, the air seals needed a cut down the middle.

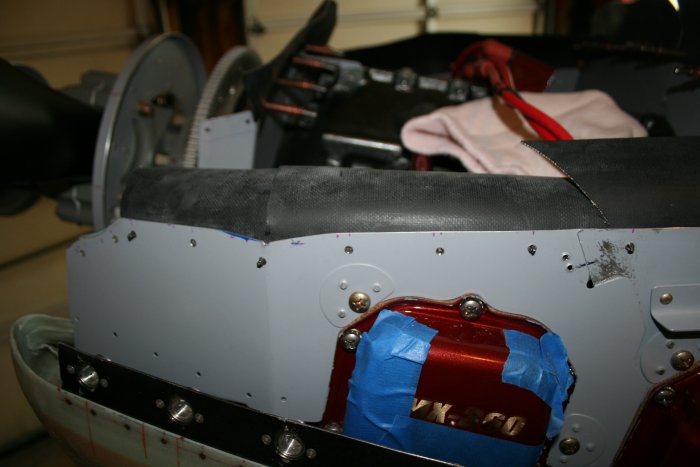

And the right side.

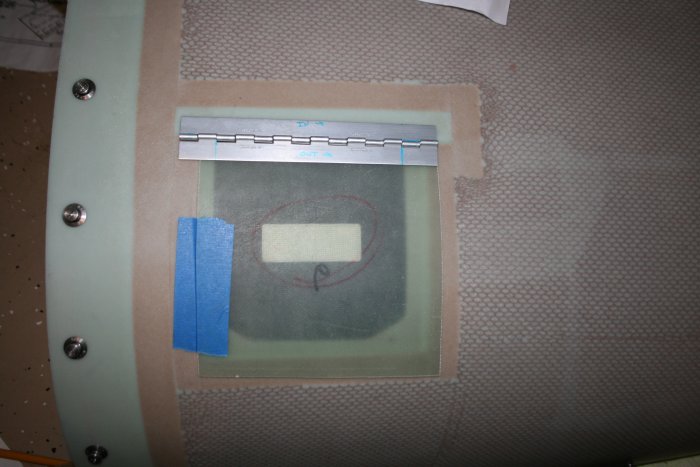

for something different, I did some work on the oil filler door.  I trial-fit the hinge and door.  Both need trimming.  You can see through the door where it needs to be trimmed.

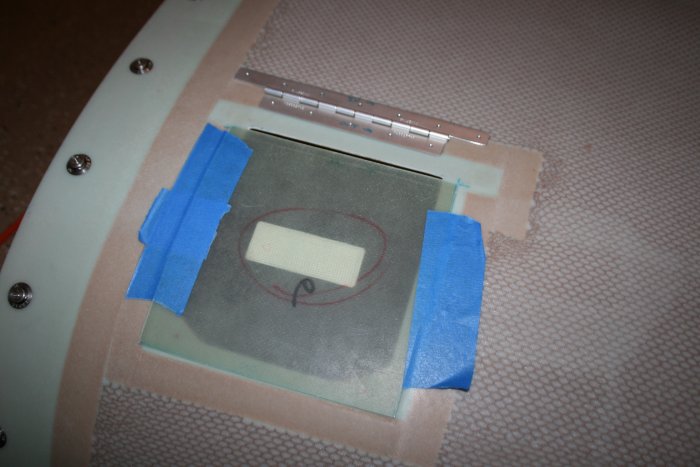

OK, I trimmed the hinge and door.  Although the door needs juuuusssst a little bit more.  I also drilled the rivet holes in the hinge.
