May 22, 2008 - Top Edge Trimming |
||||||

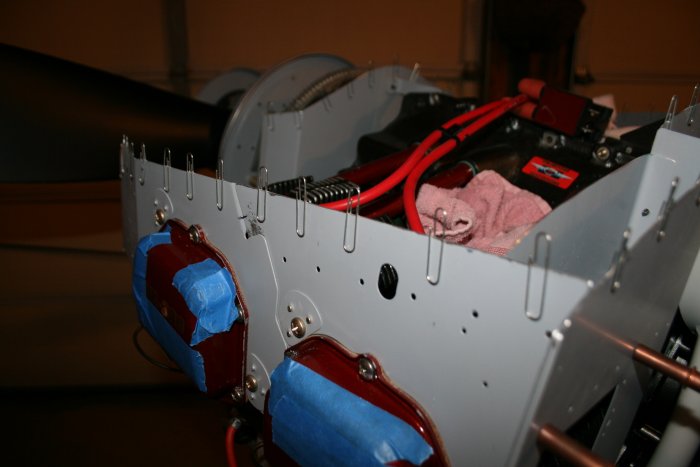

| OK, here's the standard iteration. Install all the baffles and bottom cowl. Then put on the paper-clips into position, making sure they are 1/2" high. | ||||||
|
||||||
|

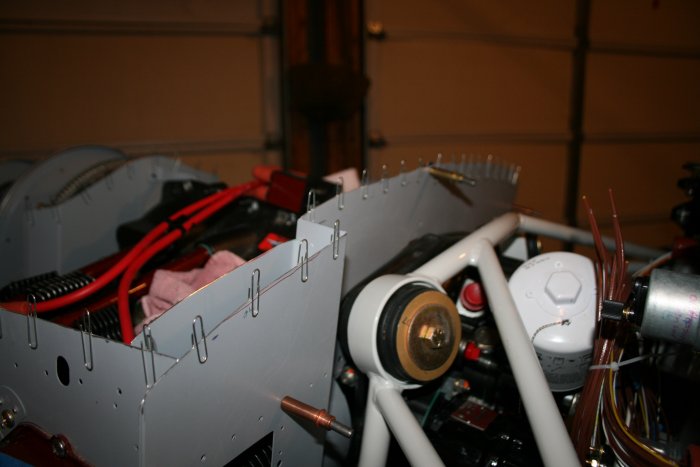

Looking good - ready to
go.
|
||||||
|
||||||

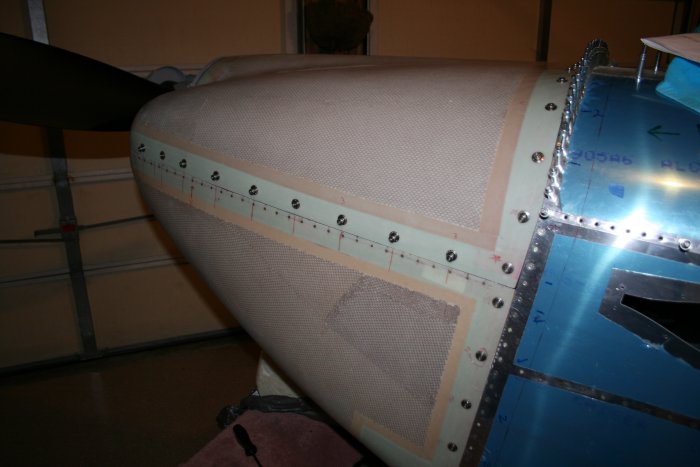

| Then put the top cowl on. | ||||||
|
||||||
|

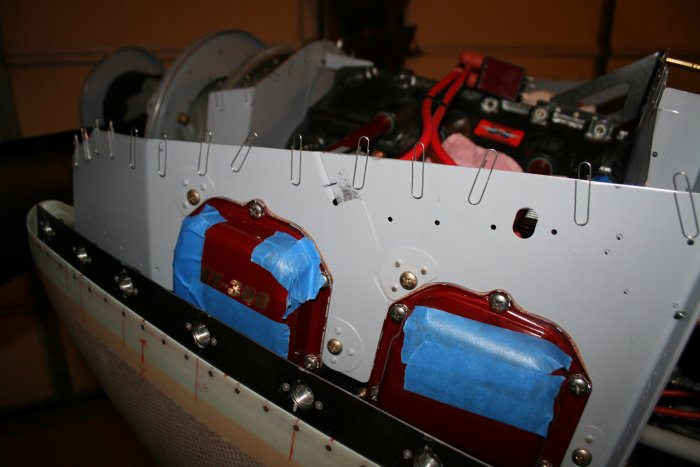

OK, we're finally making some
progress. On the left side, most of the clips are only down about
1/8".
|
||||||
|
||||||

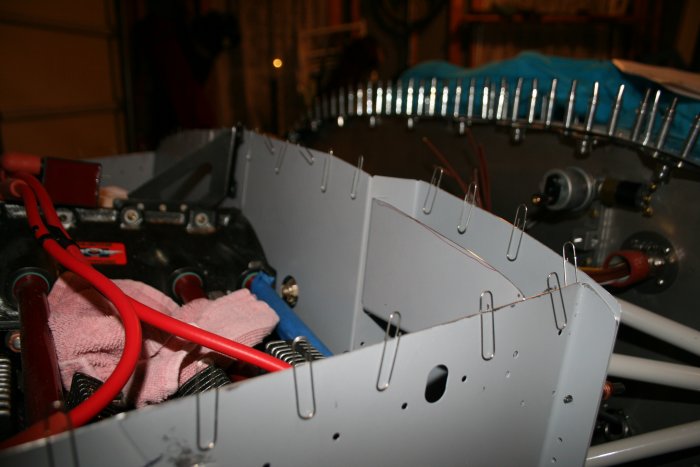

| The clips in the center area of the aft baffles are still pushed down quite a bit. | ||||||
|
||||||

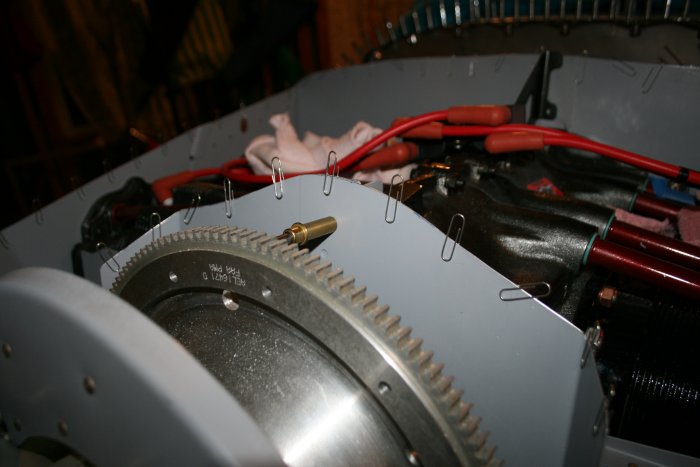

| But the front baffles are good, except for the corners. | ||||||
|
||||||

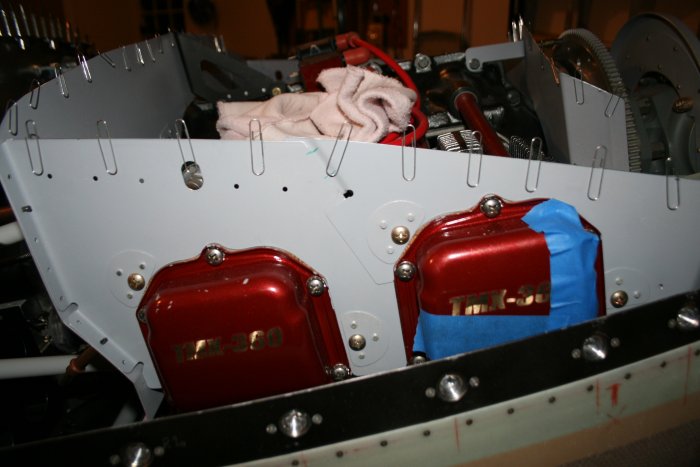

| The right side is just about there. | ||||||
|
||||||
|

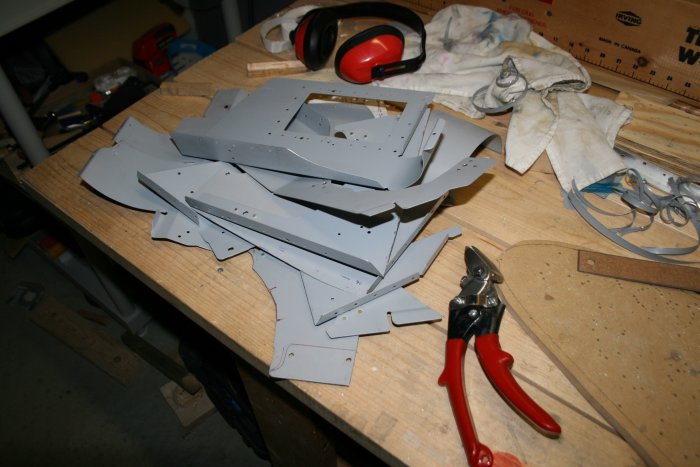

After marking with the Sharpie,
everthing comes for trimming.
|
||||||
|
||||||
