May 18, 2008 - Riveting Baffles

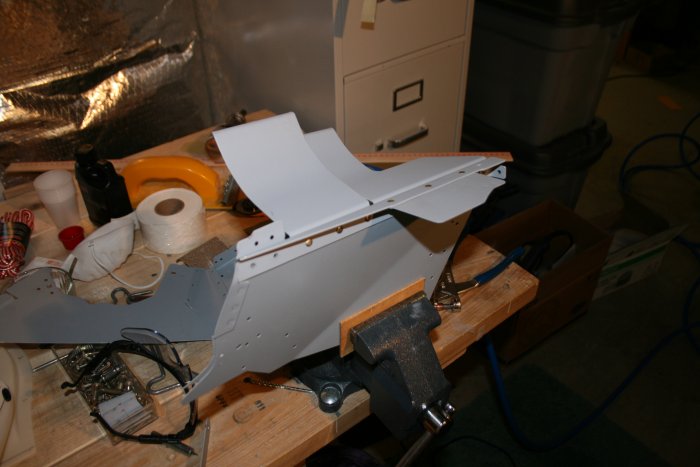

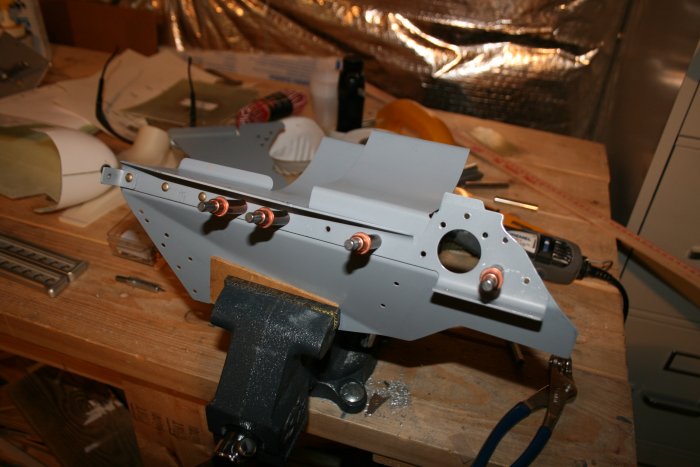

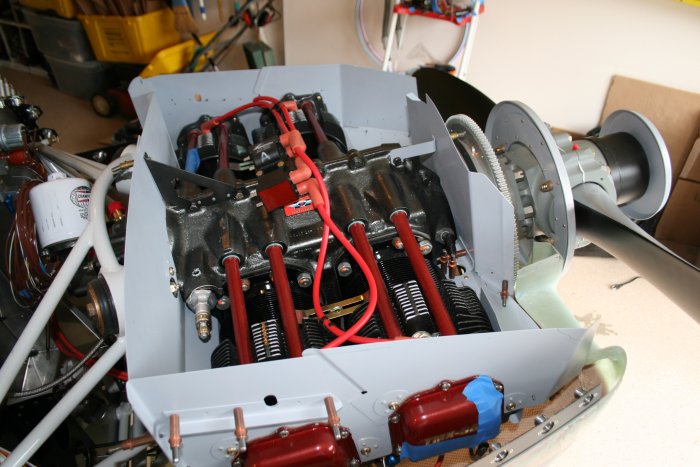

After some priming, I started riveting the floor baffle assembly together.  It was fun to do some riveting; it has been a long time.  I used both the Main Squeeze and the rivet gun.  This is the right side.

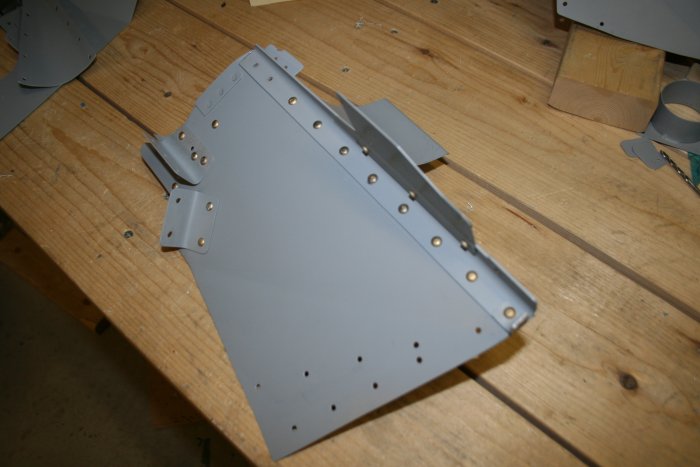

Left side.

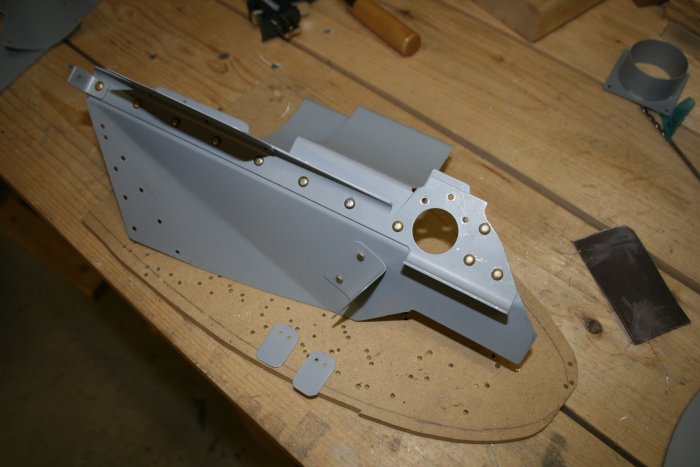

I also made the two little rectangular clips.

I held off on riveting the side and front baffles for now.

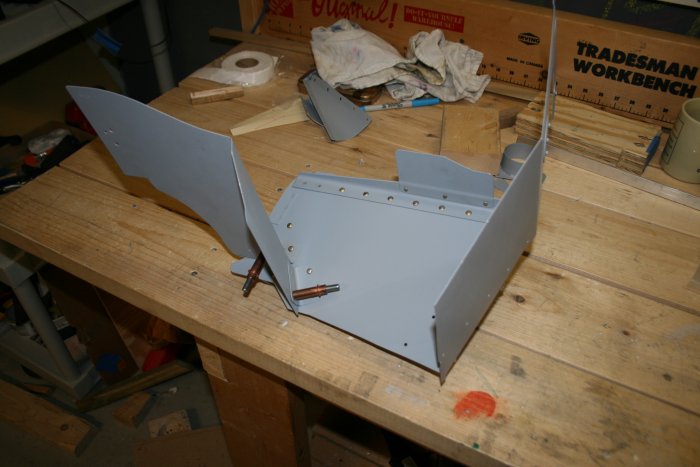

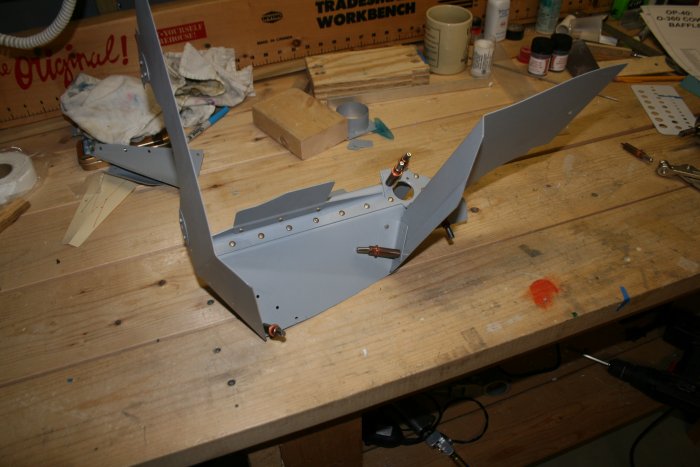

Good shot of the front baffle assemblies.

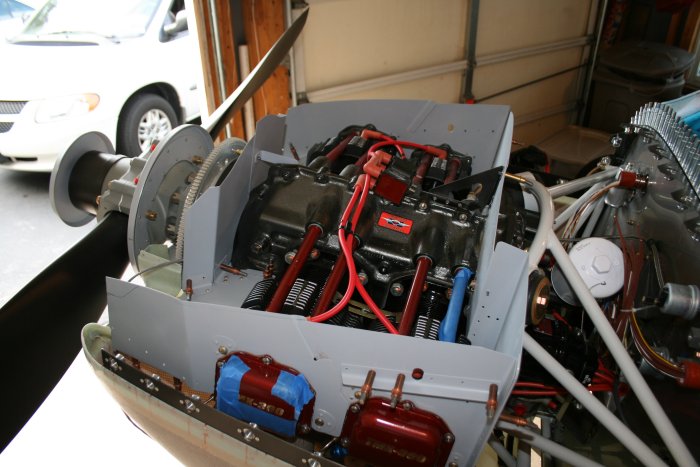

And now mounted on the engine.

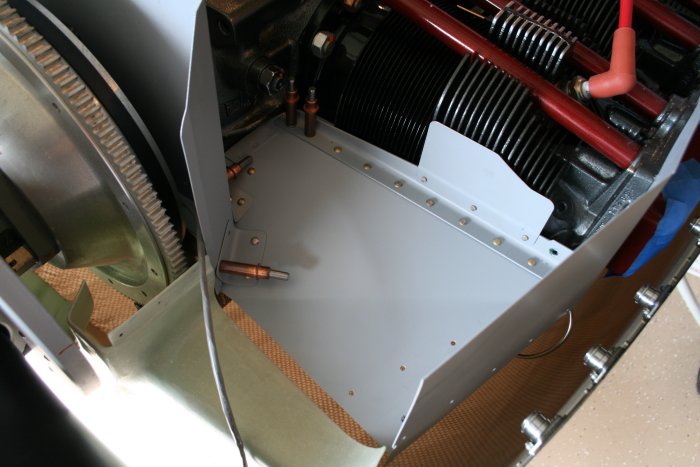

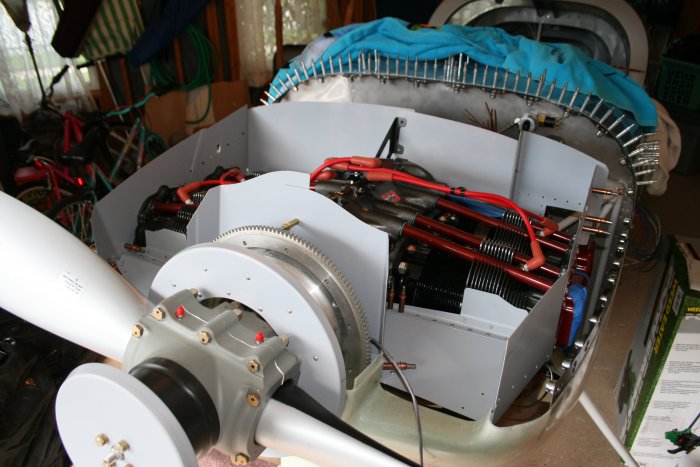

Right front.

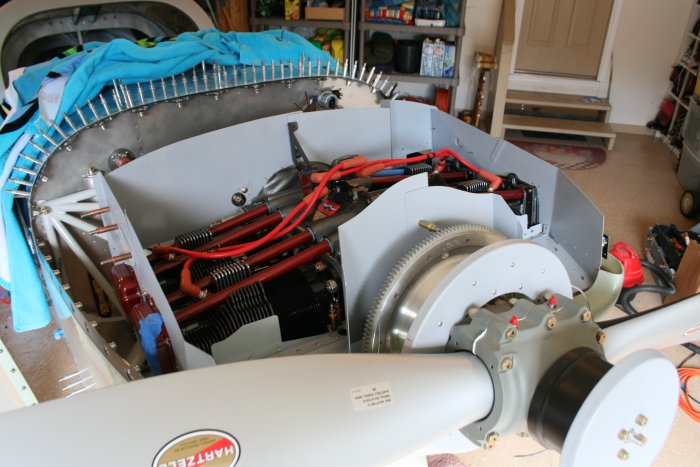

Left front.


Next step is trim the top edges so they are aligned horizontally.

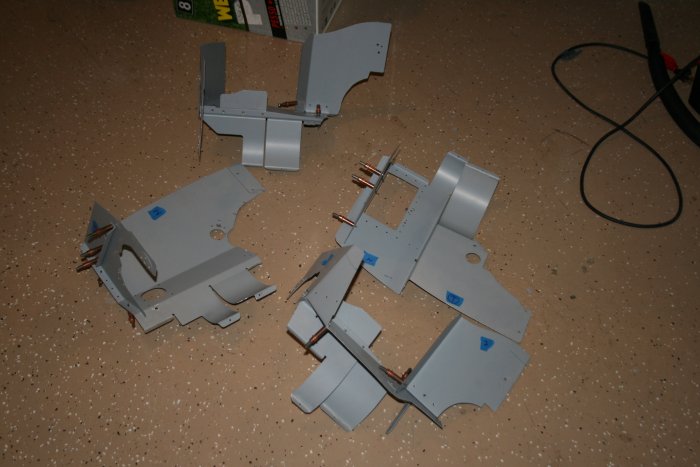

So I removed all the baffle assemblies.

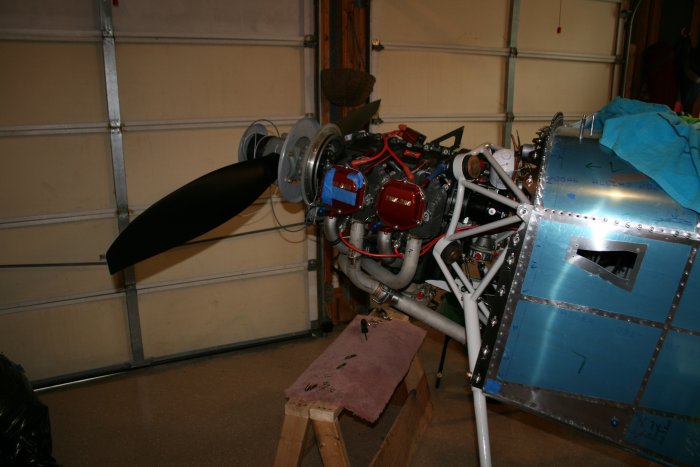

Sans baffles....
