May 9, 2006 - Flap Mechanism

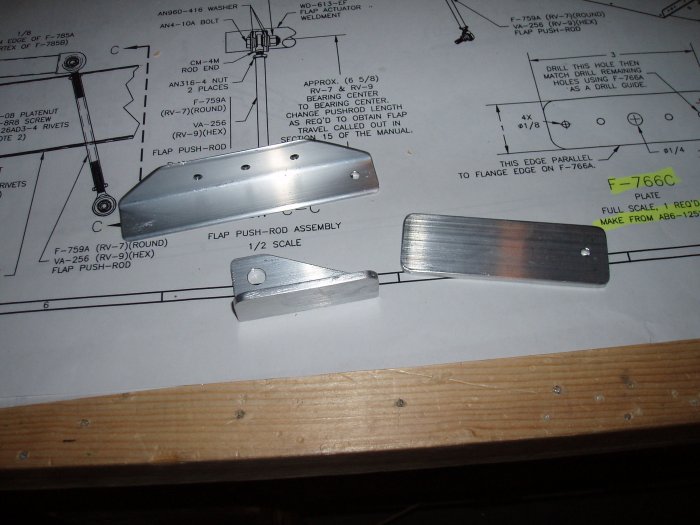

I fabricated these pieces for the flap actuator mechanism out of angle and plate stock according to the drawings.  The angle on the left is supposed to be at 87 degrees verses the normal 90.  I wasn't sure at first how to do it.  I ended up just putting it in the vise, then tightening slightly.  It seemed to work pretty well;  we'll see how the final fit comes out.
