August 9, 2006 - Forward Panels

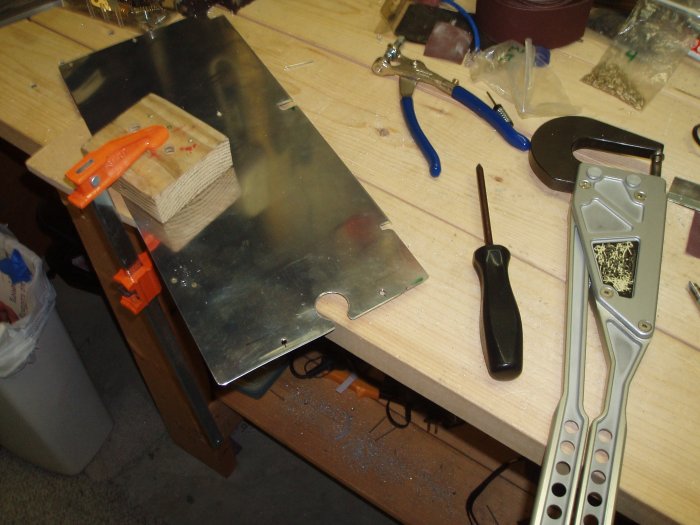

I was away from the project for about a week due to the family vacation.  The first thing to do now that I'm back is finish the forward panels.  Here I'm installing nutplates on the right front panel.

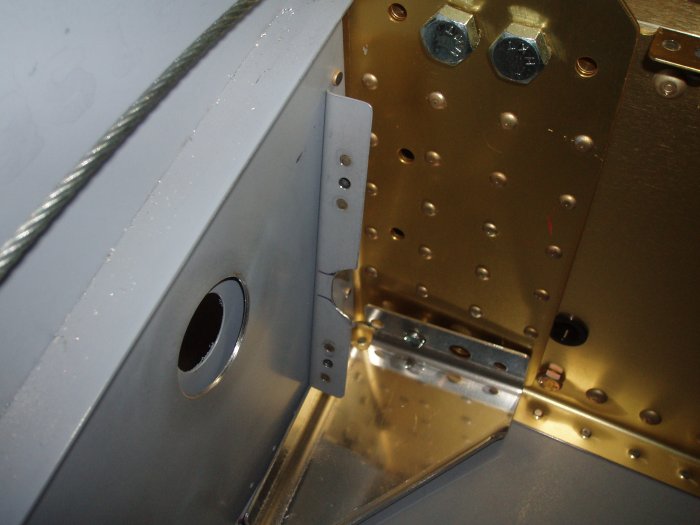

I installed the nutplates on the side brackets and dremeled out the semi-circle notch.  Then I pop-riveted the side brackets to the fuselage side.

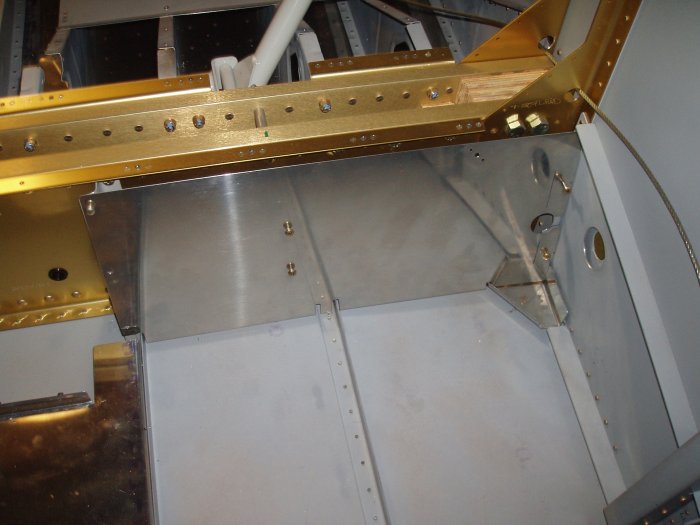

There, the forward panels are done.  This is the left forward panel sort of screwed in place.
