May 5, 2006 - Forward Cover |
||||||

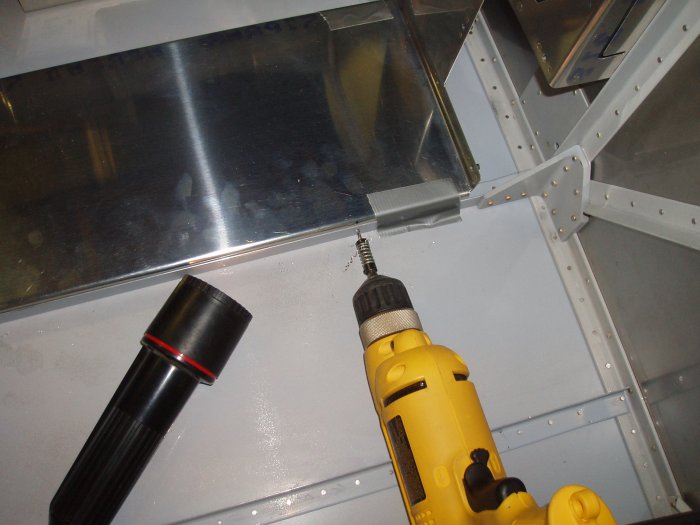

| I secured the Center Cabin Cover with duct tape, then drilled holes in the bottom skin angles at four spots per the drawings. I also match-drilled two holes in the Firewall Recess, using the Center Cabin Cover as a template. | ||||||
 |
||||||
|

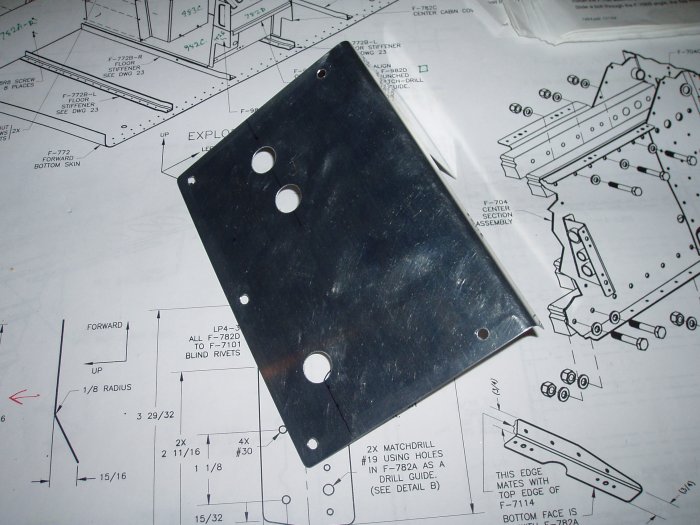

I drilled 1/2" holes in the F-982 Access Plate per the drawings.
|
||||||
 |
||||||
|
At this point, the instructions simply stop. But there are still
the things to do with the forward cover. The drawings tell the

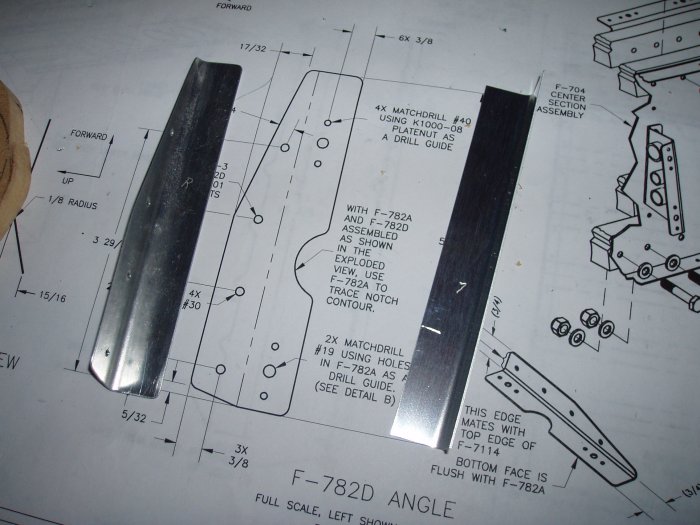

tail. First I fabricated the F-782D angles. The left one is
done; the right one is still stock.
|
||||||
 |
||||||

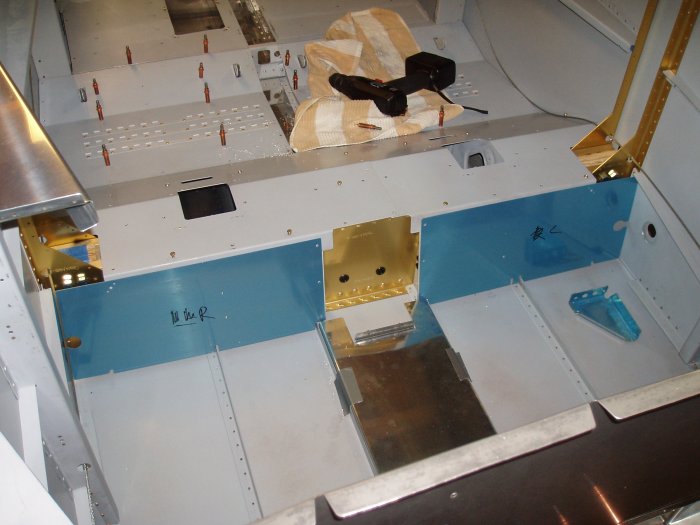

| Then I trial-fitted the F-704 forward panels. I had to widen the bottom notches where the bottom skin reinforcing angles are. | ||||||
 |
||||||
