August 28, 2006 - Left Cabin Frame Bracket |
||||||

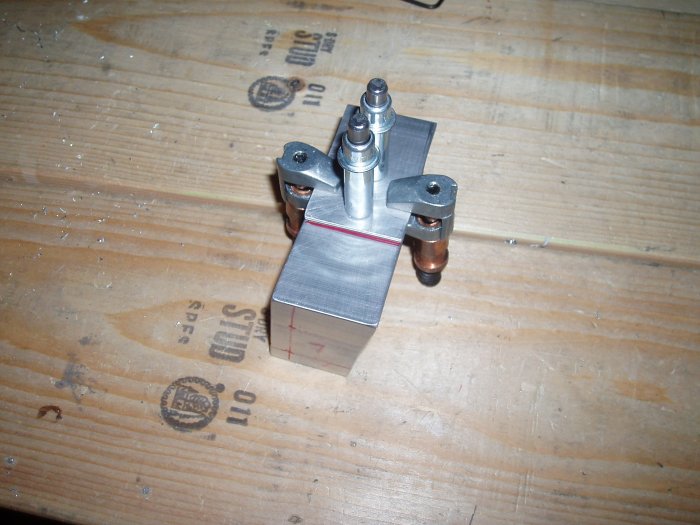

| I started working on the cabin frame left mounting bracket. First I put them in the cabin frame, then clamped them together for drilling the holes for the keeper rivets. | ||||||
|
|
||||||
|

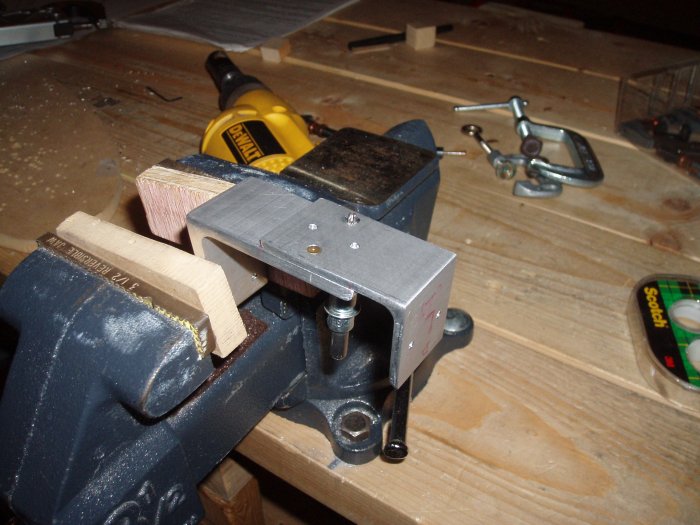

Next I riveted the keeper rivets.
|
||||||
|
|
||||||
|

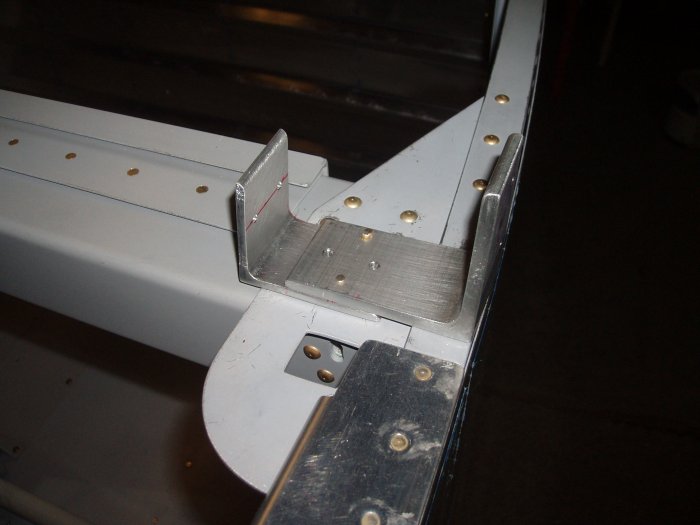

Then I drilled the bracket to the fuselage for AN4 bolts. I
started with #30 and went went up incrementally to 1/4.
|
||||||
|
|
||||||

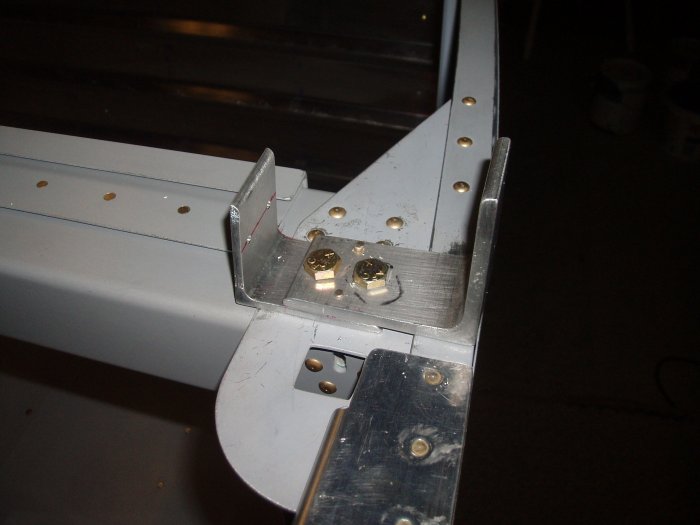

| With the holes drilled, I bolted the bracket on. Left bracket complete. | ||||||
|
|
||||||

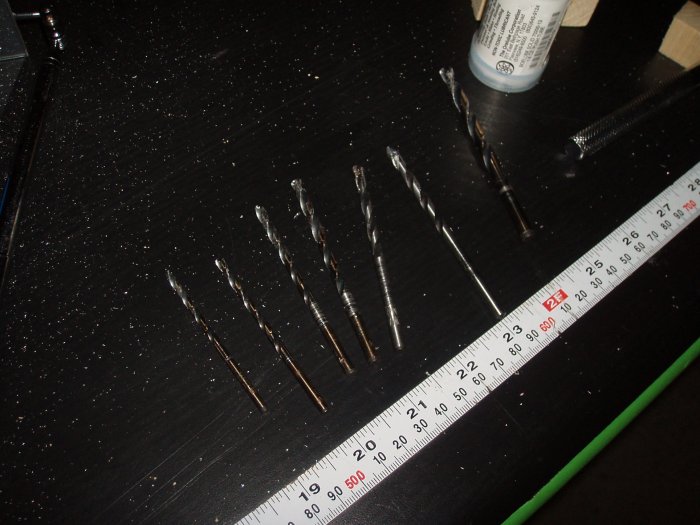

| The series of drill bits I used. | ||||||
|
|
||||||
