December 11, 2005 - Forward Fuselage |
||||||
| Today I drilled the longerons on the left side. | ||||||
 |
||||||
|

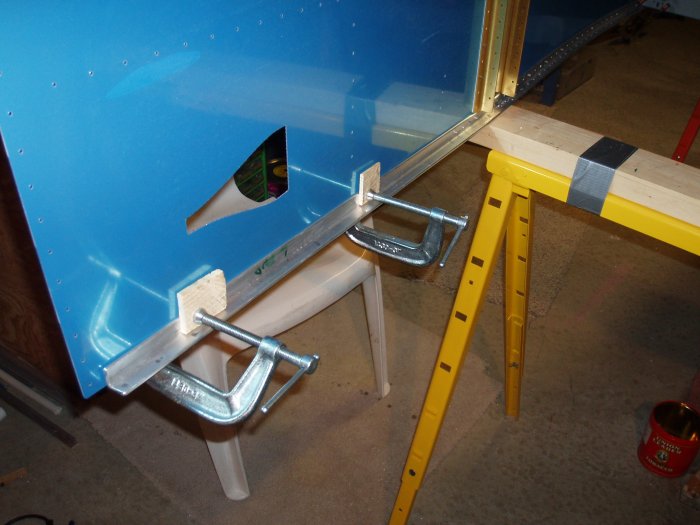

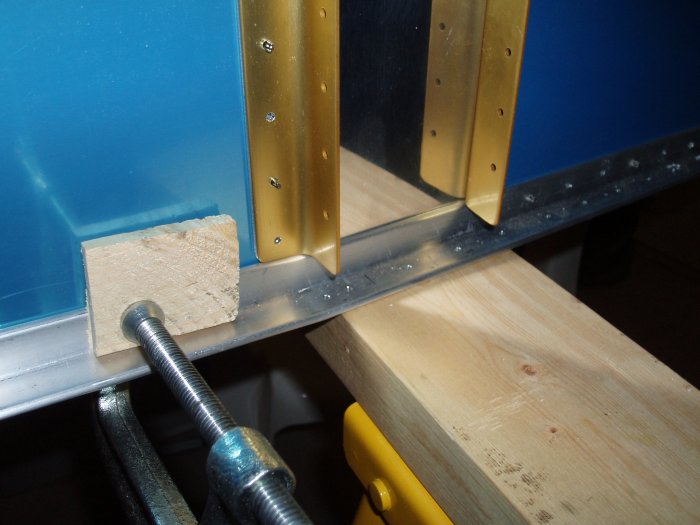

To keep the longeron even with the skin edge, I used the clamp with
wooden blocks so as to not scratch the angle or skin. You can see
how the F-704 side angles rest on top of the longeron.
|
||||||
 |
||||||
| I finally finished drilling the longerons. The next step was to drill the side skins and bottom skin joint. | ||||||
 |
||||||
|
It may not look like fun but it beats drilling the longerons.
|
||||||
 |
||||||

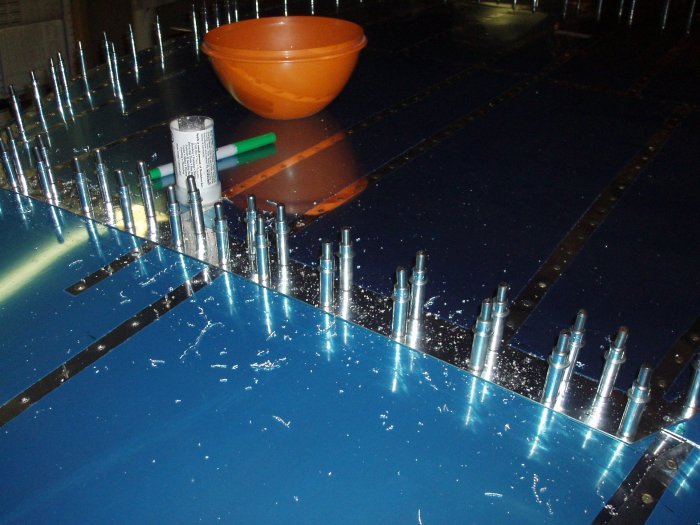

| A close look at the side skin joint. You can see they are joined by a double row of rivets. | ||||||
 |
||||||

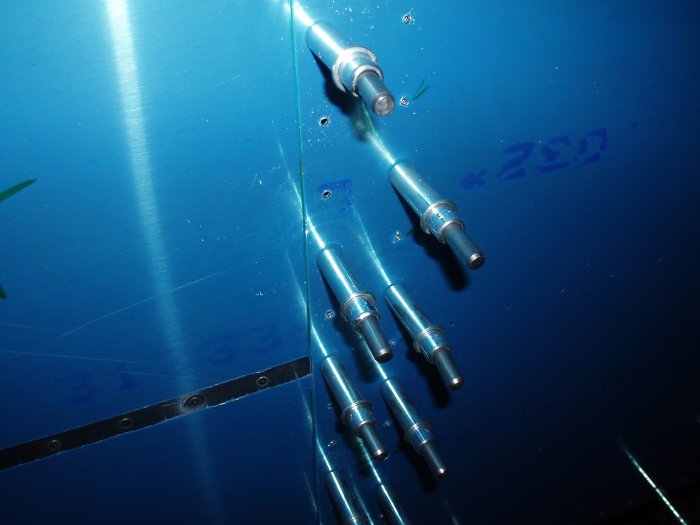

| Same with the bottom skin joint -- double row of rivets. | ||||||
 |
||||||

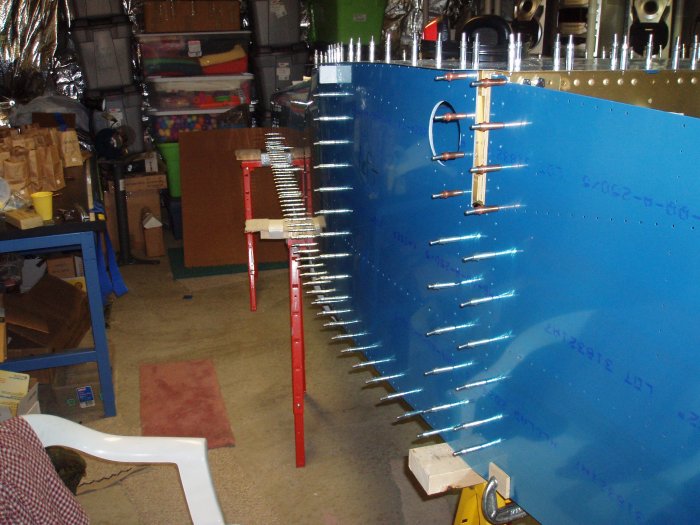

| I still had more longeron drilling to do -- from the F-704 bulkhead to the forward end. I also had to trim the forward end of the longeron a little; so it was 3/4" aft of the skin. | ||||||
 |
||||||
|

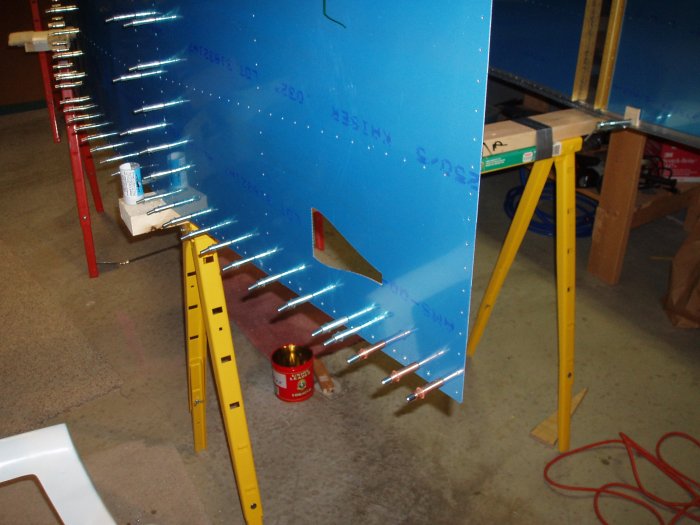

The left longeron is complete!
|
||||||
 |
||||||

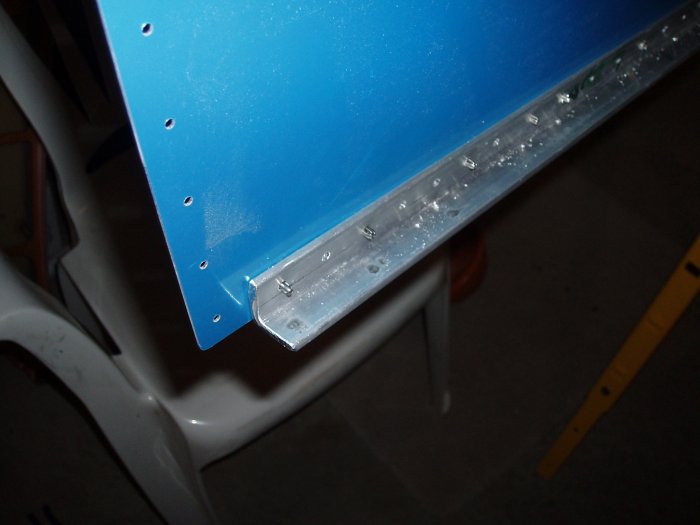

| A close look at the forward end of the left longeron. | ||||||
 |
||||||
