October 10, 2005 - Center Fuselage
Then the aft ribs get clecoed to the F-705 bulkhead.
October 10, 2005 - Center Fuselage |
||||||

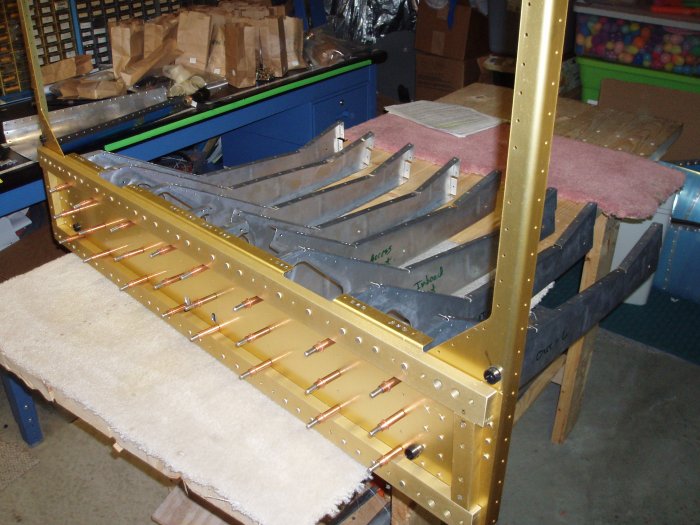

| Now comes the fun part -- clecoing the structure together. First the forward ribs get clecoed to the aft F-704 bulkhead. | ||||||
|
|
||||||
|

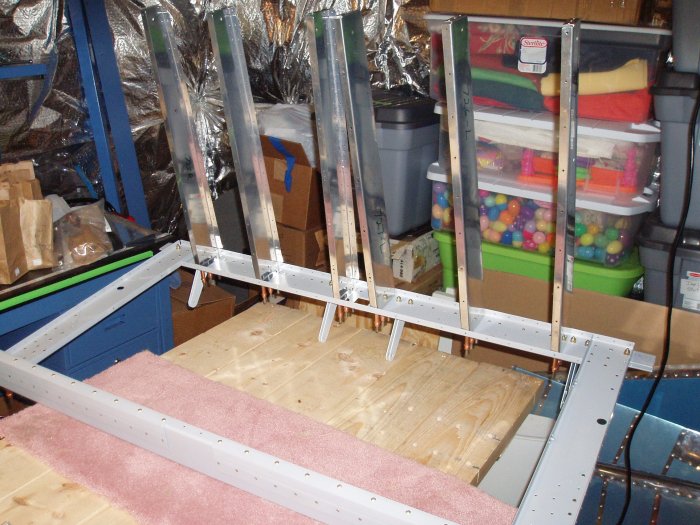

Then the aft ribs get clecoed to the F-705 bulkhead.
|
||||||
|
|
||||||

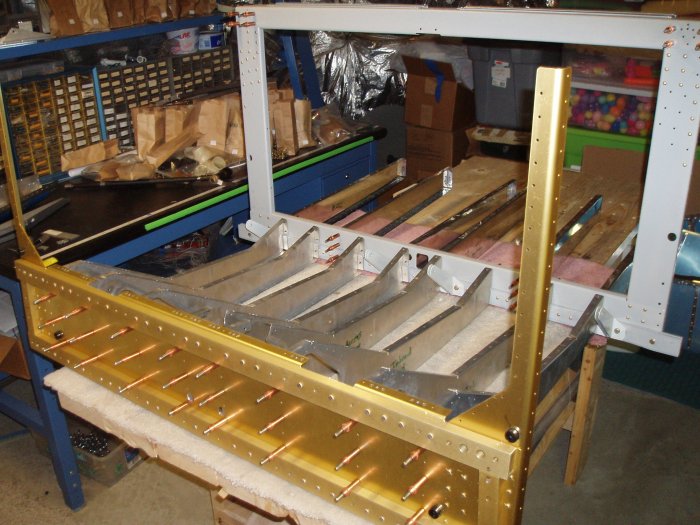

| Then you cleco together the two assemblies. There are center ribs on the side but they are not pre-drilled. I'll clamp and drill them later. | ||||||
|
|
||||||

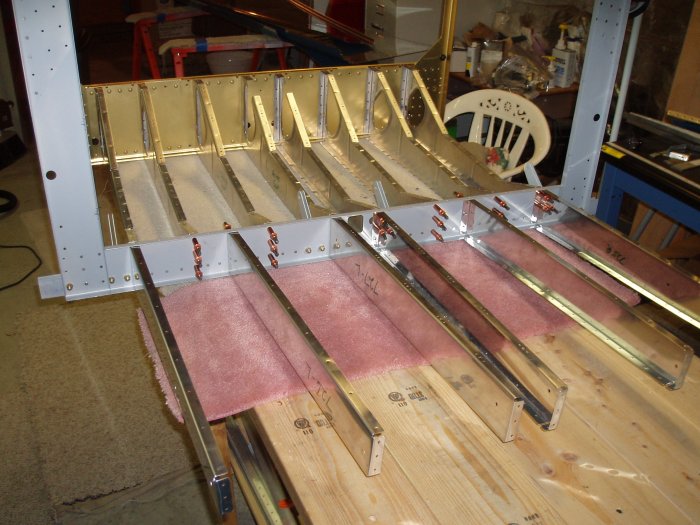

| A view from the rear. I wasn't able to cleco four of the ribs completely because some of the seat-belt bracket bases are too wide and need to be trimmed. Fortunately the brackets are bolted on so I can just remove them for trimming. But not tonight. I've had enough fun for one night. | ||||||
|
|
||||||
