December 5, 2006 - Rivet Canopy Frame |
||||||

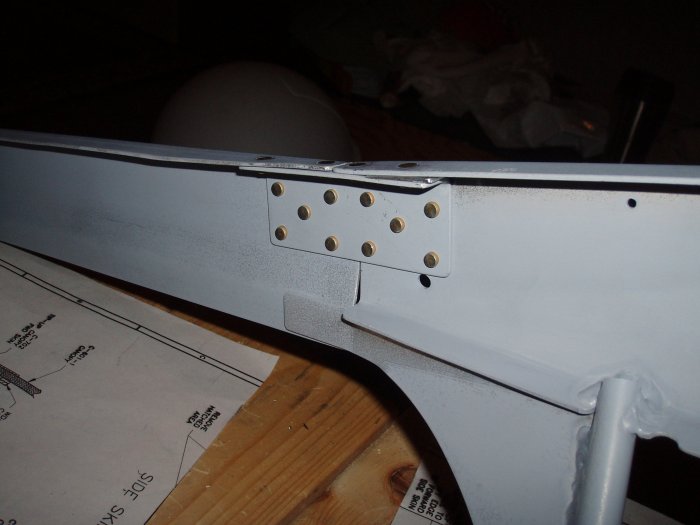

| Riveting the splice-plate to the side weldment. I was able to squeeze all the Canopy Frame rivets using the Main Squeeze. | ||||||
 |
||||||
|

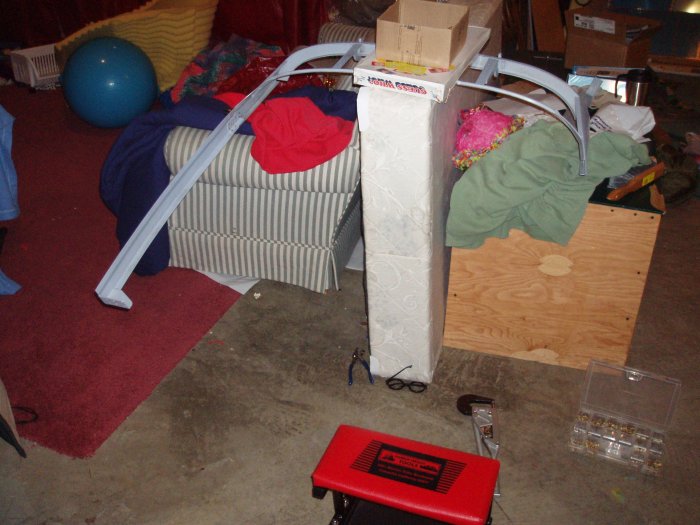

The hardest part in riveting the side weldment to the forward canopy
frame was fixing it in a position I could get to it. I finally
came up with this setup.
|
||||||
 |
||||||
|

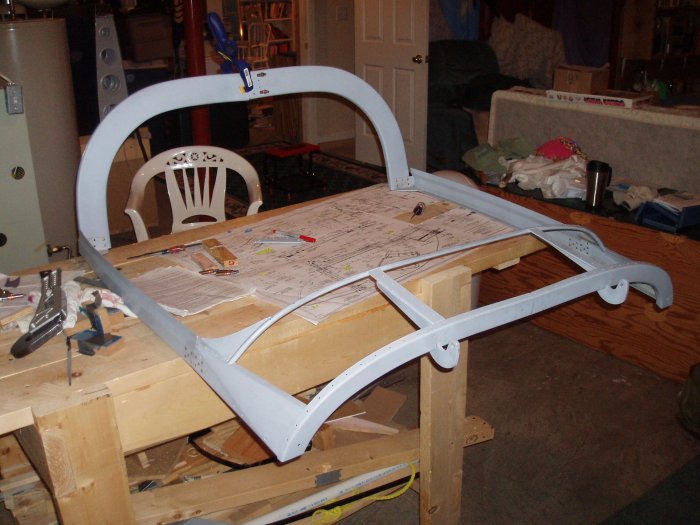

All done. It came out reasonably well I thought.
|
||||||
 |
||||||
| I riveted the aft channels to the side weldments as well. I left the joint between the aft channels unriveted for the time being per the instructions. | ||||||
 |
||||||
