February 7, 2008 - Oil Cooler Hole
I clecoed the oil cooler bracket and
oil cooler to the aft
baffle.
You can see that without the
rectangular hole, the oil cooler wouldn't be too effective.
February 7, 2008 - Oil Cooler Hole |
||||||

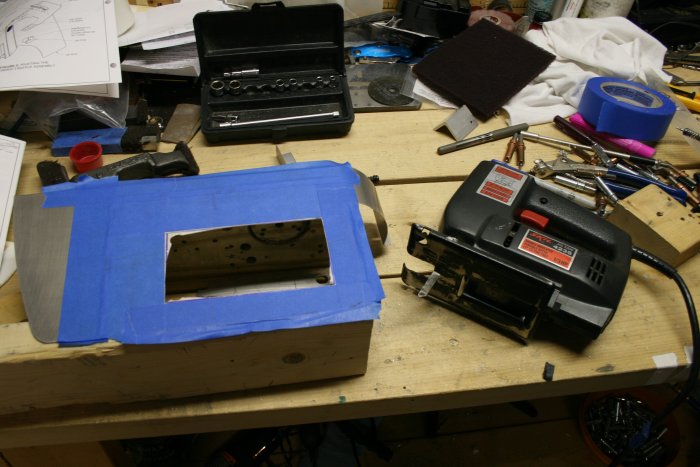

| Back to the #4 baffle. I had to cut a rectangular hole in the aft baffle. The oil cooler is essentially a radiator for the oil. The cooling air needs a way to get to it. With the Unibit, I drilled a 3/4" hole in each corner. Like I did with the Panel, I used a jigsaw to cut out the center. I finished it off with the file. | ||||||
|
|
||||||
|

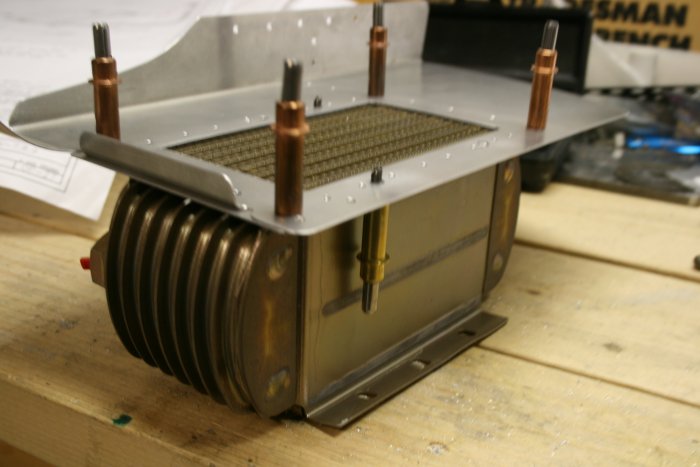

I clecoed the oil cooler bracket and
oil cooler to the aft
baffle.
|
||||||
|
|
||||||
|

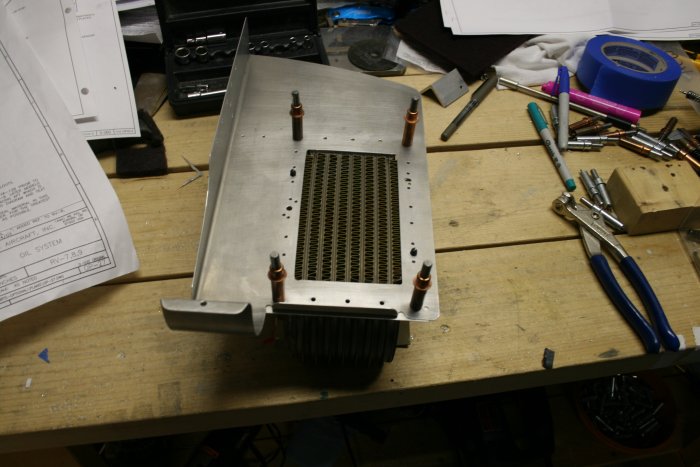

You can see that without the
rectangular hole, the oil cooler wouldn't be too effective.
|
||||||
|
|
||||||
|
|
||||||
