February 4, 2008 - More Baffles |
||||||

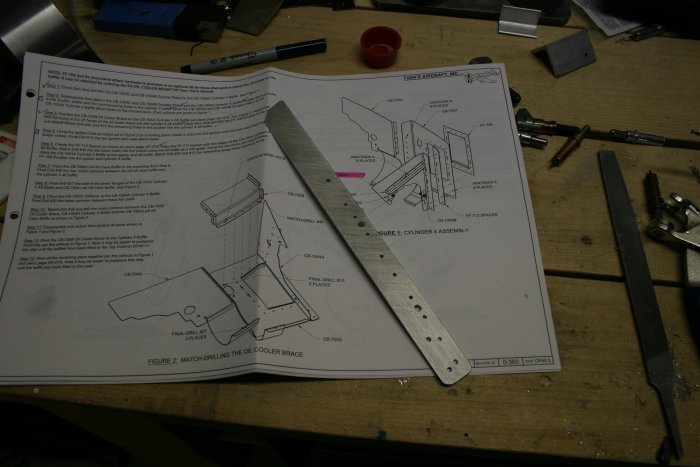

| I match drilled the spacer to the aft baffle, using the aft baffle as a template. | ||||||
|
||||||
|

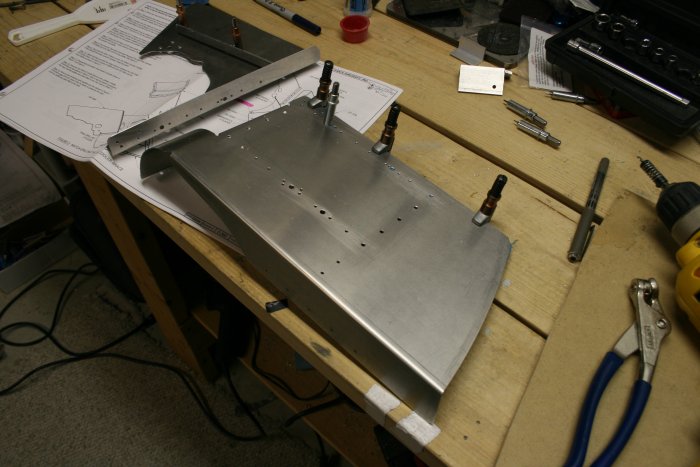

The spacer after
drilling.
|
||||||
|
||||||
|

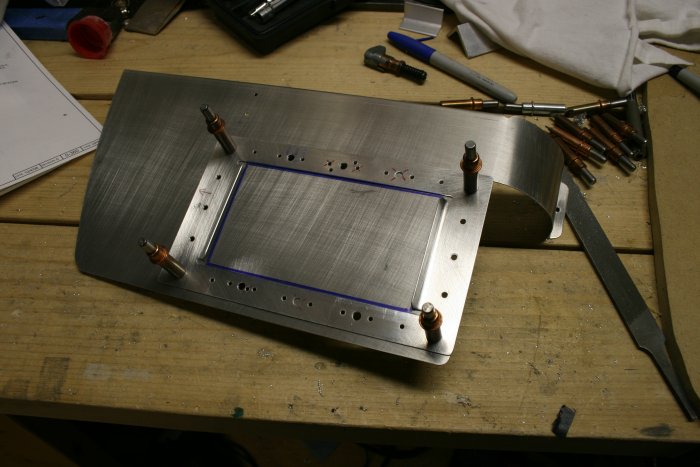

I marked where the aft baffle needs
cutting. It makes sense; without a hole, how is the cooling
air supposed to get to the oil
cooler?
|
||||||
|
||||||

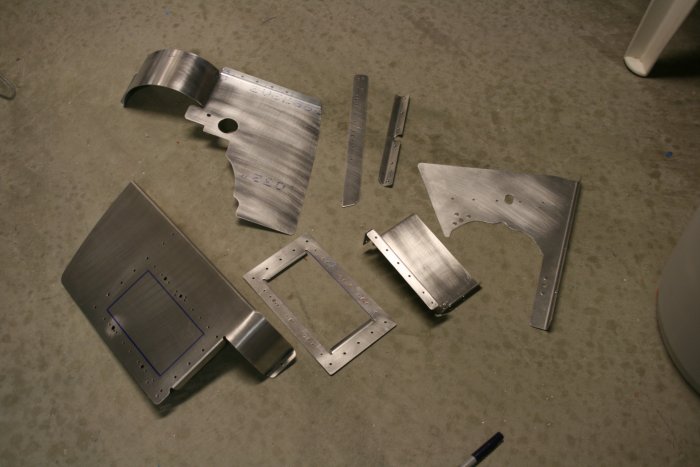

| I edge-smoothed, deburred and scotch-brited all of the #4 cylinder baffle components. After I cut out the rectangular hole in the aft baffle, they are ready for priming. I havn't decided yet if I'll rivet them together before the engine install or not. | ||||||
|
||||||

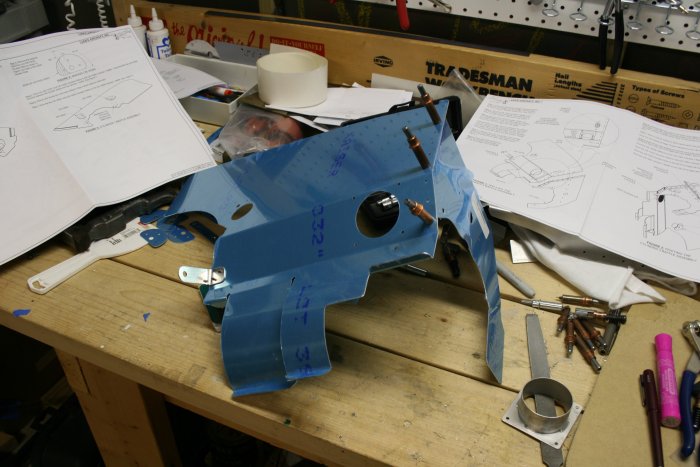

| I gathered the components for the #3 cylinder baffle section and clecoed them together. | ||||||
|
||||||
