February 16, 2008 - Right Wing Tip

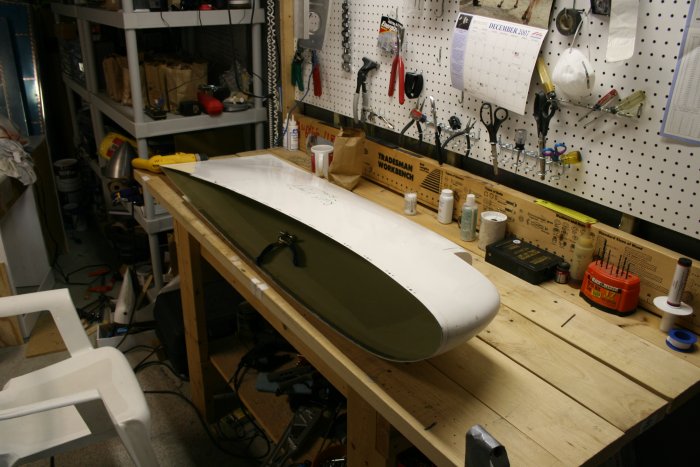

Long, long ago, in a galaxy far, far away, I had drilled the right wingtip to the right wing with #40.

For mounting the wingtips, the instructions give you the option of either pop-riveting or screws/nutplates.  Two years ago I had bought the wingtip mounting kit from Cleaveland Tools.  It has #4 screws so I had to buy a dimple set for them, having had only the #6 and #8 sets.  A few months ago there was a thread about screw size and some had said negative things about the #4 screws.  My Snap-on screwdriver seemed to handle the #4 screws without problem, and since I already had money invested, I decided to stick with them.

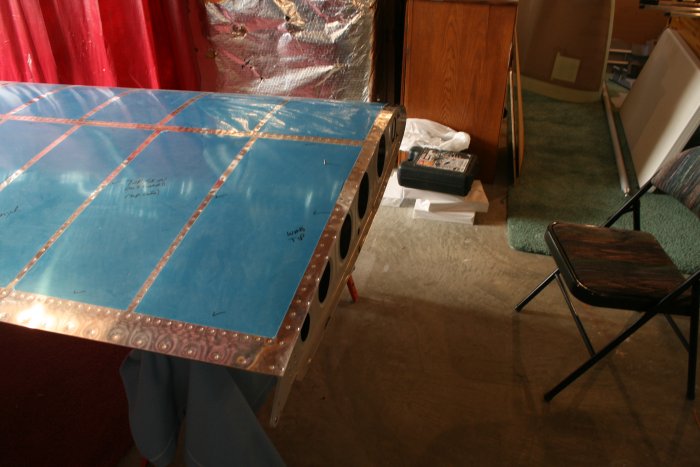

I started out by drilling all the wing-side holes to 7/64 to accept the #4 screws.  Then I deburred and dimpled.

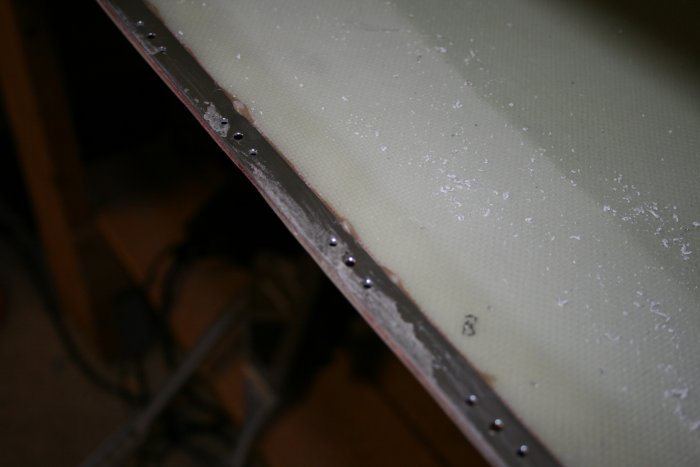

Way back when I had installed aluminum back strips and about 1/3 of the nutplates.  I finished up the rest of the nutplates.

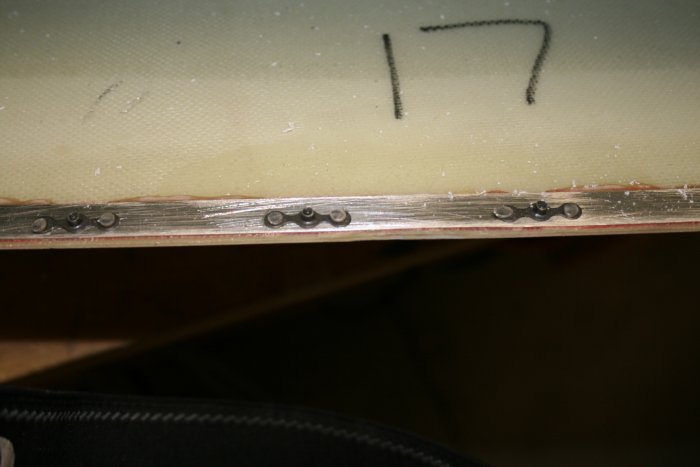

Nut-plate mania.

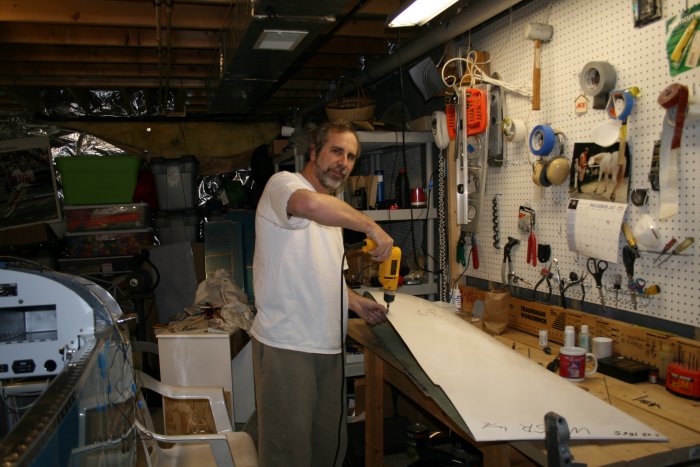

First I drilled the holes, countersunk, deburred ...

Then I squeezed the rivets.

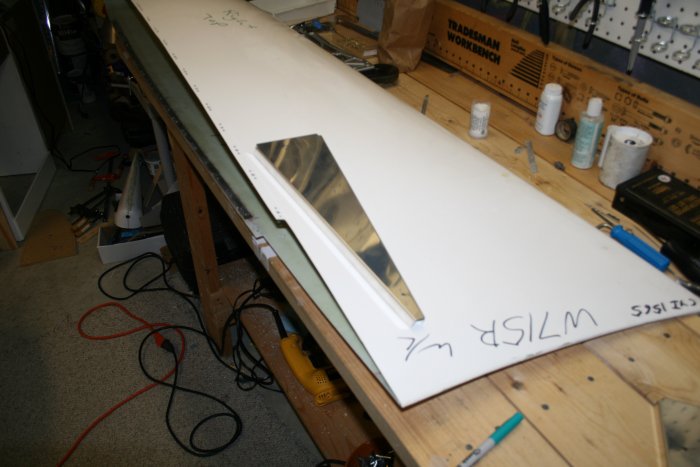

I almost forgot about the wingtip rib!  First thing tomorrow, I'm on it.
