September 2, 2007 - Firewall

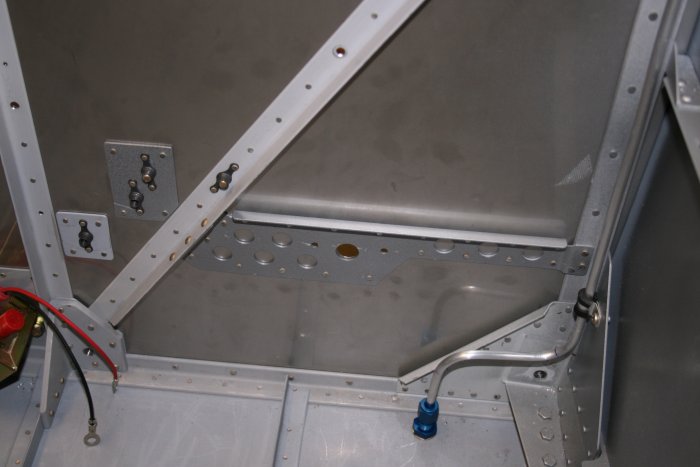

 Lynnette helped me rivet the gasolator reinforcing plate to the firewall.  Easy job with two people.

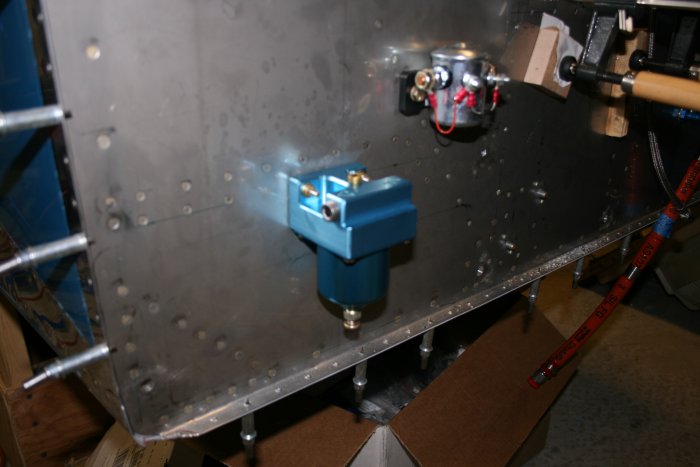

Then I bolted the gasolator to the firewall, hopefully for good.

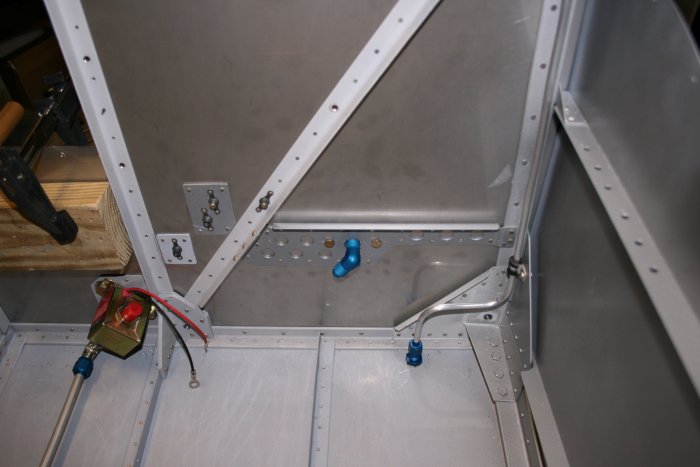

I  temporarily screwed the AN fitting into the gasolator through the firewall.   Yes, you guessed it.  A fuel line will run from the aux fuel pump (lower left) to the gasolator AN fitting.

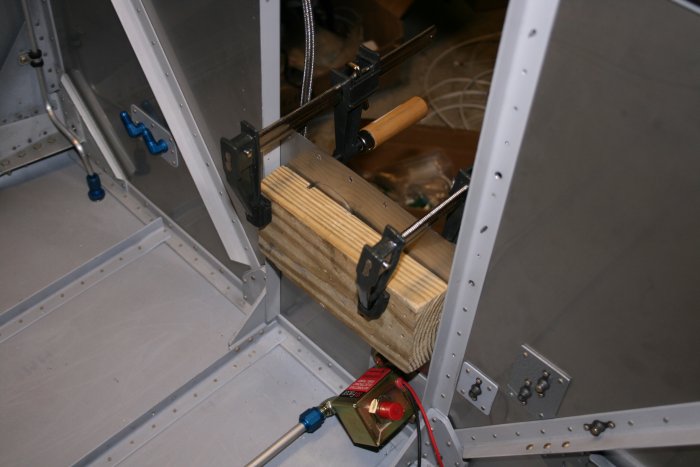

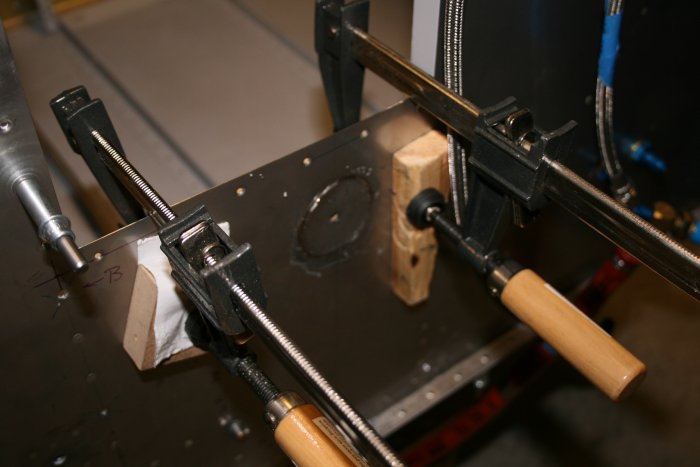

I decided to tackle something I had been putting off for some time.  Yes, it was time to drill the two inch diameter hole for the heat valve.  Drilling a two-inch hole through stainless steel was going to be tough.  I decided to go with the two-inch hole bit.  I used a very slow speed with my Dewalt electric drill and used lots of Boelube.

I took my time an was done in about an hour.

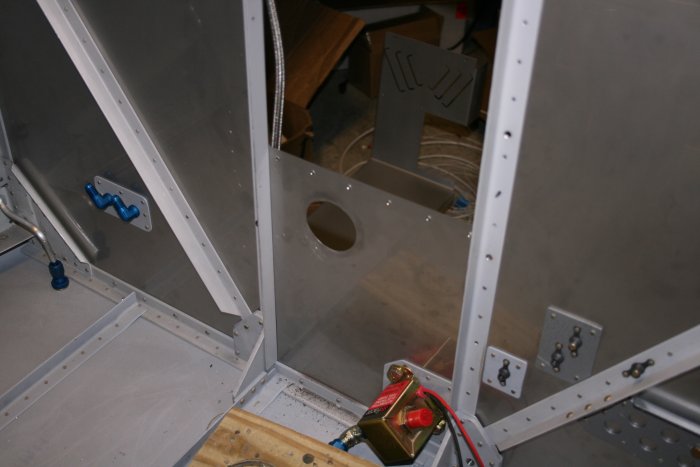

The hole came out very nice.

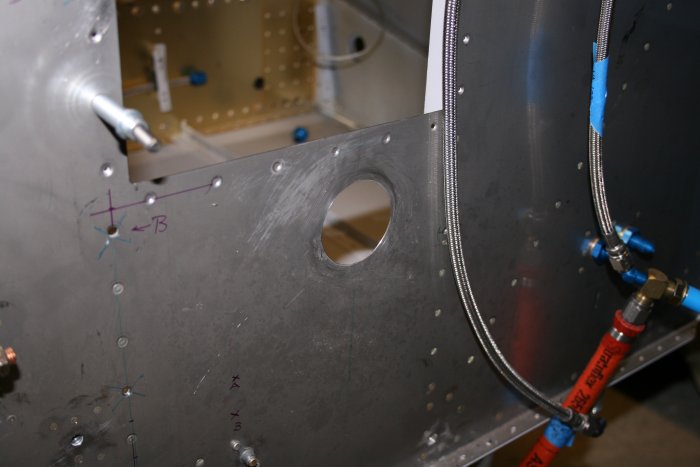

Looking from the front.  It wasn't too bad a job; just took awhile.  Now I have to wait for my heat valve from EPM.EV to show up.

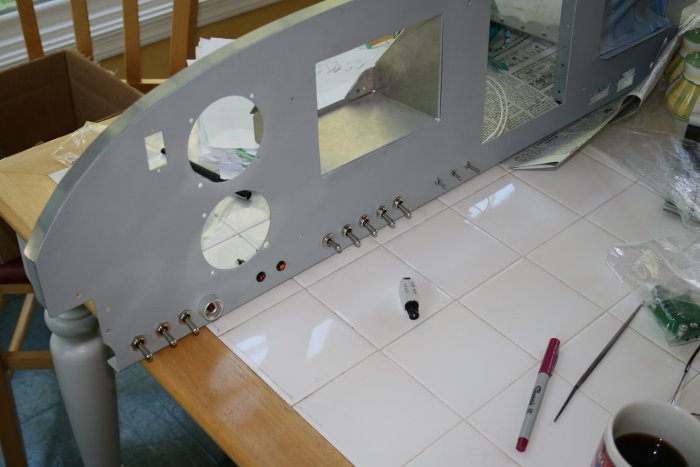

I trial-fitted all my switches and LED indicators to make sure I hadn't missed anything before the panel painting.  Sure enough,   I discovered I had forgot to drill a hole for the 5A Alt Field circuit breaker.  So I drilled a hole under the trim indicator.   The panel is now ready for final painting.
