December 21, 2007 - Firewall PassThrough |
||||||
| I installed the second firewall passthrough. The ignition and engine sensor wires will go through this passthrough. | ||||||
|
||||||
|

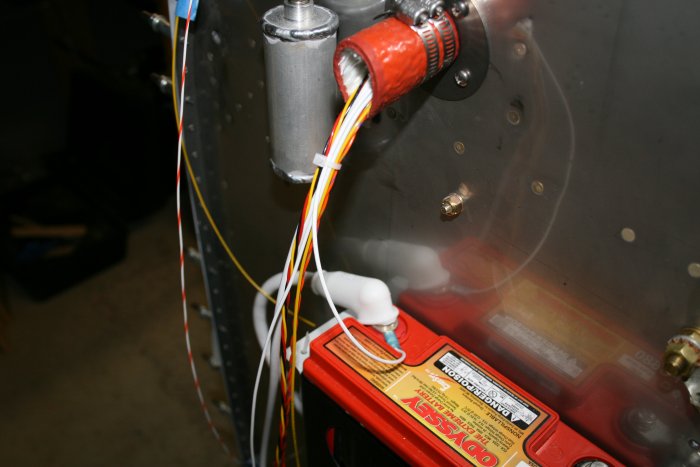

The wire running from the Battery Bus
to the battery was taut so I replaced it with one that had some
slack.
|
||||||
|
||||||
|

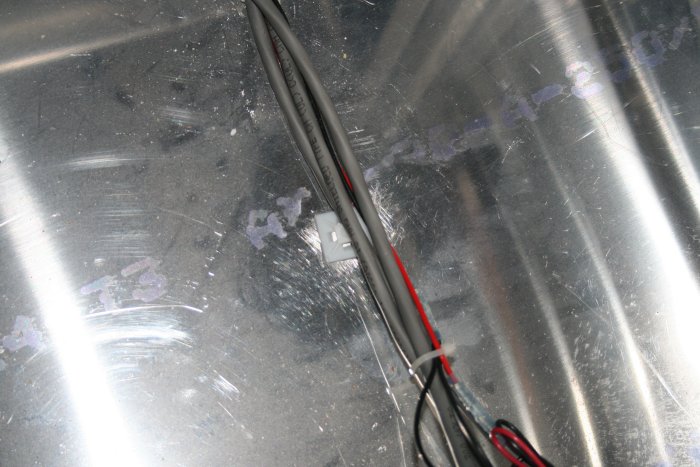

I glued a tie-wrap anchor bracket to
the fuselage floor with the RTV
sealant.
|
||||||
|
||||||

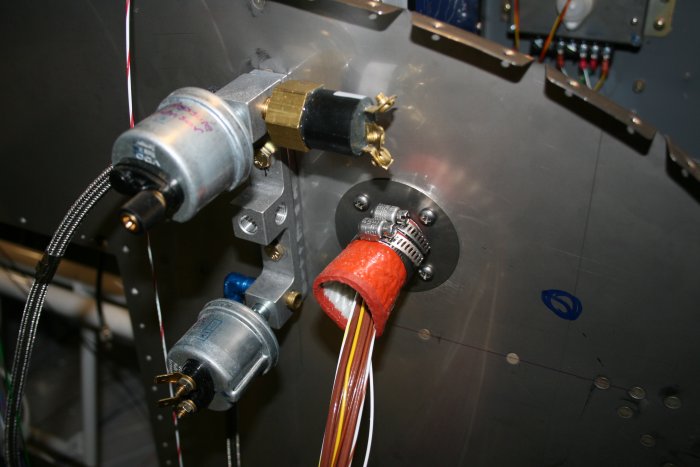

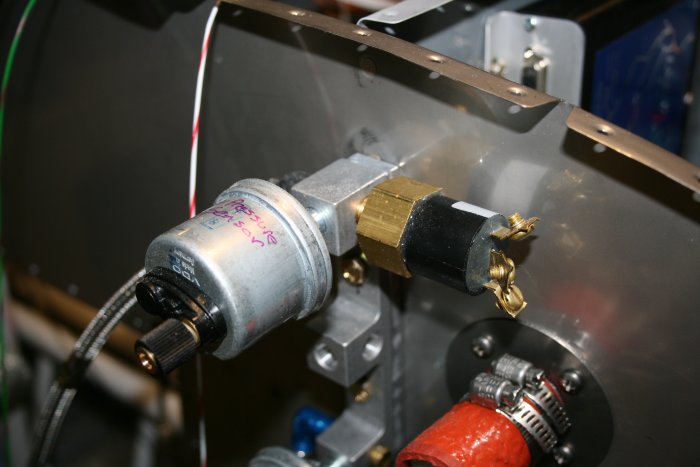

| I moved the oil pressure sensor to the top of the sensor manifold and I screwed the oil pressure switch (for the Hobbs meter) in the side of the manifold. | ||||||
|
||||||

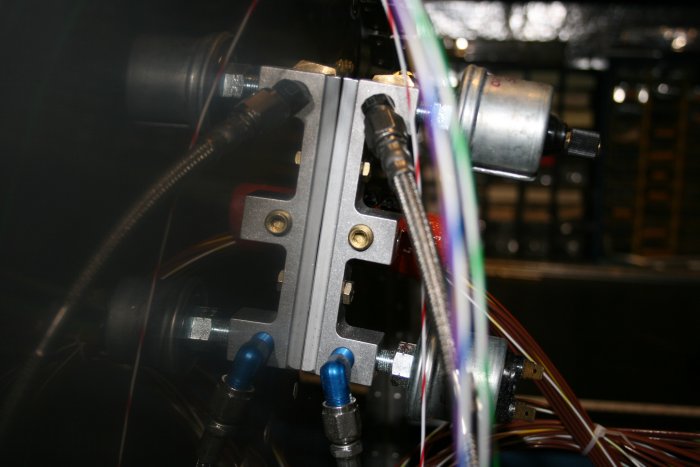

| So that the oil pressure switch would fit on the side, I made a spacer for the manifold from 1/4" stock. This wasn't innovative thinking; I followed a suggestion from the Vans Air Force forum. | ||||||
|
||||||
