December 19, 2007 - Final Wiring

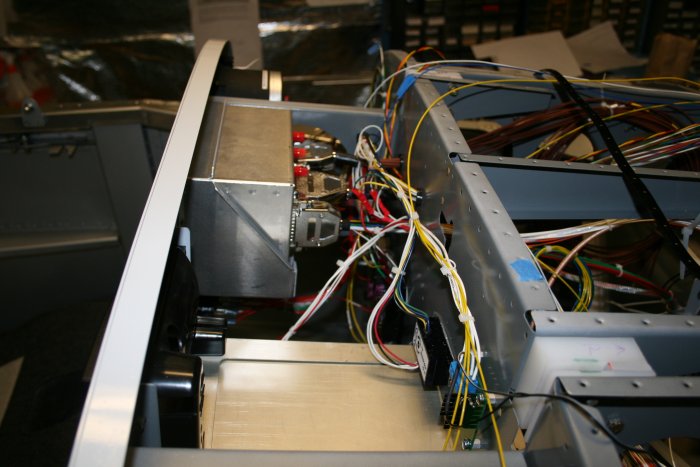

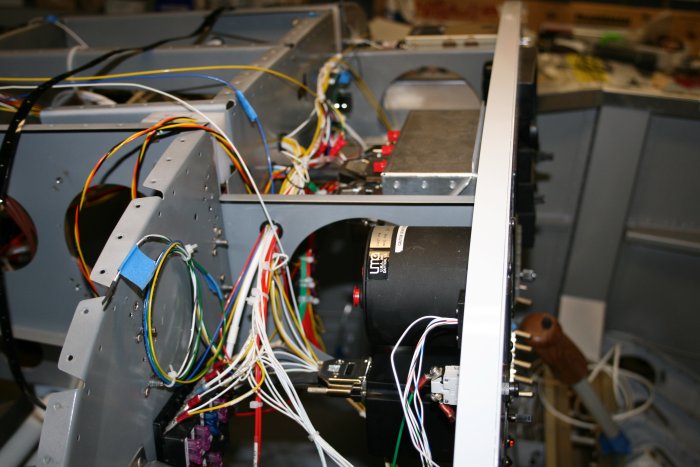

 The wiring after reorganizing is much better.

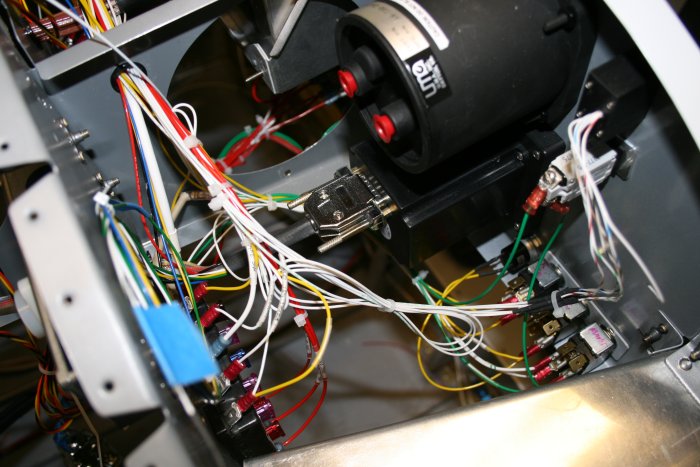

The rats nest behind the switches is gone.  It took me a lot of time and a lot of tie-wraps to get to this point.

I'm pretty much done with the panel wiring now.  There are still the engine ignition and sensor wires left to be done, though.
