May 10, 2007 - Vent Lines to Tank

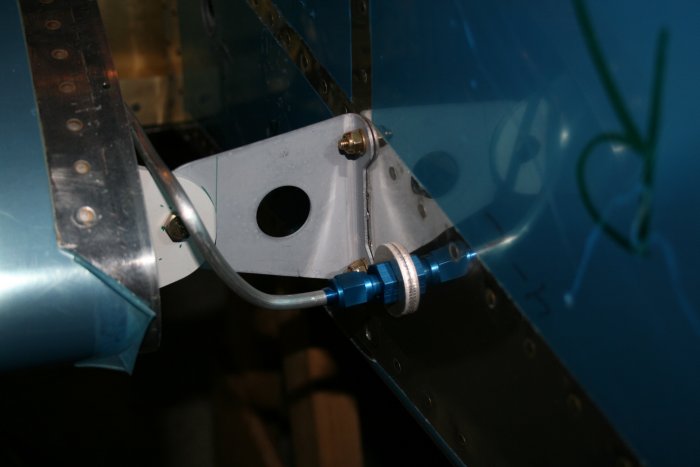

It took a lot of time and effort to be able to take this picture.  This is the fuel vent tubing line that runs from the fuel tank to the fuse bulkhead fitting.

This was really the first time I have worked with the tubing so I practiced for a while on some scrap.  My first two attempts did not work out but on the third I got it.   The left  vent line went pretty quickly.

In this picture I have a large washer on each side of the bulkhead fitting but later I moved both washers on the inside.

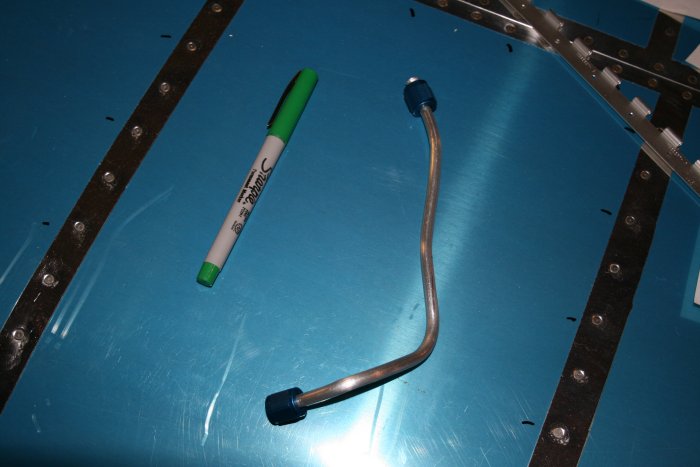

This is what the line looks by itself.

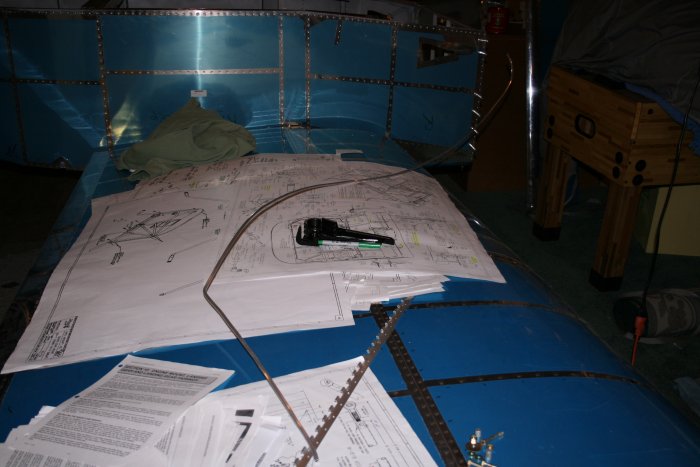

I started on the large fuel vent lines that go in the fuse interior.
