September 30, 2007 - Wiring
I secured the Ground Bus with its 48
terminals to the firewall - cockpit
side.

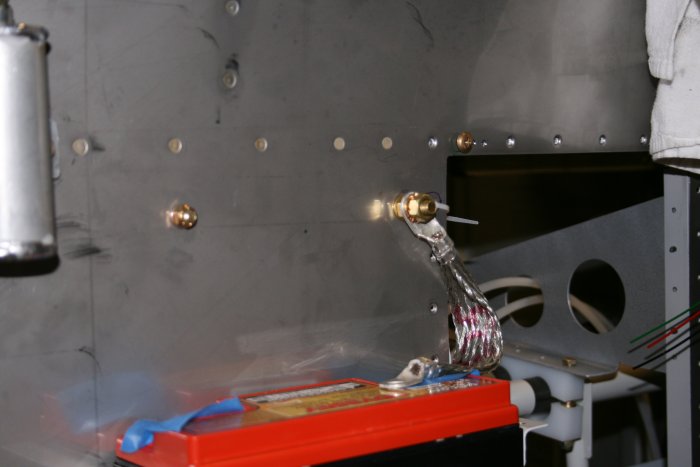

A stud goes through the firewall to
which the battery cable
attaches.
September 30, 2007 - Wiring |
||||||

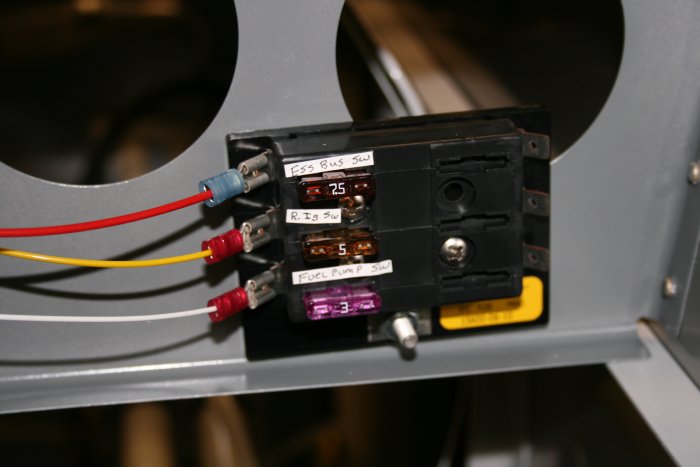

| I started wiring with the wires to the Battery Bus. Here I have wires from the Essential Bus Switch, the Right Ignition Switch and the Fuel Pump switch. Notice the fuses in the Bus. | ||||||
|
|
||||||
|

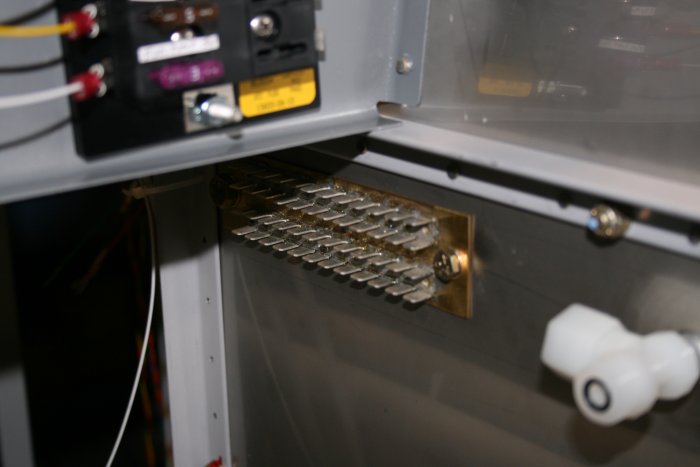

I secured the Ground Bus with its 48
terminals to the firewall - cockpit
side.
|
||||||
|
|
||||||
|
A stud goes through the firewall to
which the battery cable
attaches.
|
||||||
|
|
||||||

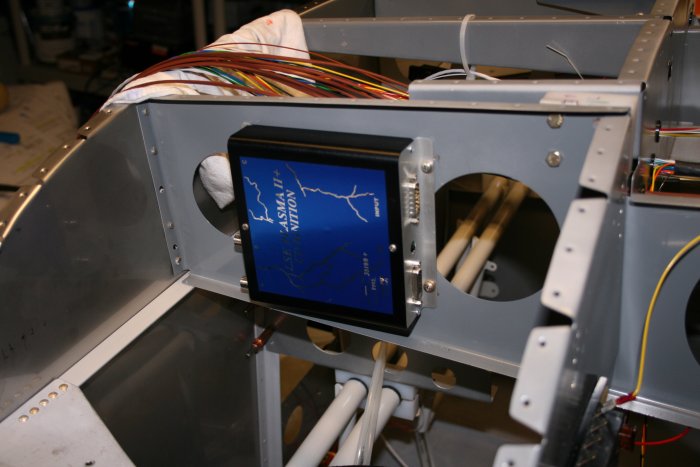

| I mounted the Lightspeed Electronic Ignition computer box on the left rib. | ||||||
|
|
||||||

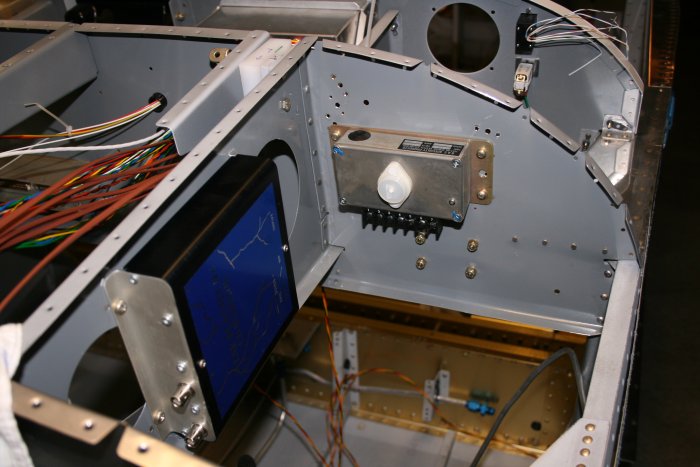

| I mounted the B&C Specialty Products LP-3 Voltage Regulator on the left subpanel. I wanted to put it close to the ignition switches since the majority of the LP-3 wires go there. | ||||||
|
|
||||||
